Comp Cams Viton Valve Seal GM LS1 .313 X .500

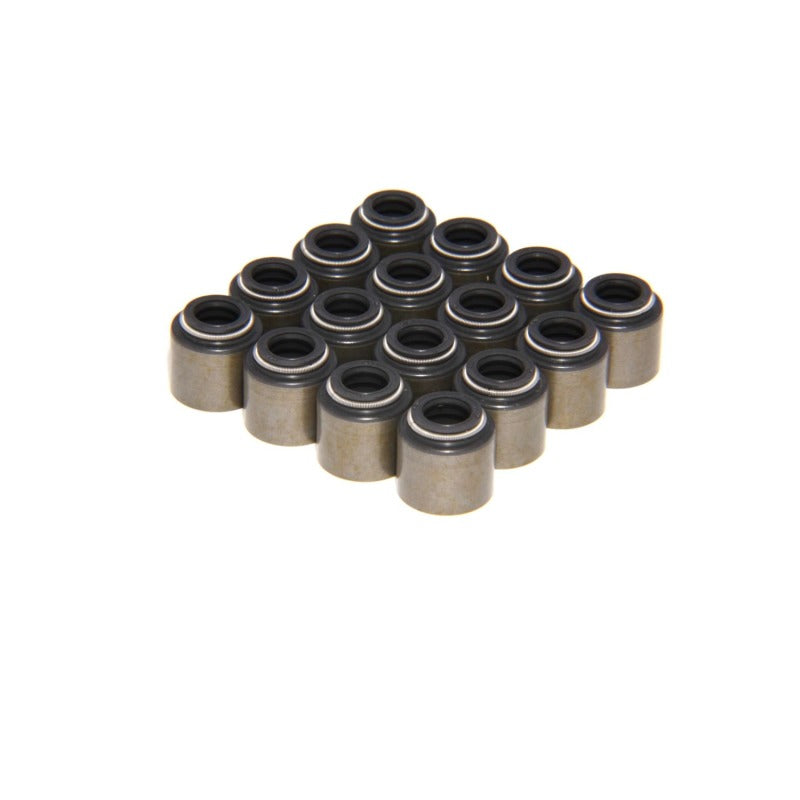

(16) Steel Jacketed Viton Valve Seals
COMP Cams® offers a complete line of valve stem seals, from the stock GM "O-Ring" to the positive-stop PTFE seal. These seals are a must to keep unwanted oil from entering the combustion chamber through the clearance in the valve guides. The "O-Ring" seals use the standard retainer and oil splash shield. The umbrella seal is normally used when a larger-than-stock diameter spring is used, in the case of a double spring, the positive-stop PTFE seal is used. We also have a smaller diameter Viton seal available for triple spring applications. Both the O-Ring and the umbrella seals require no machining, but with the PTFE seal it is necessary to disassemble the heads and machine the top of the guide with a special .500" diameter cutter. Whenever you are planning an engine overhaul or a cam change, don't forget the valve seals--COMP Cams® hasn't!
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2004 - 2007 | Cadillac | CTS | Base, V |
| 1998 | Chevrolet | Camaro | Lujo |
| 1998 - 2002 | Chevrolet | Camaro | Z28, Z28 SS, Base |
| 2003 | Chevrolet | Corvette | 50th Anniversary Edition Pace Car, 50th Anniversary Edition |
| 1997 - 2007 | Chevrolet | Corvette | Base |
| 1998 | Chevrolet | Corvette | Indianapolis 500 Pace Car |
| 2001 - 2007 | Chevrolet | Corvette | Z06 |
| 2006 - 2007 | Chevrolet | Impala | SS, LTZ, Police, LT, LS |
| 2006 - 2007 | Chevrolet | Monte Carlo | LS, LT, SS |
| 2006 | Chevrolet | Monte Carlo | LTZ |
| 2005 - 2006 | Chevrolet | SSR | Base |
| 2006 | Chevrolet | Trailblazer | B, SS, A, LT, LS, Base |
| 1998 - 2002 | Pontiac | Firebird | Trans Am, Base, Formula |
| 2005 - 2007 | Pontiac | Grand Prix | GT, GXP, Base |
| 2005 | Pontiac | Grand Prix | GTP |
| 2004 - 2006 | Pontiac | GTO | Base |
