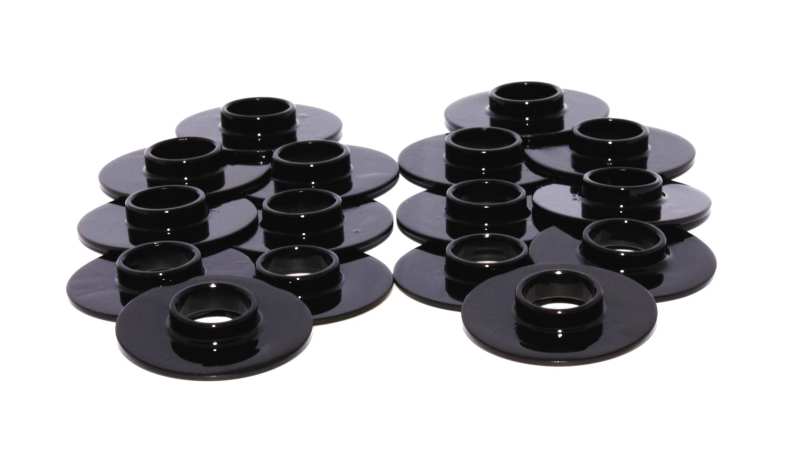

Comp Cams .570 X .810 X 1.550 .040 Thick Id Seat

Spring I.D. Locators: .040" Thick, .570" I.D., 1.550" O.D.

The old standard shims will not hold up to the extreme spring pressures and high RPM in today's race engines. COMP Cams® offers a simple but effective solution to this problem. These Valve Spring Locators provide a thin, hardened steel alloy seat that will not only protect the head and shim, but also locate and hold the spring in place. Previously, this part has been available only in a cup form with the retaining portion being on the outside of the part. This required that the head be machined a great deal to accept this cup so COMP® now offers an I.D. locator with the locating shoulder on the inside, as well as the spring cup.
