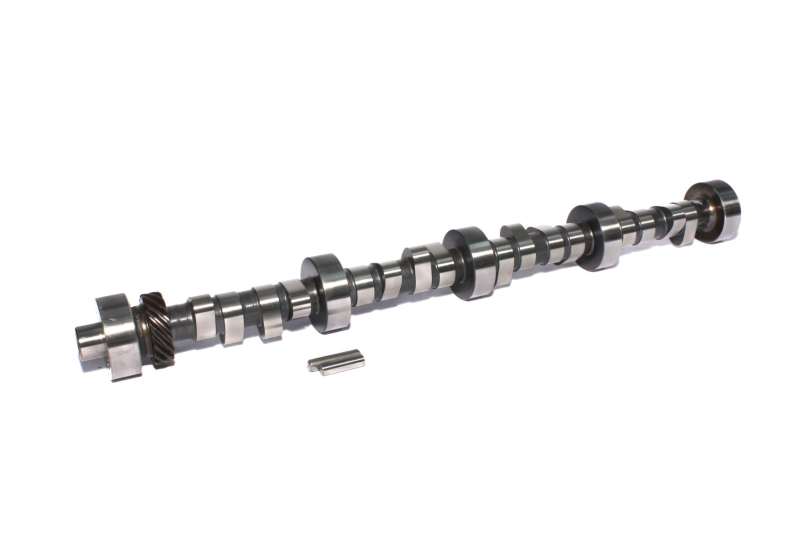

Comp Cams Magnum, 290HR  Street/Strip, Aftermarket Intake, Headers & Converter

Comp Cams Magnum, 290HR  Street/Strip, Aftermarket Intake, Headers & Converter

sku: 06PJC | mpn: 31-452-8
$568.10
$568.10 $568.10
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

⚠️ RACING/COMPETITION Use Only

California: Non-compliant parts may be used only on designated closed-course racing vehicles that are never registered for highway use.

Other: Please consult your local statutes and ordinances to ensure compliance with regional emissions standards.

  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

Magnum, 290HR
Street/Strip, Aftermarket Intake, Headers & Converter

  • Lifter Type: Hydraulic Roller Lifter
  • Engine Family:Ford 289-302 C.I. 8 cyl. 1963-1995
  • Description: Hydraulic Roller-Street / Strip only 4 speed & 4.10 or lower gear. 9:1 comp., aftermarket intake, headers and converter.
  • Cam Family: MagnumT Retro-Fit Hydraulic Roller Camshafts, For engines that DID NOT come from the factory with hydraulic roller cams, NOT FOR E.F.I.

Specification:

  • RPM Range: 3000 to 6500
  • Valve Timing: 0.006
  • Lobe Separation: 110°
  • Intake Centerline: 106°
  • Valve Lash: Hyd. Intake/ Hyd. Exhaust
  • Duration: 290 Intake/ 290 Exhaust
  • Duration @ .050" Lift: 230 Intake/ 230 Exhaust
  • Valve Lift: 0.544 Intake/ 0.544xhaust
  • Lobe Lift: 0.34 Intake/ 0.34 Exhaust
