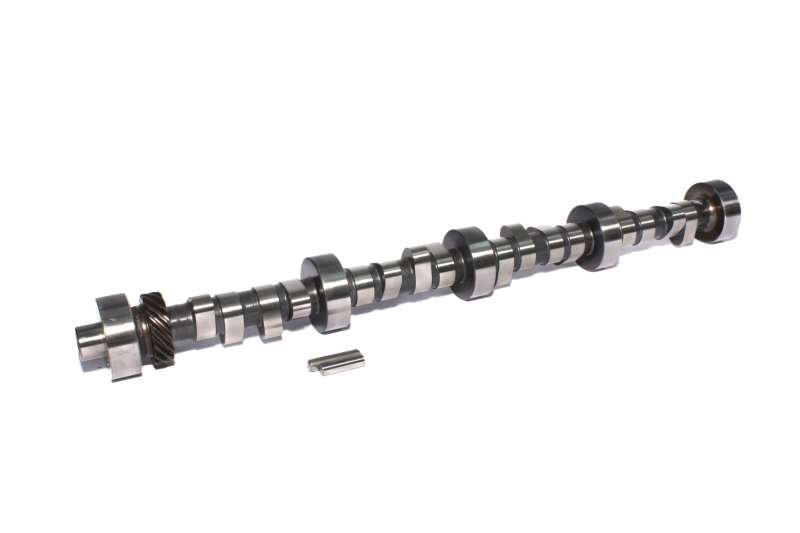

• Comp Cams Magnum 224/224 Hydraulic Roller Cam for Ford 221-302 31-442-8 Photo - Primary
  • Comp Cams Magnum 224/224 Hydraulic Roller Cam for Ford 221-302 31-442-8 Logo Image
1 2
Comp Cams Authorized Dealer

Comp Cams Magnum 224/224 Hydraulic Roller Cam for Ford 221-302

Comp Cams Magnum 224/224 Hydraulic Roller Cam for Ford 221-302

sku: 04MRW | mpn: 31-442-8
$972.95
$549.95 $972.95
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

⚠️ RACING/COMPETITION Use Only

California: Non-compliant parts may be used only on designated closed-course racing vehicles that are never registered for highway use.

Other: Please consult your local statutes and ordinances to ensure compliance with regional emissions standards.

  • Ships Worldwide
  • Easy Returns
  • Fast Shipping
  • 284HR
  • Hydraulic Roller Lifter
  • Hydraulic Roller-Street Machine and limited high performance street use. Best with 4 speed and 3.40-4.10 gears. Aftermarket intake & headers.
  • Ford 289-302 C.I. 8 cyl. 1963-1995
  • Magnum™ Retro-Fit Hydraulic Roller Camshafts, For engines that DID NOT come from the factory with hydraulic roller cams, NOT FOR E.F.I.

Specification

  • RPM Range:2500 to 6000
  • Valve Timing: 0.006
  • Lobe Separation: 110°
  • Intake Centerline: 106°


Intake/ Exhaust

  • Valve Lash : Hyd
  • Duration: 284
  • Duration @ .050" Lift: 224
  • Valve Lift: 0.533
  • Lobe Lift: 0.333
