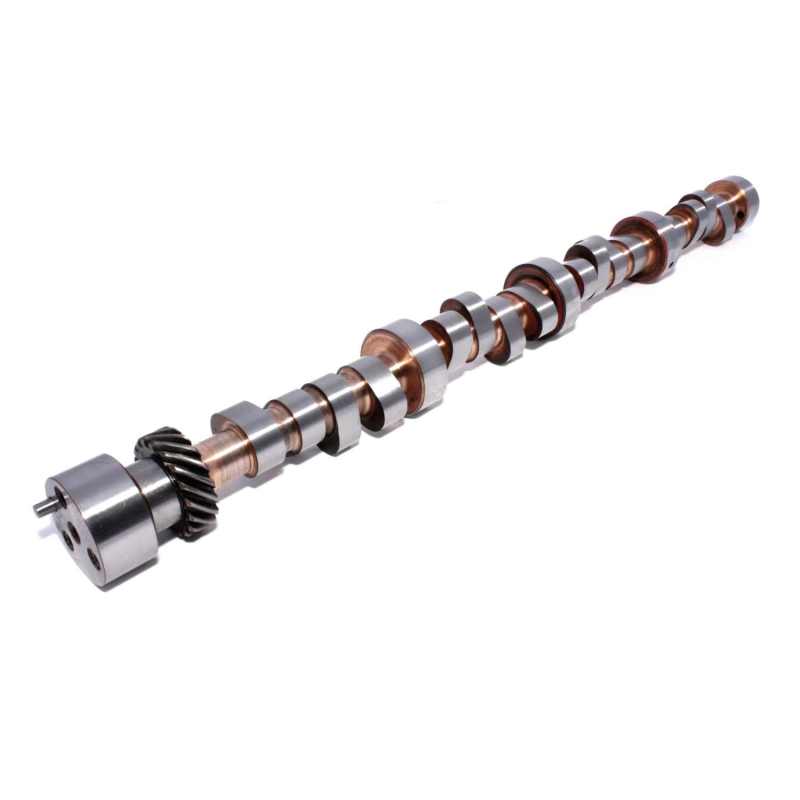

Drag Race RX296R-8; 4000 - 6500 RPM Range
Mechanical (Solid) Roller Camshaft):
Best All Around Bracket Or Super Street Cam.
Best In Light To Medium Weight Car w/ 11:1 Compression.
4200+ Stall In 440.
4500+ Stall In 383.
Specifications
Lifter Type: Solid Roller Lifter
Engine Family: Chrysler 383-440 C.I. 8 CYL. 1959-1980
Cam Family: Drag Race Mechanical Roller Camshafts
RPM Range: 4000 to 6500
Valve Timing: 0.02
Lobe Separation: 108°
Intake Centerline: 108°
Valve Lash: 0.026(Intake)/ 0.026(Exhaust)
Duration: 296(Intake)/ 303(Exhaust)
Duration @ .050" Lift: 263(Intake)/ 270(Exhaust)
Valve Lift: 0.65(Intake)/ 0.651(Exhaust)
Lobe Lift: 0.433(Intake)/ 0.434(Exhaust)
