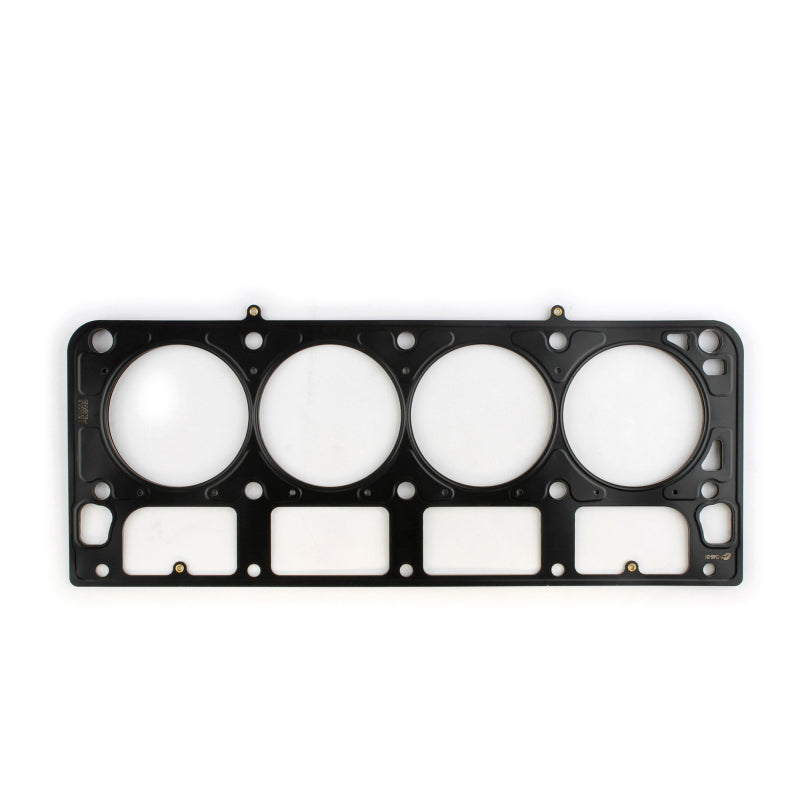

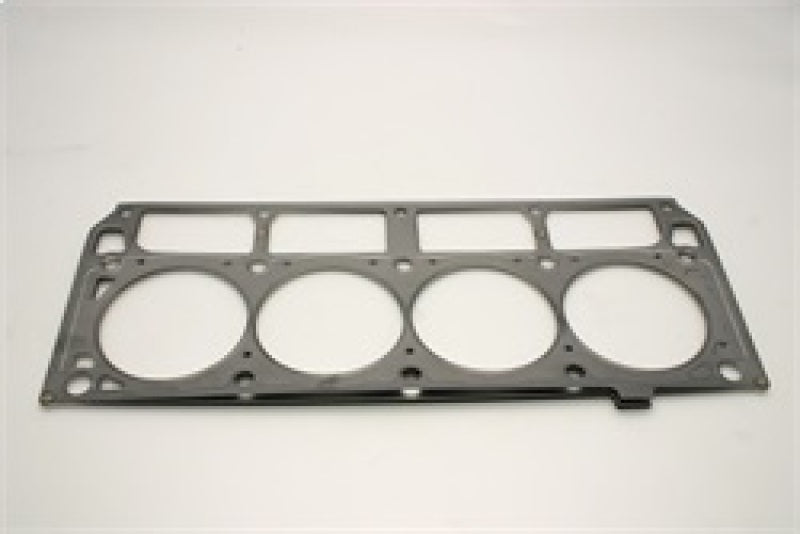

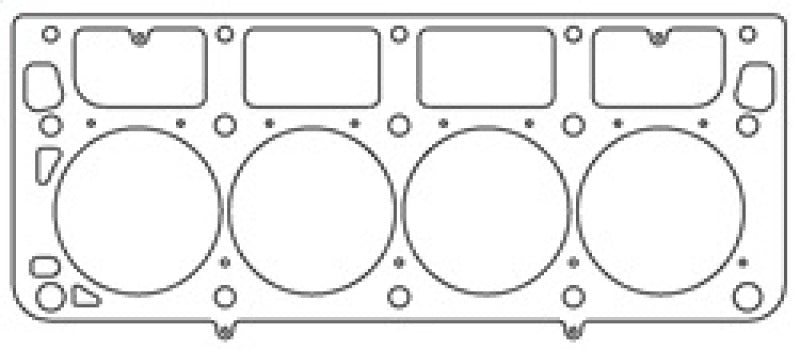

Cometic GM LS1 SB 4.100in Bore .062in MLS-5 Head Gasket C5489-062

Cometic Gasket Head Gaskets C5489-062 COMETIC MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for today's high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flouroelastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements. .062" MLS Cylinder Head Gasket, 4.100" Gasket Bore. Each GM Gen III/IV Small Block V8 LS Series MLS Head Gasket 4.100" Bore.Comprised of mulitple embossed layers of stainless steel with the outer layers utilizing a viton rubber coating.Compressed operating thickness is .062". Each Cometic GM LS1 SB 4.100 inch Bore .062 inch MLS Headgasket

Vehicle Fitments:

Year	Make	Model	Submodel
2001 - 2004	Avanti	II	Base
2012	Cadillac	CTS	3.0L, 3.6L
2011 - 2012	Cadillac	CTS	Coupe
2010 - 2013	Cadillac	CTS	Performance
2009 - 2013	Cadillac	CTS	Premium, Luxury
2013	Cadillac	CTS	V Luxury
2004 - 2013	Cadillac	CTS	V, Base
2010 - 2013	Cadillac	Escalade	Hybrid Platinum
2009 - 2013	Cadillac	Escalade	Hybrid, Platinum, Base
2011 - 2013	Cadillac	Escalade	Premium, Luxury
2012	Cadillac	Escalade	Special Edition
2011 - 2013	Cadillac	Escalade ESV	Luxury, Premium
2009 - 2013	Cadillac	Escalade ESV	Platinum, Base
2012	Cadillac	Escalade ESV	Special Edition
2009 - 2013	Cadillac	Escalade EXT	Base
2011 - 2013	Cadillac	Escalade EXT	Luxury, Premium
2007 - 2013	Chevrolet	Avalanche	Base
2013	Chevrolet	Avalanche	Black Diamond LTZ, Black Diamond LS, Black Diamond LT
2007 - 2012	Chevrolet	Avalanche	LTZ, LS, LT
2002 - 2006	Chevrolet	Avalanche 1500	LT, Base, LS, Z71
2002 - 2003	Chevrolet	Avalanche 1500	North Face, On Road Edition
2003	Chevrolet	Avalanche 1500	WBH
2004 - 2006	Chevrolet	Avalanche 1500	Z66
2011 - 2012	Chevrolet	Camaro	1LT, 1SS, 2SS
1997 - 1998	Chevrolet	Camaro	Lujo
1997	Chevrolet	Camaro	RS
2010 - 2015	Chevrolet	Camaro	SS, LS, LT
2014 - 2015	Chevrolet	Camaro	Z/28
1998 - 2002	Chevrolet	Camaro	Z28 SS
1997 - 2002	Chevrolet	Camaro	Z28, Base
2012 - 2015	Chevrolet	Camaro	ZL1
2009 - 2012	Chevrolet	Colorado	Base, LT, WT
2008	Chevrolet	Corvette	427 Limited Edition Z06
2013	Chevrolet	Corvette	427, LT
2003	Chevrolet	Corvette	50th Anniversary Edition, 50th Anniversary Edition Pace Car
1997 - 2013	Chevrolet	Corvette	Base
2010 - 2013	Chevrolet	Corvette	Grand Sport
1998	Chevrolet	Corvette	Indianapolis 500 Pace Car
2001 - 2013	Chevrolet	Corvette	Z06
2011	Chevrolet	Corvette	Z06 Carbon
2014	Chevrolet	Corvette	Z51, Stingray
2009 - 2013	Chevrolet	Corvette	ZR1
2003 - 2007	Chevrolet	Express 2500	LS, Base
2006 - 2007	Chevrolet	Express 2500	LT
2005 - 2007	Chevrolet	Express 3500	Base, LS
2006 - 2007	Chevrolet	Express 3500	LT
2002	Chevrolet	Silverado 1500	Custom
2004 - 2013	Chevrolet	Silverado 1500	Hybrid
1999 - 2013	Chevrolet	Silverado 1500	LT, Base, LS
2007 - 2013	Chevrolet	Silverado 1500	LTZ
2003 - 2006	Chevrolet	Silverado 1500	SS
2002 - 2013	Chevrolet	Silverado 1500	WT
2010 - 2013	Chevrolet	Silverado 1500	XFE
2004	Chevrolet	Silverado 1500	Z71
2007	Chevrolet	Silverado 1500 Classic	LT, Hybrid, WT, LS, SS
2003 - 2004	Chevrolet	Silverado 2500	400 SS
1999 - 2004	Chevrolet	Silverado 2500	Base, LT, LS
2004	Chevrolet	Silverado 2500	WT
2014 - 2017	Chevrolet	SS	Base
2003 - 2006	Chevrolet	SSR	Base
2000 - 2012	Chevrolet	Suburban 1500	Base
2000 - 2013	Chevrolet	Suburban 1500	LT, LS
2006 - 2013	Chevrolet	Suburban 1500	LTZ
2004 - 2007	Chevrolet	Suburban 1500	Z71
2000 - 2012	Chevrolet	Tahoe	Base
2008 - 2013	Chevrolet	Tahoe	Hybrid
2000	Chevrolet	Tahoe	Limited
2000 - 2013	Chevrolet	Tahoe	LS, LT
2007 - 2013	Chevrolet	Tahoe	LTZ
2012 - 2013	Chevrolet	Tahoe	PPV, SSV
2000 - 2009	Chevrolet	Tahoe	Z71
2006 - 2007	Chevrolet	Trailblazer	A, LS, B
2006 - 2008	Chevrolet	Trailblazer	Base
2006 - 2009	Chevrolet	Trailblazer	SS, LT
2003 - 2006	Chevrolet	Trailblazer EXT	LT, LS
2003 - 2004	Chevrolet	Trailblazer EXT	North Face
2009 - 2012	GMC	Canyon	SLT, Base, WT, SLE
2005 - 2009	GMC	Envoy	SLE, Denali, SLT
2005 - 2006	GMC	Envoy XL	Denali
2003 - 2006	GMC	Envoy XL	SLT, SLE
2004 - 2005	GMC	Envoy XUV	SLT, SLE
2003 - 2007	GMC	Savana 1500	Base
2006 - 2007	GMC	Savana 1500	LT, LS
2003 - 2005	GMC	Savana 1500	SLE
2003 - 2007	GMC	Savana 2500	Base
2007	GMC	Savana 2500	LT, LS
2003 - 2005	GMC	Savana 2500	SLE
2004 - 2007	GMC	Savana 3500	Base
2006 - 2007	GMC	Savana 3500	LS, LT
2004 - 2005	GMC	Savana 3500	SLE
2001	GMC	Sierra 1500	C3
2002 - 2014	GMC	Sierra 1500	Denali, Base
2002	GMC	Sierra 1500	HT
2005 - 2013	GMC	Sierra 1500	Hybrid
1999 - 2013	GMC	Sierra 1500	SL
1999 - 2014	GMC	Sierra 1500	SLE, SLT
2002 - 2013	GMC	Sierra 1500	WT
2010 - 2013	GMC	Sierra 1500	XFE
2007	GMC	Sierra 1500 Classic	SLT, Hybrid, SLE, Denali, SL, WT
1999 - 2000	GMC	Sierra 2500	SLT, SLE, SL
2007 - 2012	GMC	Yukon	Base
2010 - 2013	GMC	Yukon	Denali Hybrid
2008 - 2013	GMC	Yukon	Hybrid
2006	GMC	Yukon	SL
2000 - 2014	GMC	Yukon	SLT, SLE, Denali
2001 - 2014	GMC	Yukon XL 1500	Denali
2006	GMC	Yukon XL 1500	SL
2000 - 2014	GMC	Yukon XL 1500	SLT, SLE
2009	Hummer	H2	Base, Luxury, Adventure
1997 - 2002	Pontiac	Firebird	Formula, Trans Am, Base
2009	Pontiac	G8	GXP, GT, Base
2004 - 2006	Pontiac	GTO	Base
