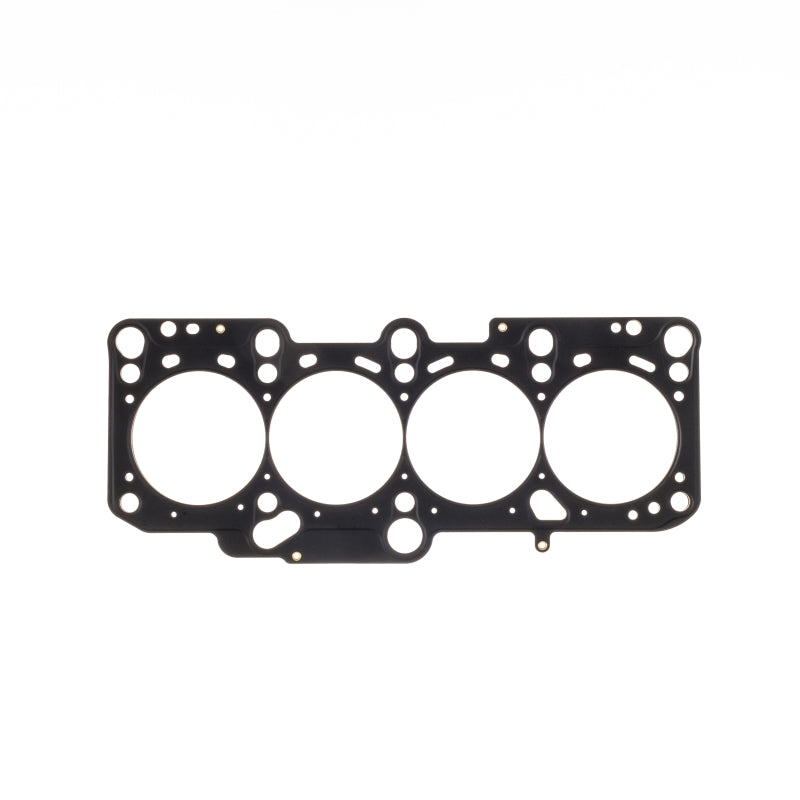

Cometic Gasket Cometic VW/Audi 1.8L 20V Turbo EA827 85mm .036 inch MLS Head Gasket C4559-036
CG Head Gaskets
Engine Cylinder Head Gasket
Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.036". World Products Man-o-War Block. Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.
Volkswagen 1.8L 20v T EA827 .036\" MLS Cylinder Head Gasket, 85mm Bore
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1998 - 2005 | Audi | A4 | Avant |
| 1998 - 2006 | Audi | A4 | Base |
| 2001 | Audi | A4 | Basico, Avant Luxury, Avant Confort, Sport |
| 2001 - 2004 | Audi | A4 | Confort |
| 2006 | Audi | A4 | Limited Edition |
| 2001 - 2006 | Audi | A4 | Luxury |
| 2004 - 2006 | Audi | A4 | S Line |
| 2005 - 2006 | Audi | A4 | S Line Sport, Elite, Trendy |
| 2003 - 2006 | Audi | A4 | Vangard, Cabrio, Cabriolet |
| 1998 - 2006 | Audi | A4 Quattro | Avant, Base |
| 2004 - 2006 | Audi | A4 Quattro | Cabriolet |
| 2001 | Audi | A4 Quattro | Confort |
| 2006 | Audi | A4 Quattro | DTM, Vangard |
| 2005 - 2006 | Audi | A4 Quattro | Elite, S Line |
| 2002 | Audi | A4 Quattro | Le Mans |
| 2002 - 2005 | Audi | A4 Quattro | Luxury |
| 2000 - 2006 | Audi | TT | Base |
| 2006 | Audi | TT | Classic Edition |
| 2005 - 2006 | Audi | TT | Sport |
| 2002 | Audi | TT Quattro | ALMS Edition |
| 2000 - 2006 | Audi | TT Quattro | Base |
| 2003 - 2006 | Audi | TT Quattro | S Line |
| 2006 | Audi | TT Quattro | Special Edition |
| 2003 - 2005 | Volkswagen | Beetle | Cabrio |
| 1999 - 2005 | Volkswagen | Beetle | GL, GLS |
| 2003 | Volkswagen | Beetle | GLS Sport, GLS Edicion especial |
| 2005 | Volkswagen | Beetle | GLS TDI |
| 1999 - 2004 | Volkswagen | Beetle | GLX |
| 2001 - 2005 | Volkswagen | Beetle | GLX Sport Turbo |
| 2000 - 2001 | Volkswagen | Beetle | GLX Turbo, GLS Turbo |
| 1999 | Volkswagen | Beetle | Lujo, Base |
| 2001 - 2002 | Volkswagen | Beetle | Sport |
| 2002 - 2005 | Volkswagen | Beetle | Turbo S, GLS Sport Turbo |
| 2000 - 2003 | Volkswagen | Golf | Base |
| 2003 - 2005 | Volkswagen | Golf | Comfortline, Trendline |
| 2003 - 2006 | Volkswagen | Golf | Europa |
| 2004 | Volkswagen | Golf | GL TDI |
| 2004 - 2006 | Volkswagen | Golf | GLS TDI |
| 2000 - 2006 | Volkswagen | Golf | GLS, GL |
| 2000 - 2005 | Volkswagen | Golf | GTI |
| 2002 - 2006 | Volkswagen | Golf | GTI 1.8T |
| 2003 | Volkswagen | Golf | GTI 20th Anniversary |
| 2002 | Volkswagen | Golf | GTI 337 |
| 2000 - 2001 | Volkswagen | Golf | GTI GLX, GTI GLS |
| 2001 - 2003 | Volkswagen | Golf | GTI Turbo |
| 2002 - 2005 | Volkswagen | Golf | GTI VR6 |
| 2000 - 2002 | Volkswagen | Golf | Lujo, Confort, Verano |
| 2005 | Volkswagen | Golf | TDI |
| 2004 - 2005 | Volkswagen | Jetta | Comfortline |
| 2004 | Volkswagen | Jetta | Europa 50 Aniversario, GLI 50 Aniversario |
| 2000 - 2002 | Volkswagen | Jetta | GL Confort, GLX VR6 |
| 2005 | Volkswagen | Jetta | GL TDI, Limited Edition, GLS TDI, 2.5, Special Edition, Summer Edition |
| 2001 | Volkswagen | Jetta | GL Variant, GLS Wolfsburg, GLS Variant |
| 2000 - 2005 | Volkswagen | Jetta | GL, GLS, TDI |
| 2002 - 2005 | Volkswagen | Jetta | GLI, Trendline, Europa, Sportline |
| 2000 - 2001 | Volkswagen | Jetta | GLS Turbo |
| 2000 | Volkswagen | Jetta | GLS VR6 |
| 2000 - 2003 | Volkswagen | Jetta | GLX |
| 2003 | Volkswagen | Jetta | Jazz, Trendline Wolfsburg, Europa Wolfsburg, Edicion Limitada |
| 2002 - 2003 | Volkswagen | Jetta | Variant Comfortline, Variant Trendline, Confortline, Highline |
| 2001 - 2003 | Volkswagen | Jetta | Wolfsburg Edition |
| 1999 - 2005 | Volkswagen | Passat | 1.8T, V6 |
| 2000 | Volkswagen | Passat | 4 Motion |
| 2003 - 2005 | Volkswagen | Passat | GL |
| 2004 - 2005 | Volkswagen | Passat | GL TDI, GLS TDI |
| 2001 - 2005 | Volkswagen | Passat | GLS 4 Motion, GLX 4 Motion |
| 1998 - 2005 | Volkswagen | Passat | GLX, GLS |
| 2002 - 2005 | Volkswagen | Passat | V6 4Motion |
| 2002 - 2004 | Volkswagen | Passat | W8 |
