Cometic Gasket Cometic Chevrolet Gen-1 Small Block V8 BRODIX BD2000 Heads 4.030in Bore .027in MLS Head Gasket C5404-027
CG Head Gaskets
Engine Cylinder Head Gasket
Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.036". World Products Man-o-War Block. Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

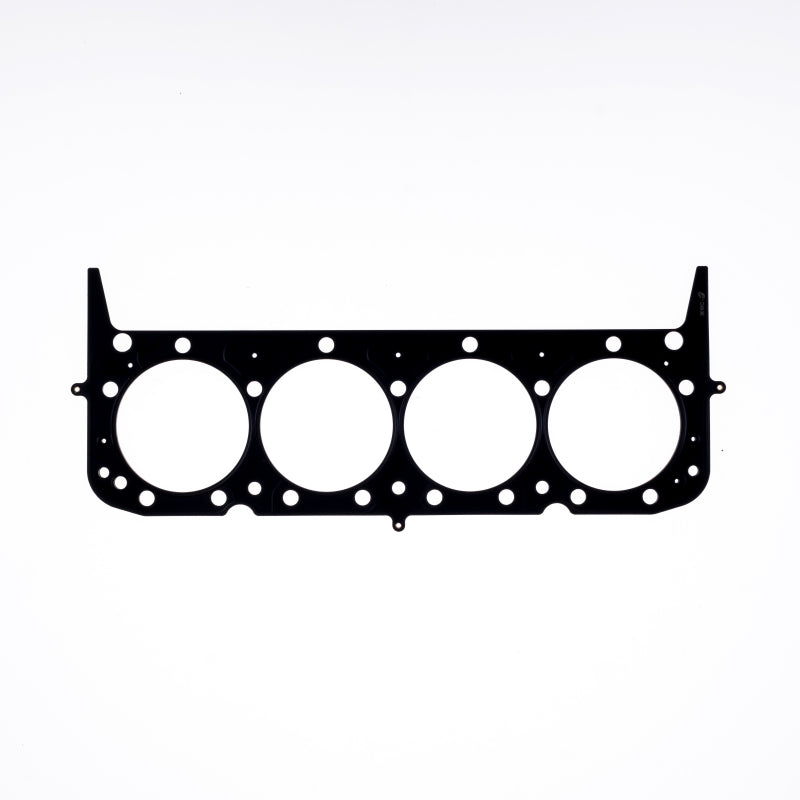

Chevrolet Gen-1 Small Block V8 .027" MLS Cylinder Head Gasket, 4.030" Bore, Brodix BD2000 Head.
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1980 - 1985 | Avanti | II | Base |
| 1985 | Avanti | II | GT |
| 1980 - 1981 | Buick | Century | Base, Limited, Estate, Sport |
| 1982 | Buick | LeSabre | Custom, Limited, Limited Edition F/E |
| 1982 - 1983 | Buick | Regal | Estate Wagon |
| 1984 - 1986 | Buick | Regal | Grand National |
| 1982 | Buick | Regal | Limited Turbo |
| 1980 - 1986 | Buick | Regal | Limited, Base |
| 1980 - 1982 | Buick | Regal | Sport |
| 1983 - 1986 | Buick | Regal | T-Type |
| 1985 | Buick | Somerset Regal | Limited, Base |
| 1980 - 1982 | Checker | Marathon | Deluxe, Base |
| 1980 | Chevrolet | C10 | Big Ten, Custom Deluxe |
| 1980 - 1981 | Chevrolet | C10 | Cheyenne |
| 1981 | Chevrolet | C10 | Deluxe |
| 1980 - 1986 | Chevrolet | C10 | Silverado, Scottsdale, Custom |
| 1981 - 1986 | Chevrolet | C10 Suburban | Custom |
| 1980 | Chevrolet | C10 Suburban | Custom Deluxe |
| 1981 | Chevrolet | C10 Suburban | Deluxe |
| 1980 - 1986 | Chevrolet | C10 Suburban | Silverado, Scottsdale |
| 1986 | Chevrolet | C20 | Base |
| 1981 - 1986 | Chevrolet | C20 | Custom |
| 1980 | Chevrolet | C20 | Custom Deluxe |
| 1981 | Chevrolet | C20 | Deluxe |
| 1980 - 1986 | Chevrolet | C20 | Silverado, Cheyenne, Scottsdale |
| 1981 - 1986 | Chevrolet | C20 Suburban | Custom |
| 1980 | Chevrolet | C20 Suburban | Custom Deluxe |
| 1981 | Chevrolet | C20 Suburban | Deluxe |
| 1980 - 1986 | Chevrolet | C20 Suburban | Scottsdale, Silverado |
| 1980 - 1982 | Chevrolet | C30 | Base |
| 1980 - 1981 | Chevrolet | C30 | Cheyenne |
| 1981 - 1986 | Chevrolet | C30 | Custom |
| 1980 | Chevrolet | C30 | Custom Deluxe |
| 1981 | Chevrolet | C30 | Deluxe |
| 1980 - 1986 | Chevrolet | C30 | Silverado, Scottsdale |
| 1980 - 1986 | Chevrolet | Camaro | Berlinetta, Z28 |
| 1985 - 1986 | Chevrolet | Camaro | Iroc-Z |
| 1980 | Chevrolet | Camaro | Rally Sport, Base |
| 1981 - 1986 | Chevrolet | Camaro | Sport |
| 1982 | Chevrolet | Camaro | Z28 Indianapolis 500 Pace Car |
| 1980 - 1986 | Chevrolet | Caprice | Base, Classic |
| 1986 | Chevrolet | Caprice | Classic Brougham |
| 1981 - 1982 | Chevrolet | Caprice | Classic Estate |
| 1980 - 1981 | Chevrolet | Caprice | Classic Landau |
| 1980 | Chevrolet | Caprice | Classic Sport |
| 1980 - 1986 | Chevrolet | Corvette | Base |
| 1982 | Chevrolet | Corvette | Collector's Edition |
| 1986 | Chevrolet | Corvette | Indianapolis 500 Pace Car |
| 1980 - 1986 | Chevrolet | El Camino | Base, SS |
| 1981 - 1986 | Chevrolet | El Camino | Conquista |
| 1980 - 1981 | Chevrolet | El Camino | Royal Knight |
| 1983 | Chevrolet | G10 | Base |
| 1981 - 1986 | Chevrolet | G10 | Bonaventure |
| 1980 - 1986 | Chevrolet | G10 | Sportvan, Beauville, Chevy Van |
| 1983 - 1984 | Chevrolet | G20 | Bonaventure |
| 1980 - 1986 | Chevrolet | G20 | Chevy Van, Beauville, Sportvan |
| 1980 - 1981 | Chevrolet | G20 | Nomad |
| 1983 - 1984 | Chevrolet | G30 | Bonaventure |
| 1980 - 1986 | Chevrolet | G30 | Sportvan, Beauville, Chevy Van, Hi-Cube |
| 1980 - 1985 | Chevrolet | Impala | Base |
| 1981 - 1982 | Chevrolet | Impala | Estate |
| 1980 | Chevrolet | Impala | Sport |
| 1980 - 1981 | Chevrolet | K10 | Cheyenne |
| 1981 - 1986 | Chevrolet | K10 | Custom |
| 1980 | Chevrolet | K10 | Custom Deluxe |
| 1981 | Chevrolet | K10 | Deluxe |
| 1980 - 1986 | Chevrolet | K10 | Scottsdale, Silverado |
| 1981 - 1986 | Chevrolet | K10 Suburban | Custom |
| 1980 | Chevrolet | K10 Suburban | Custom Deluxe |
| 1981 | Chevrolet | K10 Suburban | Deluxe |
| 1980 - 1986 | Chevrolet | K10 Suburban | Silverado, Scottsdale |
| 1980 - 1981 | Chevrolet | K20 | Cheyenne |
| 1981 - 1986 | Chevrolet | K20 | Custom |
| 1980 | Chevrolet | K20 | Custom Deluxe |
| 1981 | Chevrolet | K20 | Deluxe |
| 1980 - 1986 | Chevrolet | K20 | Silverado, Scottsdale |
| 1981 - 1986 | Chevrolet | K20 Suburban | Custom |
| 1980 | Chevrolet | K20 Suburban | Custom Deluxe |
| 1981 | Chevrolet | K20 Suburban | Deluxe |
| 1980 - 1986 | Chevrolet | K20 Suburban | Silverado, Scottsdale |
| 1980 - 1981 | Chevrolet | K30 | Cheyenne |
| 1981 - 1986 | Chevrolet | K30 | Custom |
| 1980 | Chevrolet | K30 | Custom Deluxe |
| 1981 | Chevrolet | K30 | Deluxe |
| 1980 - 1986 | Chevrolet | K30 | Scottsdale, Silverado |
| 1980 - 1981 | Chevrolet | Malibu | Base, Classic Landau |
| 1980 - 1983 | Chevrolet | Malibu | Classic |
| 1980 | Chevrolet | Malibu | Classic Estate, Estate, Classic Sport, Sport |
| 1981 - 1986 | Chevrolet | Monte Carlo | Base |
| 1983 | Chevrolet | Monte Carlo | CL |
| 1980 - 1981 | Chevrolet | Monte Carlo | Landau |
| 1986 | Chevrolet | Monte Carlo | LS |
| 1980 | Chevrolet | Monte Carlo | Sport |
| 1983 - 1986 | Chevrolet | Monte Carlo | SS |
| 1985 | Excalibur | Phaeton | Anniversary |
| 1983 - 1986 | Excalibur | Phaeton | Base |
| 1980 | GMC | C1500 | Heavy Half |
| 1980 - 1986 | GMC | C1500 | Sierra Classic, High Sierra, Base |
| 1980 - 1982 | GMC | C1500 | Street Coupe, Sierra Grande |
| 1980 - 1986 | GMC | C1500 Suburban | High Sierra, Sierra Classic, Base |
| 1980 - 1982 | GMC | C1500 Suburban | Sierra Grande |
| 1980 - 1986 | GMC | C2500 | Base, High Sierra, Sierra Classic |
| 1980 - 1982 | GMC | C2500 | Sierra Grande |
| 1980 - 1986 | GMC | C2500 Suburban | Sierra Classic, High Sierra, Base |
| 1980 - 1982 | GMC | C2500 Suburban | Sierra Grande |
| 1980 - 1986 | GMC | C3500 | Base, Sierra Classic, High Sierra |
| 1980 - 1982 | GMC | C3500 | Sierra Grande |
| 1981 - 1986 | GMC | Caballero | Amarillo |
| 1980 - 1986 | GMC | Caballero | Diablo, Base |
| 1980 | GMC | Caballero | Laredo |
| 1981 | GMC | Caballero | Royal Knight, Conquista |
| 1983 - 1984 | GMC | G1500 | Rally Custom |
| 1980 - 1986 | GMC | G1500 | Vandura, Rally STX, Rally |
| 1983 - 1984 | GMC | G2500 | Rally Custom |
| 1980 - 1986 | GMC | G2500 | Vandura, Rally STX, Rally |
| 1980 - 1986 | GMC | G3500 | Magnavan, Vandura, Vandura Special, Rally Camper Special, Rally STX, Rally |
| 1981 - 1986 | GMC | G3500 | Rally Custom |
| 1980 - 1985 | GMC | Jimmy | High Sierra |
| 1980 - 1986 | GMC | Jimmy | Sierra Classic, Base |
| 1986 | GMC | Jimmy | Silverado |
| 1980 - 1982 | GMC | Jimmy | Street Coupe, Sierra Grande |
| 1980 - 1986 | GMC | K1500 | High Sierra, Sierra Classic, Base |
| 1980 - 1982 | GMC | K1500 | Sierra Grande |
| 1980 - 1986 | GMC | K1500 Suburban | Base, High Sierra, Sierra Classic |
| 1980 - 1982 | GMC | K1500 Suburban | Sierra Grande |
| 1980 - 1986 | GMC | K2500 | Base, High Sierra, Sierra Classic |
| 1980 - 1982 | GMC | K2500 | Sierra Grande |
| 1980 - 1986 | GMC | K2500 Suburban | High Sierra, Sierra Classic, Base |
| 1980 - 1982 | GMC | K2500 Suburban | Sierra Grande |
| 1980 - 1986 | GMC | K3500 | Base, High Sierra, Sierra Classic |
| 1980 - 1982 | GMC | K3500 | Sierra Grande |
| 1983 - 1986 | GMC | S15 Jimmy | Gypsy, Sierra Classic, Base |
| 1985 | GMC | S15 Jimmy | High Sierra |
| 1980 | Oldsmobile | Cutlass | Base |
| 1980 - 1981 | Oldsmobile | Cutlass | Brougham, LS |
| 1981 | Oldsmobile | Cutlass | Supreme |
| 1980 - 1984 | Oldsmobile | Cutlass Calais | Base |
| 1984 | Oldsmobile | Cutlass Calais | Hurst |
| 1980 - 1983 | Oldsmobile | Cutlass Cruiser | Base |
| 1980 - 1981 | Oldsmobile | Cutlass Cruiser | Brougham |
| 1980 | Oldsmobile | Cutlass Salon | Base, Brougham |
| 1980 - 1986 | Oldsmobile | Cutlass Supreme | Brougham, Base |
| 1981 - 1985 | Oldsmobile | Cutlass Supreme | LS |
| 1981 | Oldsmobile | Delta 88 | Holiday |
| 1981 - 1982 | Oldsmobile | Delta 88 | Royale, Royale Brougham, Base |
| 1983 - 1986 | Pontiac | Bonneville | Brougham, Base |
| 1984 - 1986 | Pontiac | Bonneville | LE |
| 1980 - 1981 | Pontiac | Catalina | Safari, Base |
| 1980 - 1981 | Pontiac | Firebird | Formula, Esprit |
| 1982 - 1986 | Pontiac | Firebird | S/E |
| 1980 - 1986 | Pontiac | Firebird | Trans Am, Base |
| 1980 | Pontiac | Grand Am | Base |
| 1981 | Pontiac | Grand LeMans | SA |
| 1980 - 1981 | Pontiac | Grand LeMans | Safari, Base, LE |
| 1980 - 1986 | Pontiac | Grand Prix | Base |
| 1981 - 1986 | Pontiac | Grand Prix | Brougham |
| 1984 - 1986 | Pontiac | Grand Prix | LE |
| 1980 - 1983 | Pontiac | Grand Prix | LJ |
| 1980 | Pontiac | Grand Prix | SJ |
| 1980 - 1981 | Pontiac | LeMans | Base, Safari |
| 1983 - 1986 | Pontiac | Parisienne | Brougham, Base |
