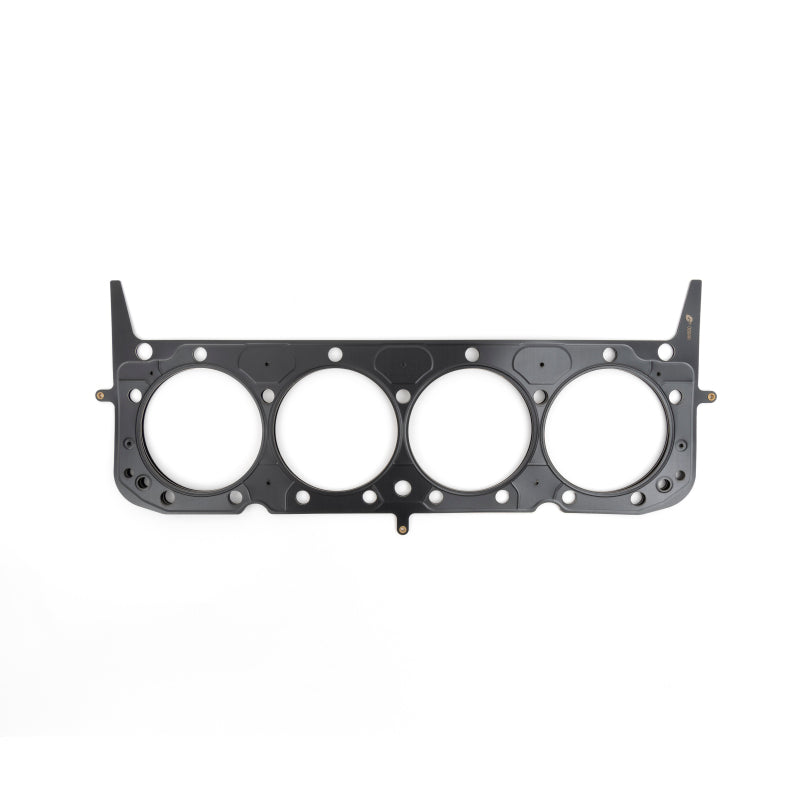

Cometic Chevy SM Block Brodix 4.030" .098" MLS-5 ALL 12-23

Cometic MLS Head Gaskets

.098" MLS-5 ALL 12-23 DEG HEAD

Cometic MLS head gaskets are constructed from multiple layers of stainless steel for strength and contain load-controlled embossments that conform load distribution across the sealing area. This creates an exceptional seal by requiring less clamp load--resulting in less bore distortion. The stainless steel outer layers utilizing FKM (Viton®) rubber coating, a high-temperature and chemical-resistant polymer. A topcoat of PTFE aids in resistance to fret and increased cold sealing. MLS head gaskets are available for most aftermarket cylinder heads; as with all of Cometic's MLS head gaskets, no sealants or re-torque is required.

Spec:

• Bore (in): 4.030 in.
• Bore (mm): 102.362mm
• Gasket Material: Multi-layer stainless steel
• Compressed Thickness (in): 0.098 in.
• Compressed Volume (cc): 20.485cc
• Lock Wire: No
• Quantity: Sold individually.
• Notes: Designed for use with Brodix heads.
