MOOG Chassis Products

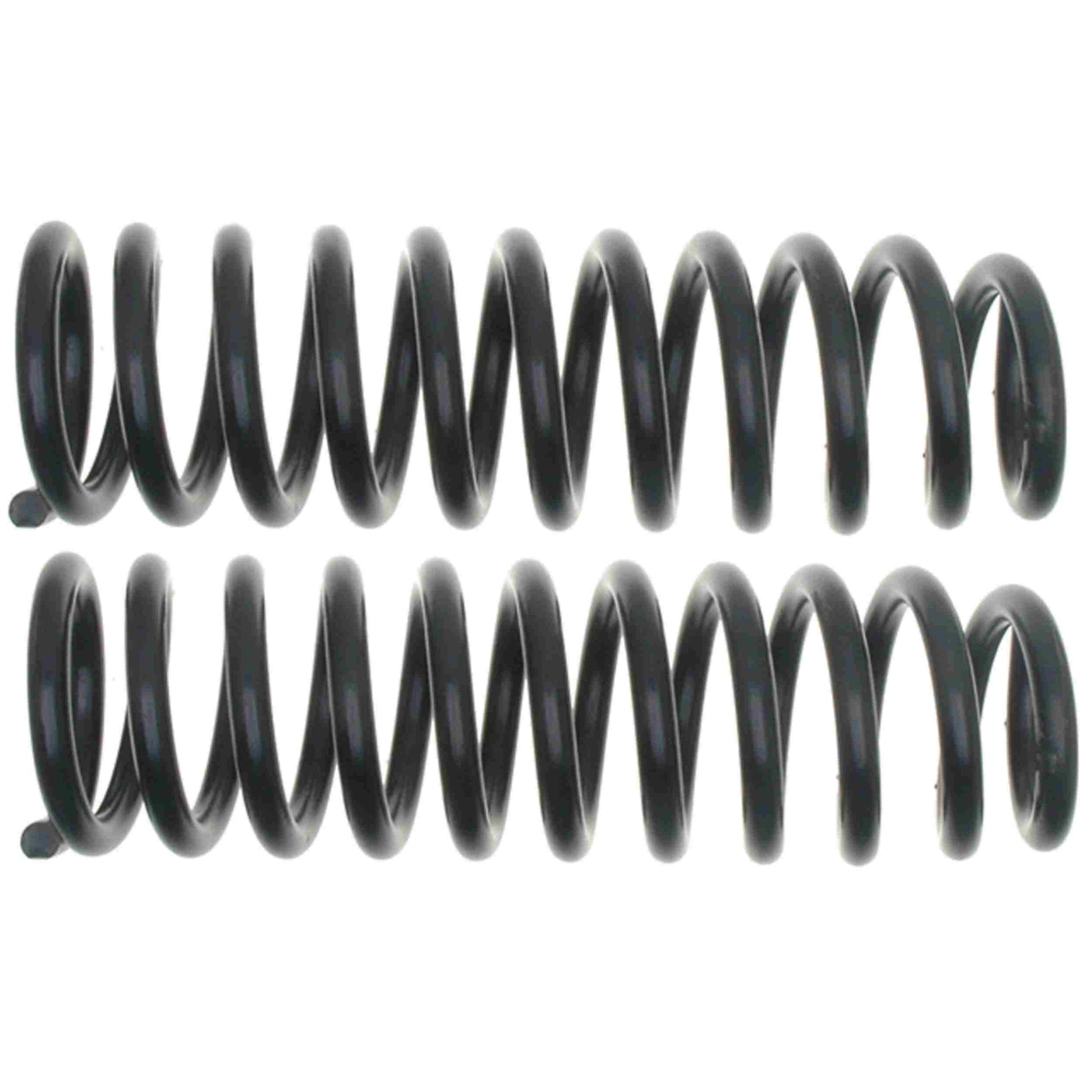

Moog Coil Spring Set

Moog Coil Spring Set

sku: 1P6UW | mpn: 81068
$108.43
$108.43 $108.43
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

MOOG® Problem Solver® products incorporate proven design and engineering features for like new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.

Features:

100% Load tested

Easy to install

Provides like-new steering

Designed to lower stresses for longer service life

Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment

Specifications:

  • ID - Inches: 3.32
  • ID - MM: 84.40
  • Bar Diameter - Inches: 0.60
  • Bar Diameter - MM: 15.50
  • Spring Rate - lbs per inch: 315.00
  • Load - lbs: 1370.00
  • Installation Height - Inches: 11.00
  • Installation Height - MM: 279.40
  • Free Height - Inches: 15.35
  • Free Height - MM: 389.90
  • End Type 1: Pigtail
  • End Type 2: Squared
  • Spring Type: Constant Rate
