Earl's Clutch Adapter Fit

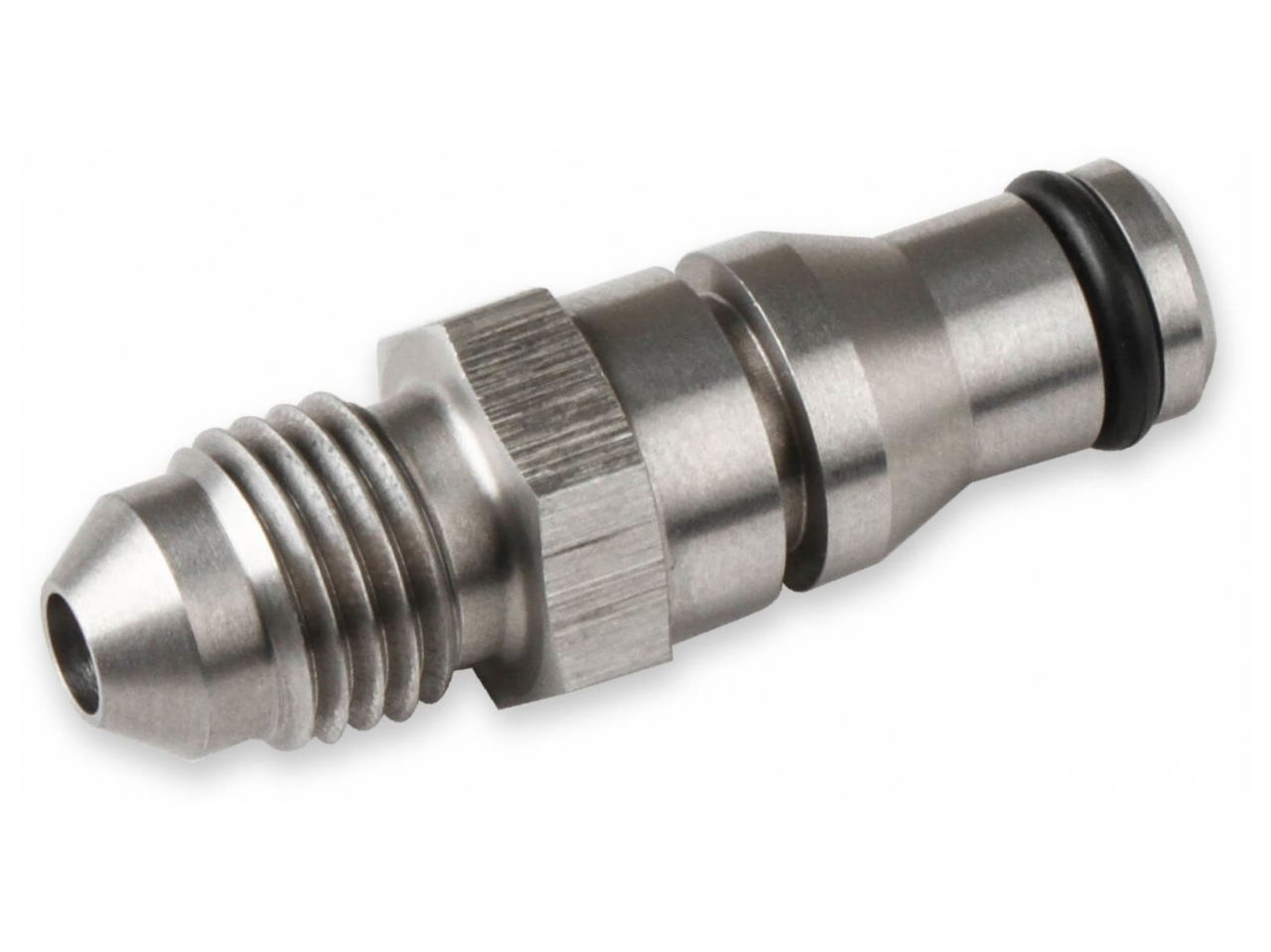

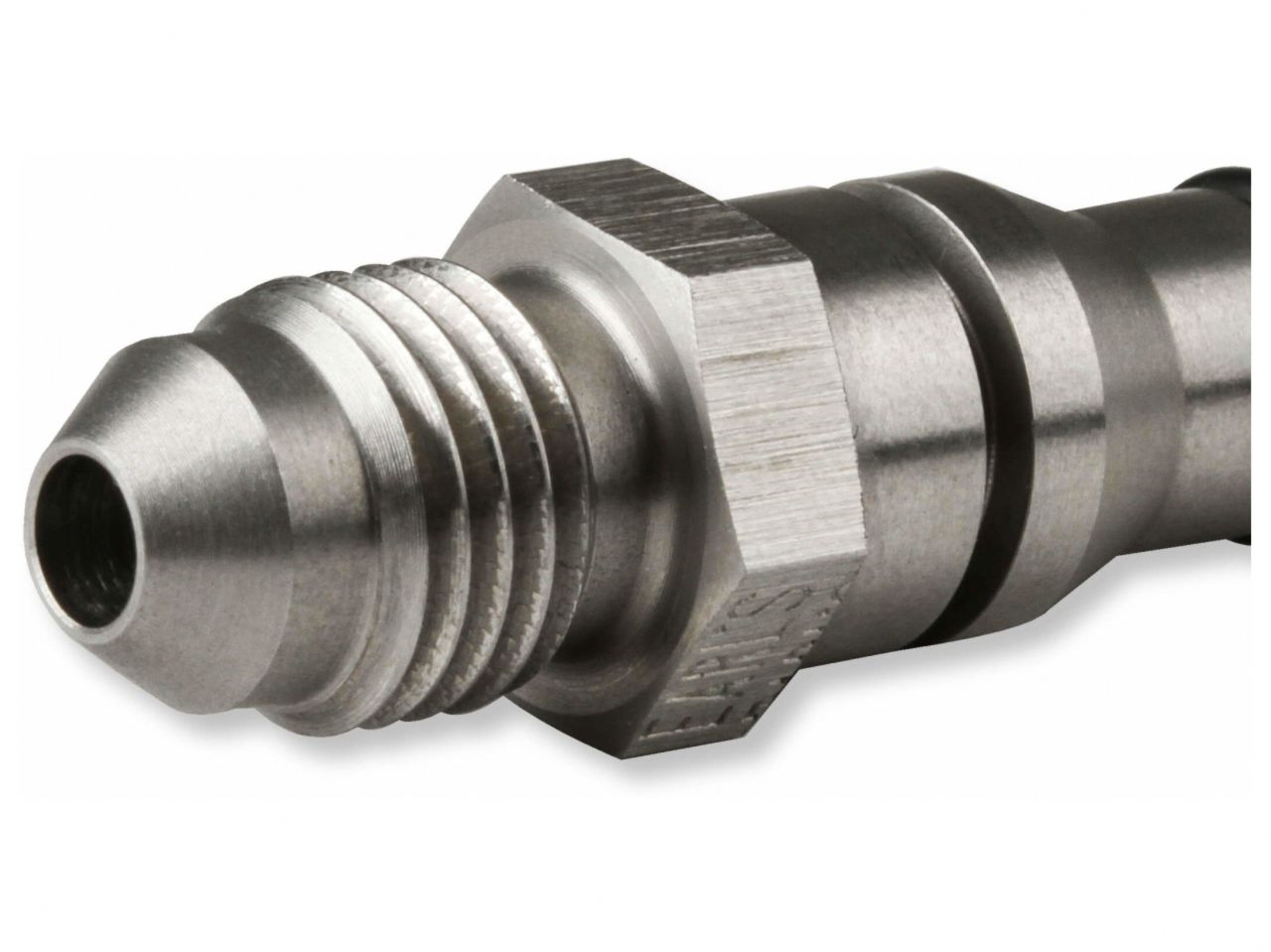

The clutch system on most late-model vehicles use a plastic clutch hose that is tough to modify when doing an engine swap. The OEM plastic hose can expand and may not work correctly in high heat, high pressure, or with a racing clutch. These special stainless steel adapter fittings works with most late-model master cylinders, hydraulic clutch release bearings, and slave cylinders. The plastic OEM hose is eliminated and replaced w/ PTFE lined AN -4 hose (use Earls Speed-Flex hose). Use (2) adapters when using both the OEM master cylinder and hydraulic release bearing (or slave cylinder). Use (1) adapter for custom clutch plumbing systems that use either OEM master cylinder or OEM clutch release bearing (or slave cylinder). Check your OEM hose and choose an Early or Late style adapter. Sold Individually.

Features:

Adapter Converts OEM Master Cylinders, Clutch Release Bearings & Slave Cylinders to use AN 4 PTFE Lined Hose

Fits: Most Late Model GM/Ford/Jeep/Mopar Clutch Master Cylinders, Slave Cylinders & Hydraulic Release Bearings

Allows Replacement of the OEM Plastic Clutch Hose – Use w/ HP Clutches, Racing & High Heat Applications

Improved Pedal Feel w/ Braided Stainless Steel PTFE Clutch Hose (Speed Flex/Speed Seal – Instead of Plastic Hose)

Ideal for Engine Swaps & Vehicles That Use After-Market Master Cylinders w/ the OEM Clutch Release Bearing

Use w/ Earls AN -4 Speed-Seal/Speed-Flex Hose – or Premade Speed-Flex PTFE Lined Hose

Material: 304 Stainless Steel

EPDM O-Ring

Fitting is Retained by C-Clip

Specifications:

• Adapter AN Size ( A ): 4 AN MALE
• Adapter Type: Clutch
• Angle: Straight
• Emission Code: 5
• Finish: Natural
• Material: Stainless Steel
• O-Ring Material: EPDM
• Product Type: Clutch Adapter
