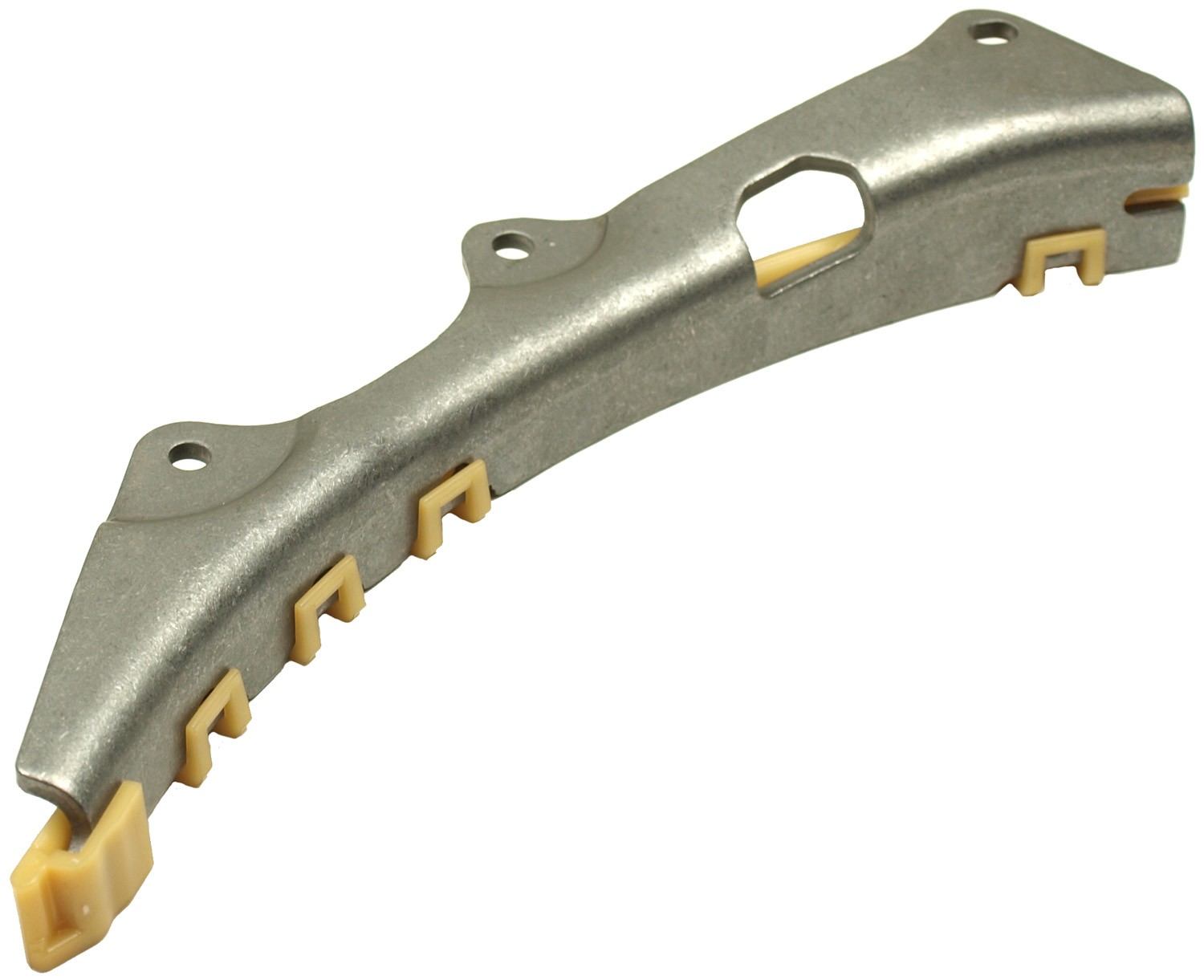

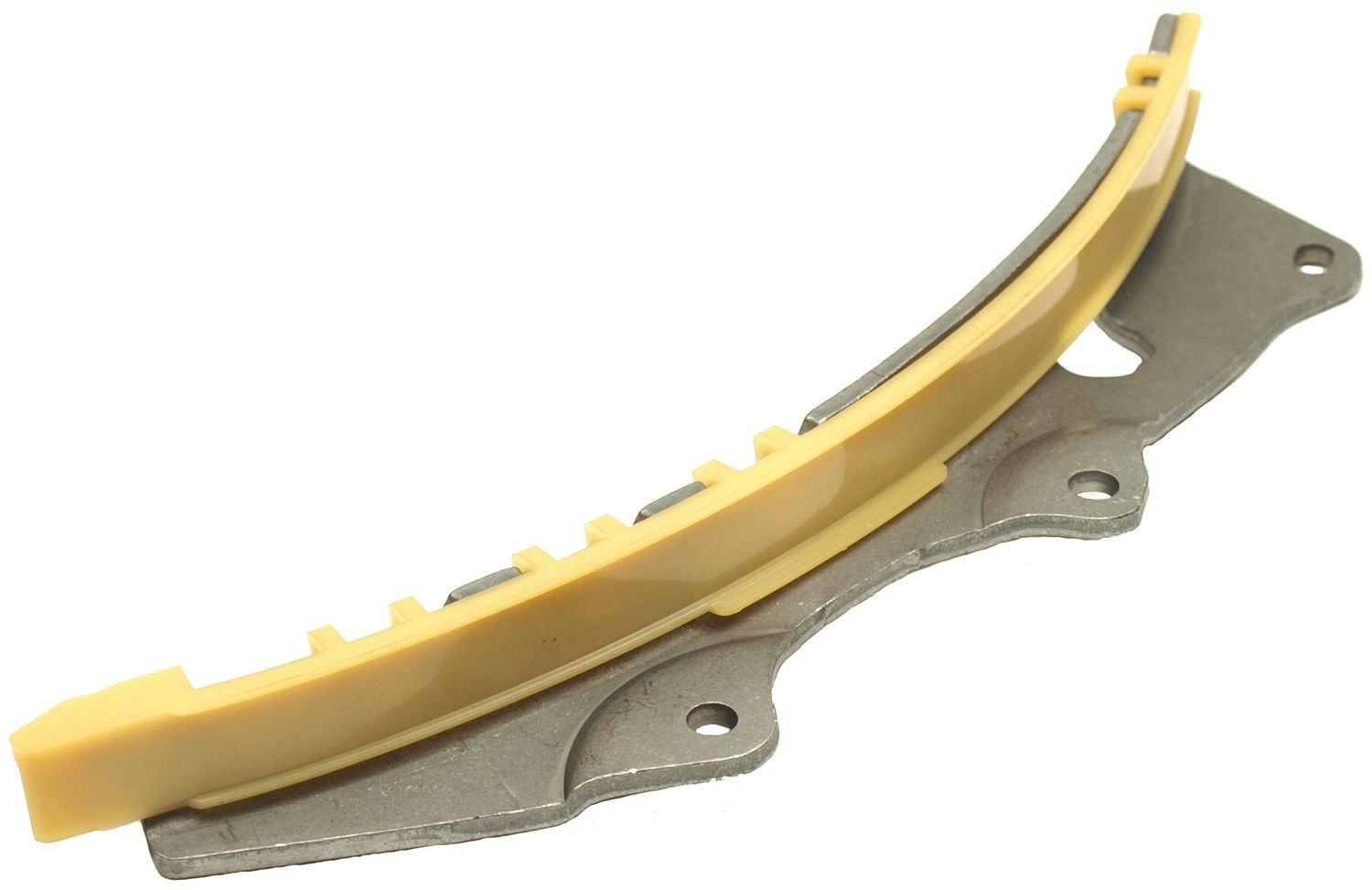

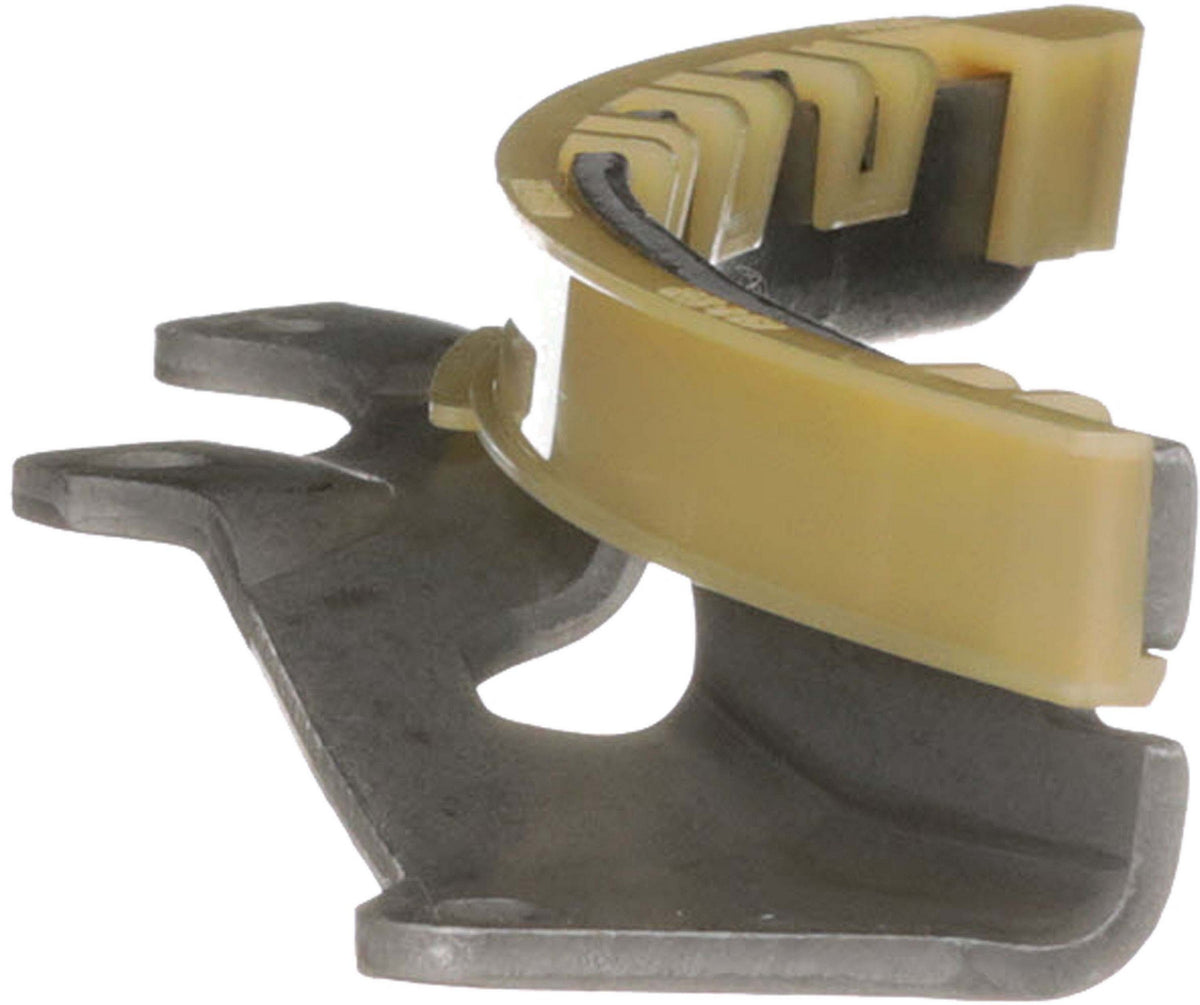

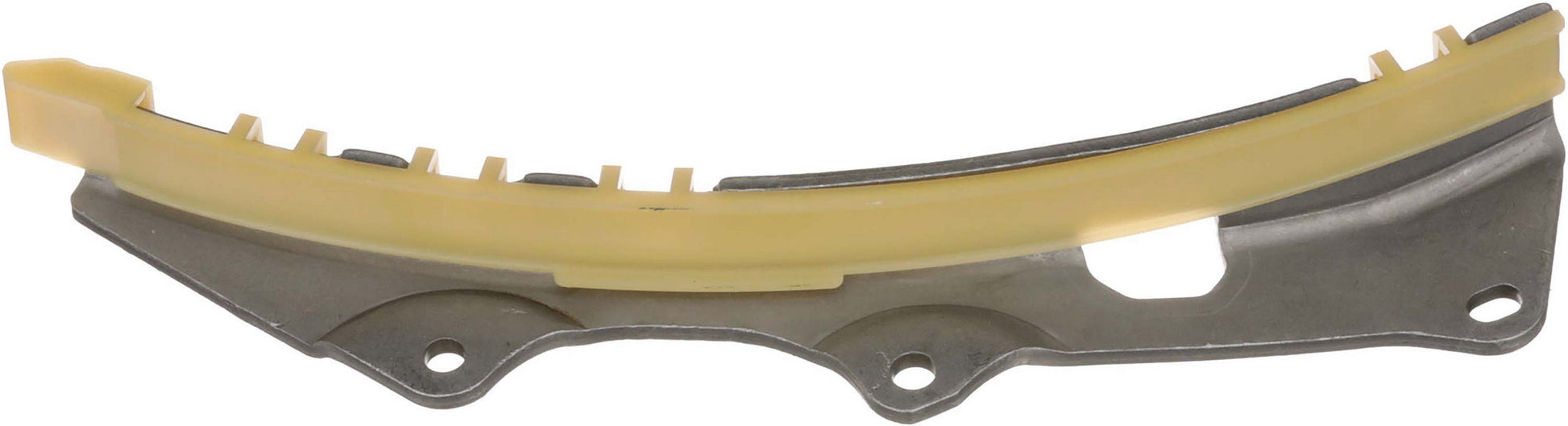

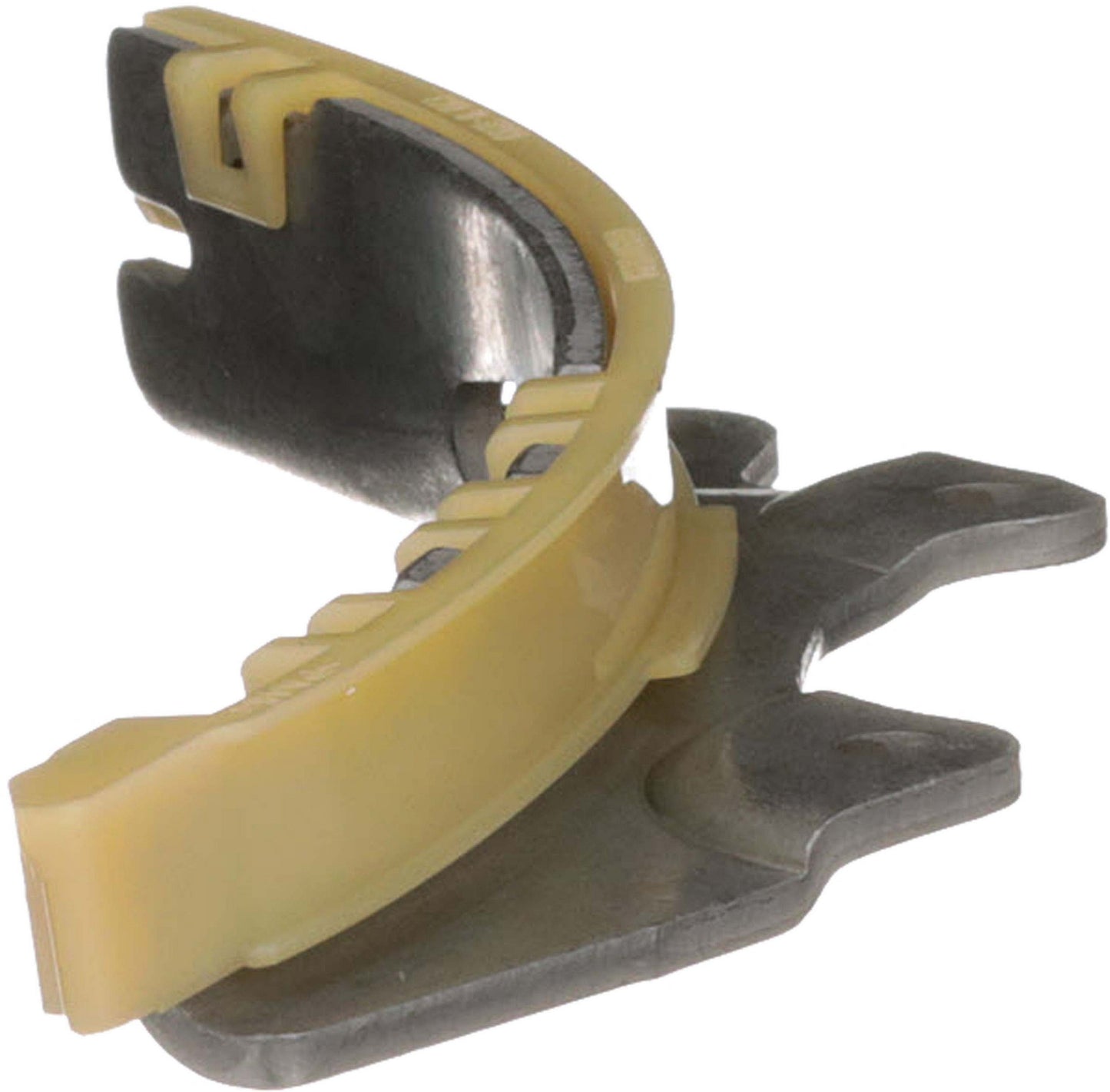

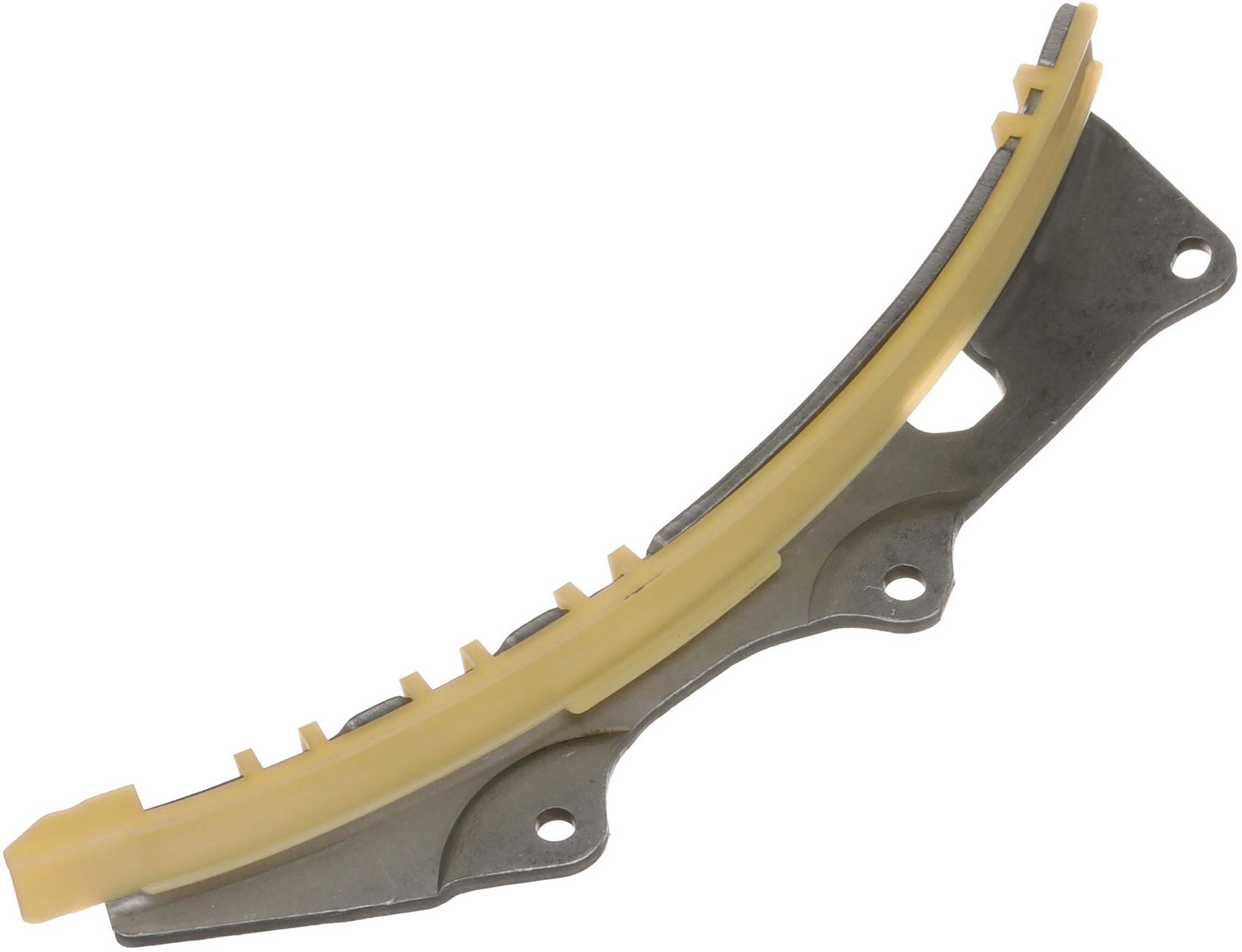

Cloyes Engine Timing Chain Guide 9-5749
Guide for the timing chain. (9-5749) by Cloyes
A timing chain guide serves as a track or guide, for the timing chain, connecting the crankshaft and camshaft. Designed to meet or exceed OEM performance requirements, Cloyes Timing Guides, which are available in kits or as a stand-alone product, utilize the latest in design and material technology, ensuring quiet and maintenance-free experience. Cloyes parts are CAD designed and manufactured using advanced materials. Each part is extensively tested for function and durability to ensure optimal performance. Cloyes recommends the chain tensioner(s), sprocket(s), and guide(s) also be replaced when the chain is replaced as these components play a vital role in supporting the chain and keeping it tight. Refer to our online catalog for detailed application-specific information.
Cloyes parts are CAD designed and manufactured using premium materials. Each part is extensively tested and measured for function, fitment, and durability to ensure optimal performance
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2015 - 2017 | Chrysler | 200 | C |
| 2011 - 2017 | Chrysler | 200 | Limited, LX, S |
| 2011 - 2014 | Chrysler | 200 | Touring |
| 2017 - 2019 | Chrysler | 300 | 3.6, Hemi |
| 2011 - 2014 | Chrysler | 300 | Base |
| 2011 - 2021 | Chrysler | 300 | C |
| 2012 - 2014 | Chrysler | 300 | C Luxury, C Lujo, SRT8 |
| 2015 - 2017 | Chrysler | 300 | C Platinum |
| 2011 - 2020 | Chrysler | 300 | Limited |
| 2012 - 2022 | Chrysler | 300 | S |
| 2013 | Chrysler | 300 | SRT8 Core |
| 2011 - 2022 | Chrysler | 300 | Touring |
| 2018 - 2022 | Chrysler | 300 | Touring L |
| 2020 | Chrysler | Pacifica | AWD Launch Edition |
| 2019 - 2022 | Chrysler | Pacifica | Hybrid Limited, Hybrid Touring L |
| 2017 - 2018 | Chrysler | Pacifica | Hybrid Premium, Hybrid Platinum |
| 2020 - 2021 | Chrysler | Pacifica | Hybrid Touring |
| 2018 - 2019 | Chrysler | Pacifica | Hybrid Touring Plus, Touring Plus |
| 2018 - 2020 | Chrysler | Pacifica | Limited Platinum, L |
| 2017 - 2020 | Chrysler | Pacifica | LX, Touring L Plus |
| 2021 - 2022 | Chrysler | Pacifica | Pinnacle, Hybrid Pinnacle |
| 2017 - 2022 | Chrysler | Pacifica | Touring, Touring L, Limited |
| 2014 | Chrysler | Town & Country | 30th Anniversary Edition, Base |
| 2012 - 2016 | Chrysler | Town & Country | Li |
| 2015 - 2016 | Chrysler | Town & Country | Limited Platinum, Touring Piel |
| 2011 - 2016 | Chrysler | Town & Country | LX, Limited, Touring L, Touring |
| 2016 | Chrysler | Town & Country | Premium |
| 2013 - 2016 | Chrysler | Town & Country | S |
| 2020 - 2021 | Chrysler | Voyager | L, LXi |
| 2020 - 2022 | Chrysler | Voyager | LX |
| 2012 | Dodge | Avenger | Canada Value Package |
| 2011 | Dodge | Avenger | Express, Lux, Heat, Mainstreet |
| 2013 - 2014 | Dodge | Avenger | GTS |
| 2012 - 2014 | Dodge | Avenger | R/T |
| 2011 - 2014 | Dodge | Avenger | SE Canada Value Package, SXT, SE |
| 2011 - 2013 | Dodge | Avenger | SXT Plus |
| 2016 | Dodge | Challenger | 392 Hemi Scat Pack Shaker, R/T Shaker, R/T Plus Shaker |
| 2014 | Dodge | Challenger | Base |
| 2015 - 2016 | Dodge | Challenger | Black Line, R/T Plus |
| 2018 | Dodge | Challenger | Edicion Especial, SRT Demon |
| 2017 - 2022 | Dodge | Challenger | GT |
| 2017 - 2019 | Dodge | Challenger | R/T 392 |
| 2012 - 2014 | Dodge | Challenger | R/T Classic |
| 2016 - 2022 | Dodge | Challenger | R/T Scat Pack |
| 2021 | Dodge | Challenger | R/T Scat Pack Shaker Widebody, T/A 392 Widebody |
| 2019 - 2022 | Dodge | Challenger | R/T Scat Pack Widebody, SRT Hellcat Redeye Widebody, SRT Hellcat Redeye |
| 2013 - 2014 | Dodge | Challenger | Rallye Redline |
| 2011 - 2012 | Dodge | Challenger | RT |
| 2015 - 2019 | Dodge | Challenger | Scat Pack |
| 2020 - 2021 | Dodge | Challenger | Scat Pack 392 Widebody |
| 2011 | Dodge | Challenger | SE |
| 2015 - 2018 | Dodge | Challenger | SRT 392 |
| 2017 | Dodge | Challenger | SRT Go Mango |
| 2015 - 2022 | Dodge | Challenger | SRT Hellcat |
| 2018 - 2022 | Dodge | Challenger | SRT Hellcat Widebody |
| 2022 | Dodge | Challenger | SRT Jailbreak |
| 2020 - 2022 | Dodge | Challenger | SRT Super Stock |
| 2011 - 2018 | Dodge | Challenger | SRT, SXT Plus |
| 2011 - 2014 | Dodge | Challenger | SRT8 |
| 2011 - 2022 | Dodge | Challenger | SXT, R/T |
| 2017 - 2018 | Dodge | Challenger | T/A, T/A 392, Dual Stripes |
| 2017 - 2019 | Dodge | Charger | Daytona R/T |
| 2018 - 2022 | Dodge | Charger | GT |
| 2018 | Dodge | Charger | GT Plus, SXT Plus Leather |
| 2011 - 2022 | Dodge | Charger | Pursuit, SXT, R/T |
| 2017 - 2018 | Dodge | Charger | R/T 392, Daytona, Daytona 392 |
| 2015 - 2016 | Dodge | Charger | R/T Road & Track |
| 2011 | Dodge | Charger | R/T Road and Track |
| 2019 - 2022 | Dodge | Charger | Scat Pack |
| 2020 | Dodge | Charger | Scat Pack 392 Widebody |
| 2011 - 2018 | Dodge | Charger | SE |
| 2015 - 2018 | Dodge | Charger | SRT 392, R/T Scat Pack |
| 2015 - 2021 | Dodge | Charger | SRT Hellcat |
| 2021 | Dodge | Charger | SRT Hellcat Redeye |
| 2020 - 2022 | Dodge | Charger | SRT Hellcat Widebody |
| 2022 | Dodge | Charger | SRT Jailbreak, SRT Hellcat Redeye Widebody, Scat Pack Widebody |
| 2012 - 2014 | Dodge | Charger | SRT8 |
| 2011 - 2021 | Dodge | Charger | SXT Plus |
| 2011 - 2022 | Dodge | Durango | Citadel, SXT, R/T |
| 2011 - 2013 | Dodge | Durango | Crew |
| 2012 - 2013 | Dodge | Durango | Crew Plus, Base, Crew Luxe |
| 2017 - 2022 | Dodge | Durango | GT |
| 2020 - 2022 | Dodge | Durango | GT Plus |
| 2011 | Dodge | Durango | Heat, Express |
| 2014 - 2016 | Dodge | Durango | Limited |
| 2018 - 2022 | Dodge | Durango | Pursuit |
| 2014 - 2015 | Dodge | Durango | Rallye |
| 2012 - 2022 | Dodge | Durango | Special Service |
| 2022 | Dodge | Durango | SRT 392, R/T Plus |
| 2021 | Dodge | Durango | SRT Hellcat |
| 2018 - 2021 | Dodge | Durango | SXT Plus, SRT |
| 2020 | Dodge | Durango | Touring |
| 2014 - 2016 | Dodge | Grand Caravan | American Value Package |
| 2012 - 2020 | Dodge | Grand Caravan | Canada Value Package, Crew Plus, SE |
| 2011 - 2020 | Dodge | Grand Caravan | Crew, SXT |
| 2017 - 2020 | Dodge | Grand Caravan | GT |
| 2011 | Dodge | Grand Caravan | Mainstreet, Express, C/V |
| 2020 | Dodge | Grand Caravan | Premium Plus |
| 2011 - 2016 | Dodge | Grand Caravan | R/T |
| 2014 | Dodge | Grand Caravan | SE 30th Anniversary Edition, 30th Anniversary Edition, SXT 30th Anniversary Edition |
| 2011 - 2014 | Dodge | Grand Caravan | SE Canada Value Package |
| 2014 - 2020 | Dodge | Grand Caravan | SXT Plus, SE Plus |
| 2012 - 2015 | Dodge | Journey | AVP |
| 2014 | Dodge | Journey | Base |
| 2011 - 2013 | Dodge | Journey | Crew |
| 2014 - 2019 | Dodge | Journey | Crossroad |
| 2014 - 2015 | Dodge | Journey | Limited |
| 2011 | Dodge | Journey | Lux, Mainstreet, Express |
| 2011 - 2016 | Dodge | Journey | R/T |
| 2013 - 2014 | Dodge | Journey | R/T Rallye |
| 2011 - 2019 | Dodge | Journey | SE Plus, SXT, Canada Value Package, SE |
| 2019 | Dodge | Journey | Sport Plus |
| 2017 - 2019 | Dodge | Journey | Sport, GT |
| 2017 - 2018 | Dodge | Journey | SXT Lujo |
| 2011 - 2012 | Dodge | Journey | SXT Premium |
| 2016 | Jeep | Cherokee | 75th Anniversary |
| 2021 | Jeep | Cherokee | 80th Anniversary, Latitude Lux |
| 2018 - 2021 | Jeep | Cherokee | Altitude, Latitude Plus, High Altitude |
| 2017 | Jeep | Cherokee | Limited Plus |
| 2014 | Jeep | Cherokee | Limited Premium |
| 2014 - 2021 | Jeep | Cherokee | North, Limited, Latitude, Sport, Trailhawk |
| 2016 - 2020 | Jeep | Cherokee | Overland |
| 2019 - 2021 | Jeep | Cherokee | Trailhawk Elite |
| 2020 | Jeep | Cherokee | Upland |
| 2021 | Jeep | Gladiator | 80th Anniversary |
| 2020 - 2022 | Jeep | Gladiator | Altitude, Overland, Sport S, Mojave, Rubicon, Sport |
| 2021 - 2022 | Jeep | Gladiator | High Altitude, Willys, Willys Sport |
| 2020 | Jeep | Gladiator | Launch Edition |
| 2022 | Jeep | Grand Cherokee | 4xe, Summit 4xe, Summit Reserve, Overland 4xe, Trailhawk 4xe, Summit Reserve 4xe |
| 2016 | Jeep | Grand Cherokee | 75th Anniversary |
| 2021 | Jeep | Grand Cherokee | 80th Anniversary |
| 2018 - 2022 | Jeep | Grand Cherokee | Altitude |
| 2017 - 2021 | Jeep | Grand Cherokee | Blindada, Limited Lujo Advance, Limited Lujo |
| 2012 - 2021 | Jeep | Grand Cherokee | Laredo E, Laredo X |
| 2011 - 2013 | Jeep | Grand Cherokee | Limited Premium |
| 2012 | Jeep | Grand Cherokee | Overland Summit |
| 2011 - 2022 | Jeep | Grand Cherokee | Overland, Laredo, Limited |
| 2013 - 2021 | Jeep | Grand Cherokee | SRT |
| 2012 - 2015 | Jeep | Grand Cherokee | SRT8 |
| 2014 - 2022 | Jeep | Grand Cherokee | Summit |
| 2017 - 2020 | Jeep | Grand Cherokee | Summit Elite Platinum |
| 2018 - 2021 | Jeep | Grand Cherokee | Trackhawk, High Altitude |
| 2017 - 2022 | Jeep | Grand Cherokee | Trailhawk |
| 2019 - 2021 | Jeep | Grand Cherokee | Upland, Limited X |
| 2021 - 2022 | Jeep | Grand Cherokee L | Altitude, Limited, Overland, Summit, Laredo, Summit Reserve |
| 2022 | Jeep | Grand Cherokee WK | Laredo E, Laredo X, Limited |
| 2012 - 2017 | Jeep | Wrangler | Sahara |
| 2016 | Jeep | Wrangler | Unlimited 75th Anniversary, Unlimited Black Bear, 75th Anniversary |
| 2012 - 2015 | Jeep | Wrangler | Unlimited Altitude |
| 2021 | Jeep | Wrangler | Unlimited Freedom, Freedom, Unlimited 80th Anniversary, 80th Anniversary, Islander, Unlimited Islander |
| 2015 | Jeep | Wrangler | Unlimited Hard Rock |
| 2022 | Jeep | Wrangler | Unlimited High Tide |
| 2018 - 2019 | Jeep | Wrangler | Unlimited Moab |
| 2012 | Jeep | Wrangler | Unlimited Mountain, Unlimited |
| 2021 - 2022 | Jeep | Wrangler | Unlimited Rubicon 392, Unlimited High Altitude, Unlimited Willys, Unlimited High Altitude 4xe, Unlimited Rubicon 4xe, Unlimited Willys Sport, Unlimited Sahara Altitude, Unlimited Sahara 4xe, Unlimited Sport Altitude, Willys, Willys Sport |
| 2012 - 2022 | Jeep | Wrangler | Unlimited Rubicon, Unlimited Sport, Sport, Unlimited Sahara, Rubicon |
| 2017 | Jeep | Wrangler | Unlimited Smoky Mountain, Unlimited Winter Edition |
| 2016 - 2022 | Jeep | Wrangler | Unlimited Sport S, Sport S |
| 2014 | Jeep | Wrangler | Unlimited Willys Wheeler, Willys Wheeler |
| 2018 | Jeep | Wrangler JK | Unlimited Sahara, Unlimited Rubicon, Unlimited Sport, Sport S, Sport, Unlimited Sport S, Rubicon, Sahara |
| 2013 - 2022 | Ram | 1500 | Big Horn, HFE, Tradesman, Laramie |
| 2020 | Ram | 1500 | Hemi Sport |
| 2014 - 2018 | Ram | 1500 | Laramie Limited |
| 2013 - 2021 | Ram | 1500 | Laramie Longhorn, Sport |
| 2022 | Ram | 1500 | Limited Longhorn |
| 2014 - 2022 | Ram | 1500 | Lone Star, Special Service |
| 2021 | Ram | 1500 | Longhorn, TRX Launch Edition |
| 2013 - 2018 | Ram | 1500 | Outdoorsman, Express |
| 2013 | Ram | 1500 | R/T |
| 2015 - 2022 | Ram | 1500 | Rebel, Limited |
| 2013 - 2020 | Ram | 1500 | SLT, ST |
| 2013 - 2019 | Ram | 1500 | SXT |
| 2021 - 2022 | Ram | 1500 | TRX |
| 2019 | Ram | 1500 Classic | Big Horn, Laramie, Lone Star |
| 2019 - 2022 | Ram | 1500 Classic | Special Service, SLT, Express, Warlock, Tradesman |
| 2012 - 2015 | Ram | C/V | Base |
| 2015 | Ram | C/V | Tradesman |
| 2014 - 2021 | Ram | ProMaster 1500 | Base |
| 2014 - 2021 | Ram | ProMaster 2500 | Base |
| 2017 - 2019 | Ram | ProMaster 2500 | Ventanas |
| 2014 - 2021 | Ram | ProMaster 3500 | Base |
| 2021 | Ram | ProMaster 3500 | Chasis Cabina |
Cloyes Engine Timing Chain Guide 9-5749
Sale price$26.10 USD
