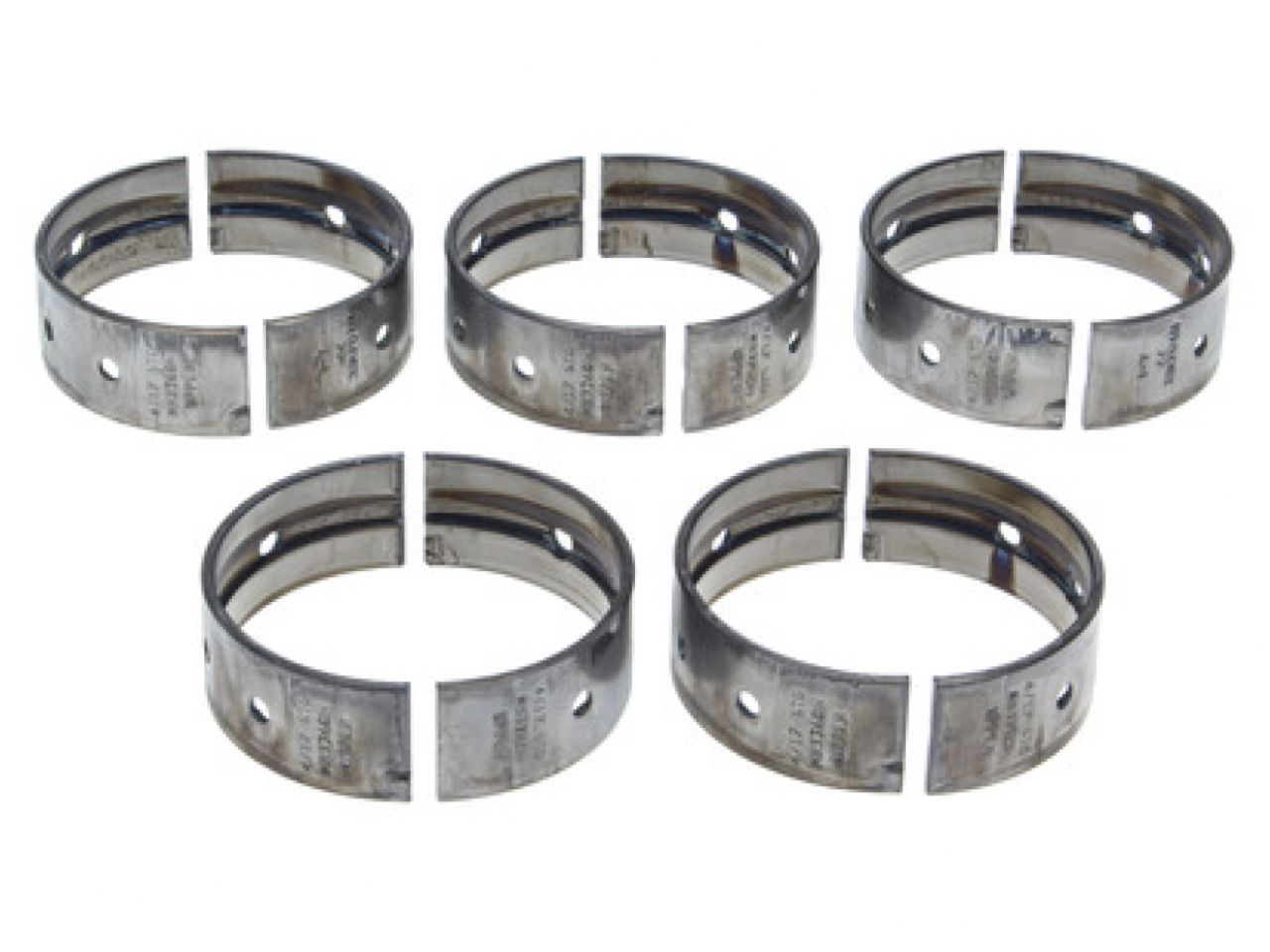

Clevite Main Bearing Set

Main Bearing Set

• H Series (Tri-Metal)
• Material Grade High Performance
• Requires Thrust Washer Set, Not Included, Use With Part Number TW-473S
• Size Standard

Specification:

• Material: TM-77
• Housing bore (min - max): 2.323 in - 2.324 in
• Max. Length: 0.787 in
• Vert. Oil Clearance (min - max): 0.0 in - 0.003 in
• Shaft diameter (min - max): 2.164 in - 2.165 in
• Wall Thickness (max): 0.078 in
• Size (): Standard
