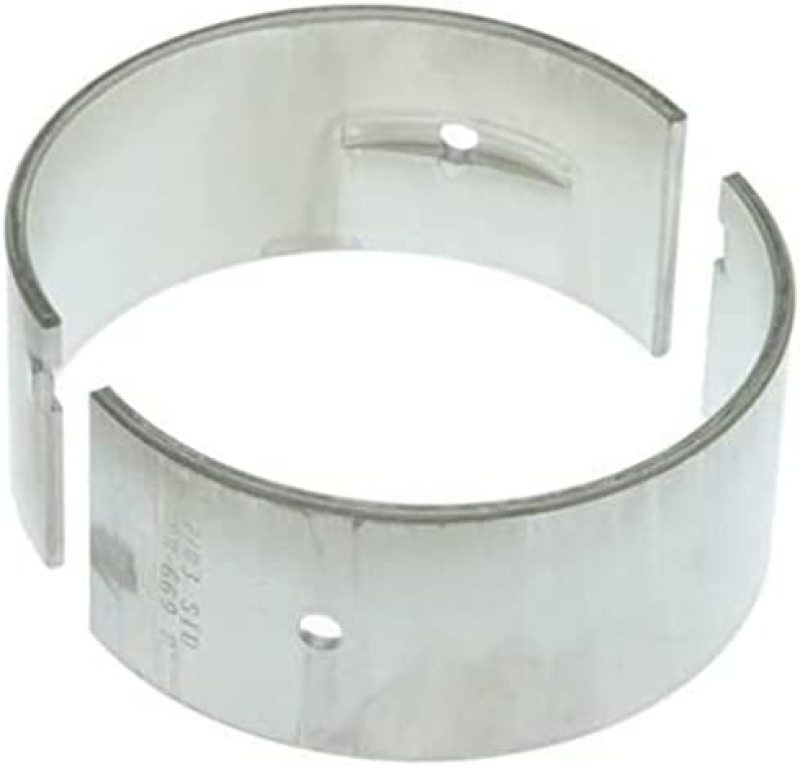

Clevite Connecting Rod Bearing Pair

Connecting Rod Bearing Pair

•  Material: TM-112
• Housing bore (min - max):2.941 in - 2.942 in 74.701 mm - 74.727 mm
• Max. Length: 1.175 in 29.845 mm
• Vert. Oil Clearance (min - max): 0.002 in - 0.005 in 0.051 mm - 0.127 mm
• Shaft diameter (min - max): 2.749 in - 2.75 in 69.825 mm - 69.85 mm
• Wall Thickness (max): 0.095 in 2.408 mm
