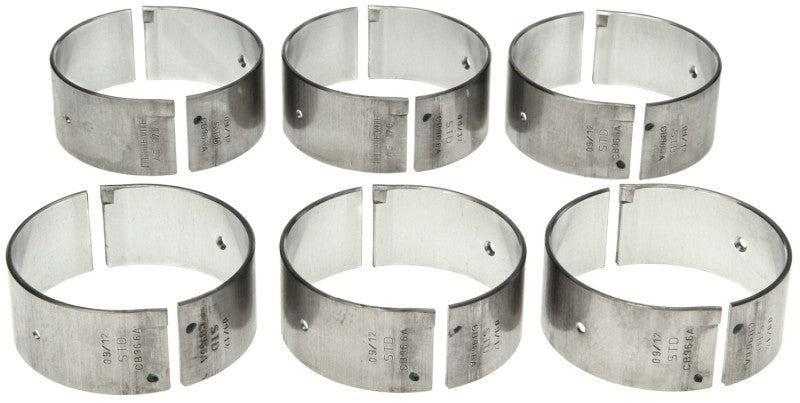

Clevite Connecting Rod Bearing Set

Connecting Rod Bearing Set

Material Grade OE Replacement

Series A Series (Aluminum)

Size Standard

Specifications:

• Material: AL-5
• Housing bore (min - max): 2.087 in53.0 mm - 53.012 mm
• Max. Length: 0.866 in21.996 mm
• Vert. Oil Clearance (min - max): 0.001 in - 0.003 in0.015 mm - 0.066 mm
• Shaft diameter (min - max): 1.967 in - 1.968 in49.962 mm - 49.974 mm
• Wall Thickness (max): 0.059 in1.509 mm

Vehicle Fitments:
