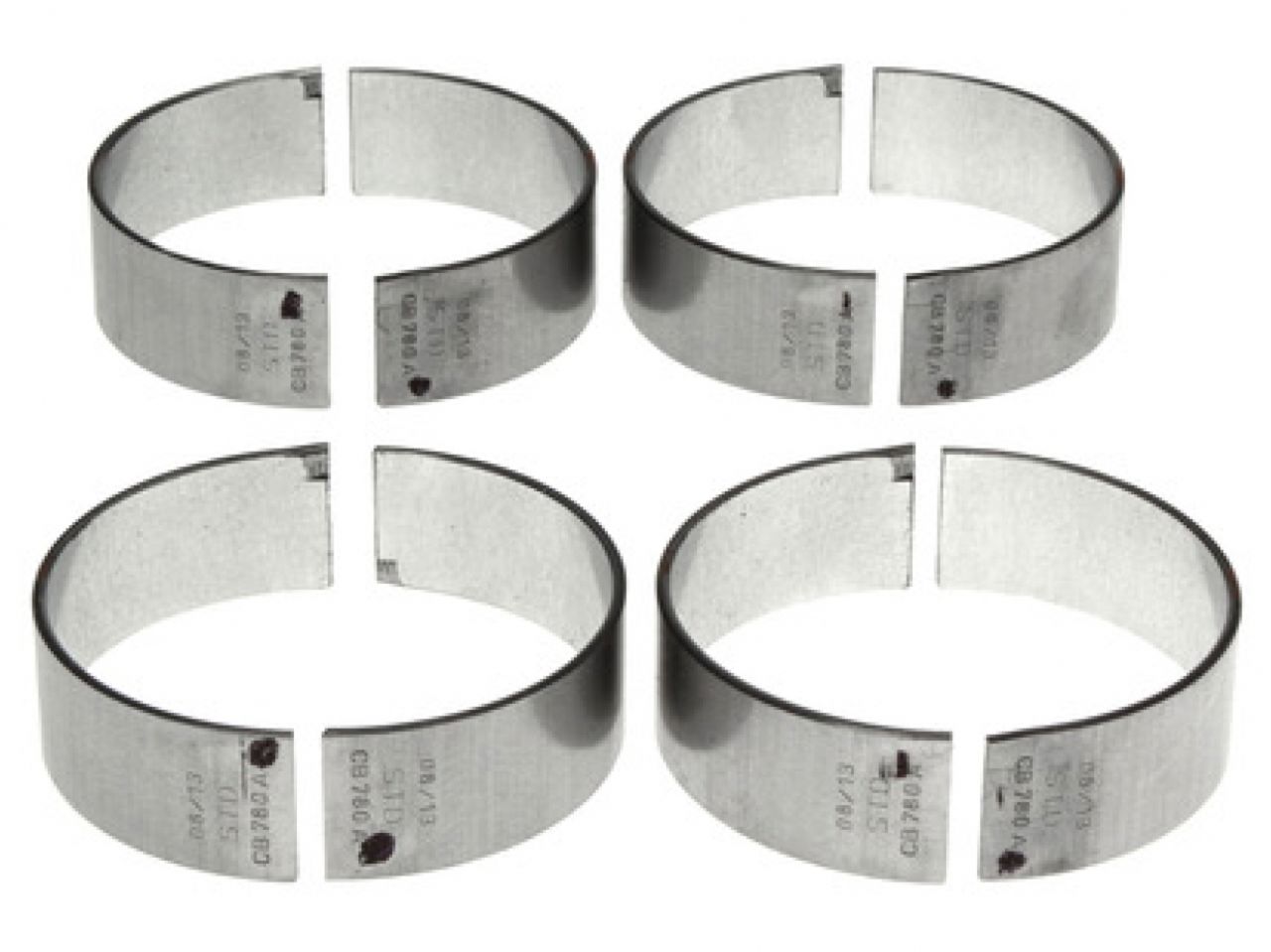

Clevite Connecting Rod Bearing - Volkswagen air cooled

Connecting Rod Bearing Set

A Series (Aluminum)

Material Grade OE Replacement

Size Standard

Specification: Material: AL-5

Housing bore (min - max): 2.276 in57.798 mm - 57.81 mm

Max. Length; 0.693 in17.602 mm

Vert. Oil Clearance (min - max): 0.001 in - 0.004 in0.025 mm - 0.089 mm

Shaft diameter (min - max): 2.164 in - 2.165 in54.966 mm - 54.991 mm

Wall Thickness (max): 0.055 in1.397 mm
