Clevite INTL. TRACTOR 6, D312-360

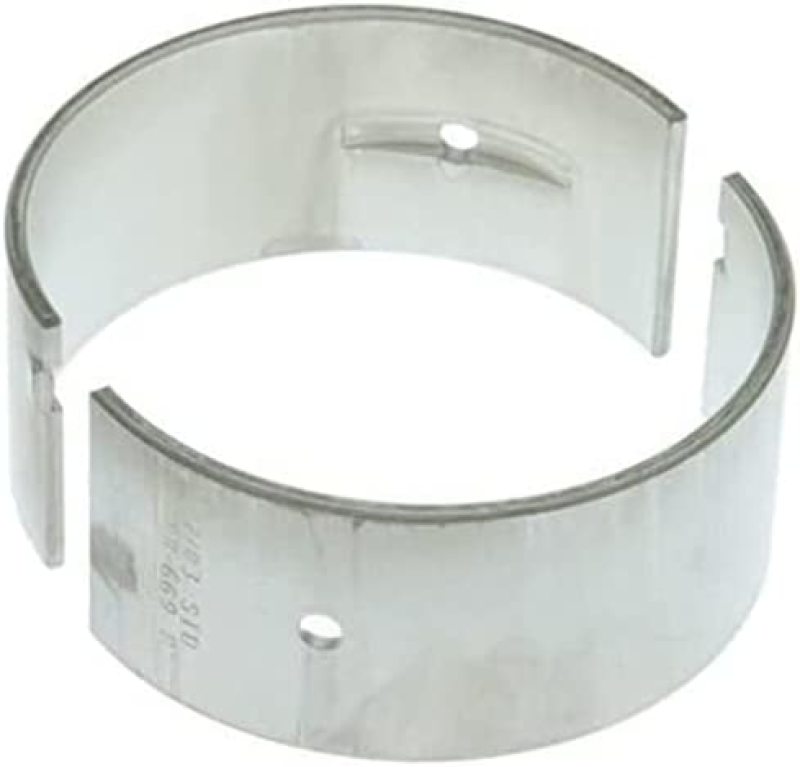

Connecting Rod Bearing Pair

1.200" Width, (Narrow)

SPECIFICATION:

• Material: TM-112
• Housing bore (min - max): 3.2 in - 3.201 in,81.28 mm - 81.305 mm
• Max. Length: 1.2 in,30.48 mm
• Vert. Oil Clearance (min - max): 0.002 in - 0.006 in,0.058 mm - 0.142 mm
• Shaft diameter (min - max): 2.998 in - 2.999 in,76.142 mm - 76.175 mm
• Wall Thickness (max): 0.1 in,2.53 mm
