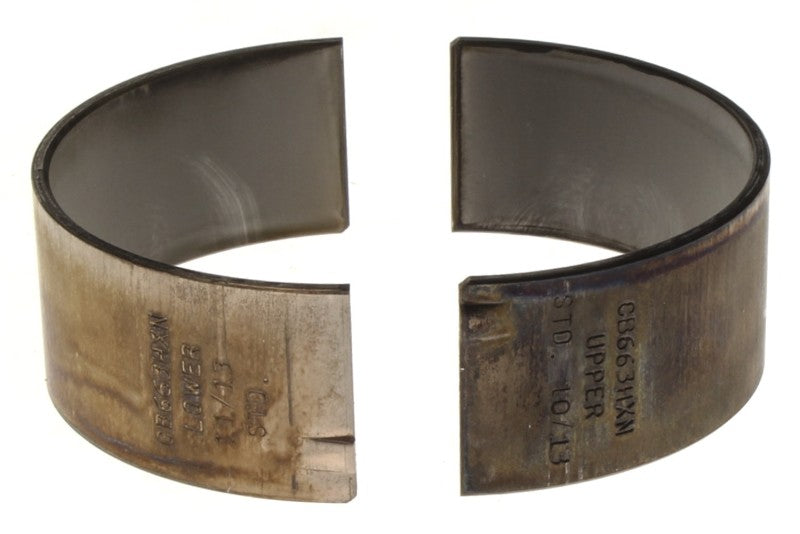

Clevite CONN. ROD BEARING

• H Series (Tri-Metal)
• Material Grade High Performance
• Narrowed
• Size Standard
• Suffix XN - .001in Extra Oil Clearance / Narrowed

SPECIFICATION

• Material:
  TM-77
• Housing bore (min - max):
  2.225 in 2.225 mm
• Max. Length:
  0.792 in 0.792 mm
• Vert. Oil Clearance (min - max):
  0.002 in - 0.004 in 0.002 mm - 0.004 mm
• Shaft diameter (min - max):
  2.099 in - 2.1 in 2.099 mm - 2.1 mm
• Wall Thickness (max):
  0.061 in 0.061 mm
