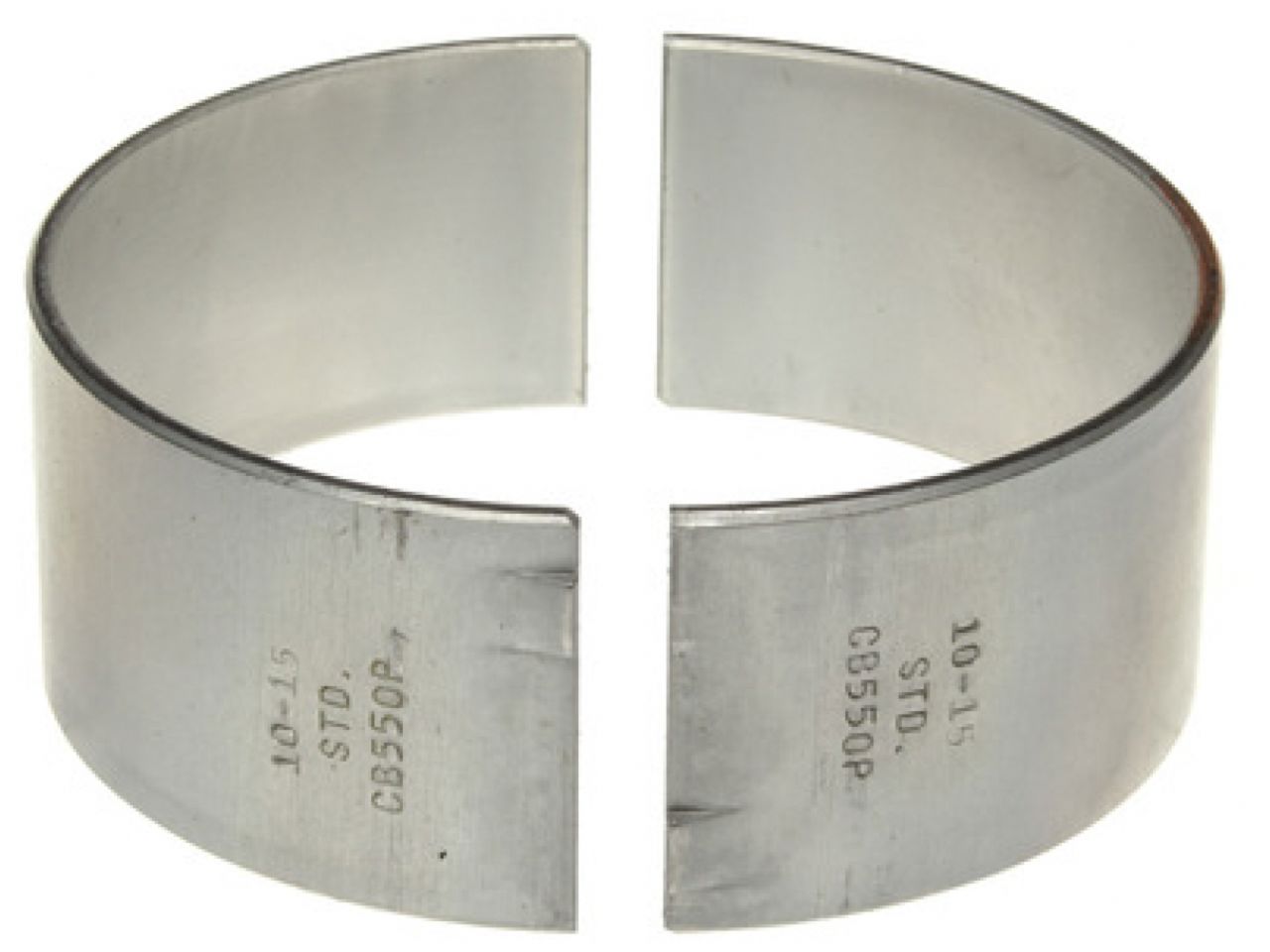

Clevite Connecting Rod Bearing

Connecting Rod Bearing Pair

• Material: TM-112
• Housing bore (min - max): 2.499 in - 2.5 in63.487 mm - 63.5 mm
• Max. Length: 1.003 in25.476 mm
• Vert. Oil Clearance (min - max): 0.001 in - 0.004 in0.036 mm - 0.099 mm
• Shaft diameter (min - max): 2.373 in - 2.374 in60.274 mm - 60.3 mm
• Wall Thickness (max): 0.062 in1.582 mm
