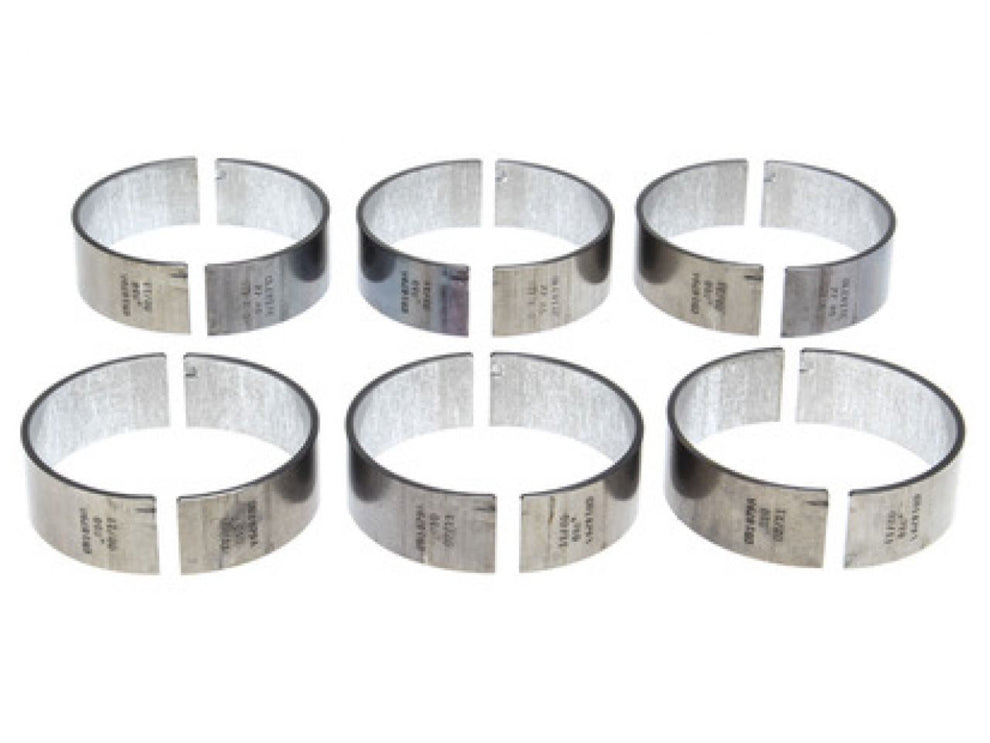

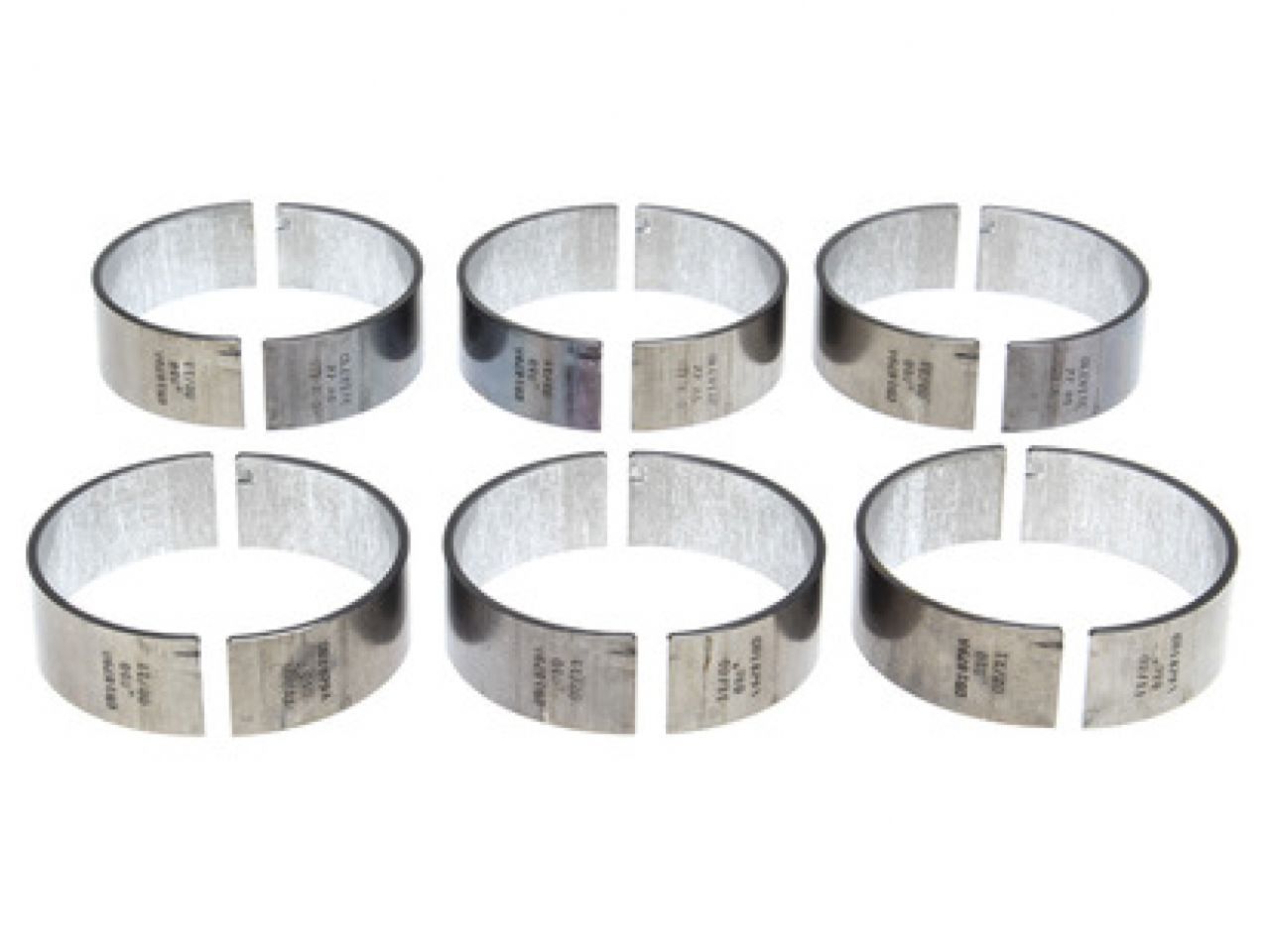

Clevite Connecting Rod Bearing Pair

Connecting Rod Bearing Pair

A Series (Aluminum)

Connecting Rods With Housing Bore Resized .002in Larger Than Stock

Material Grade OE Replacement

Size .010in Undersize

Specification:

Material: AL-5

Housing bore (min - max): 2.349 in - 2.35 in59.67 mm - 59.688 mm

Max. Length: 0.73 in18.542 mm

Vert. Oil Clearance (min - max): 0.0 in - 0.002 in0.01 mm - 0.058 mm

Shaft diameter (min - max): 2.204 in - 2.205 in55.992 mm - 56.007 mm

Wall Thickness (max): 0.072 in1.826 mm
