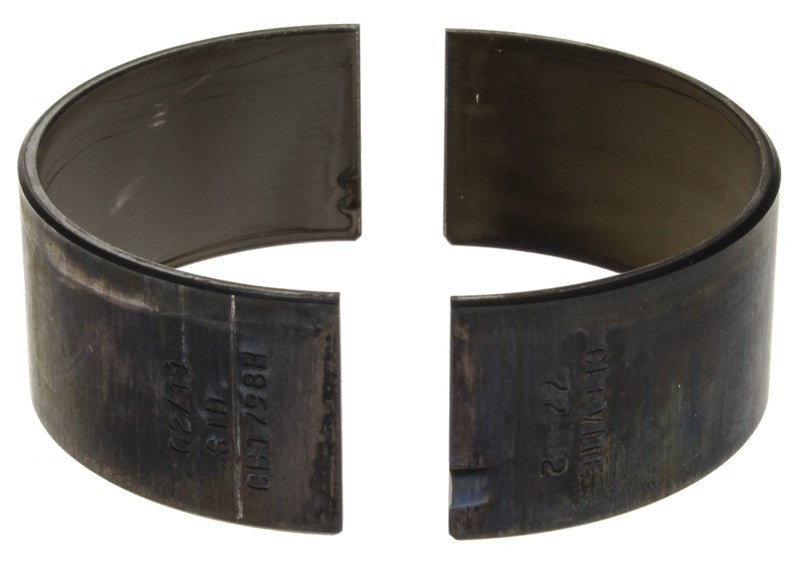

Clevite Connecting Rod Bearing Pair

Connecting Rod Bearing Pair

H-Series Performance

NASCAR Edition

No Dowel Hole In Cap Half

Specification:

Material: TM-77

Housing bore (min - max): 1.976 in50.19 mm - 50.196 mm

Max. Length: 0.755 in19.177 mm

Vert. Oil Clearance (min - max): 0.001 in - 0.002 in0.025 mm - 0.058 mm

Shaft diameter (min - max): 1.849 in - 1.85 in46.977 mm - 46.99 mm

Wall Thickness (max): 0.062 in1.587 mm
