Clevite Engine Bearings [Honda Prelude(1993-2001)]

Clevite Engine Bearings [Honda Prelude(1993-2001)]

sku: 0030E | mpn: CB1780HX
$44.06
$57.36 $44.06
Sale Sold out
Shipping calculated at checkout.

12 in stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

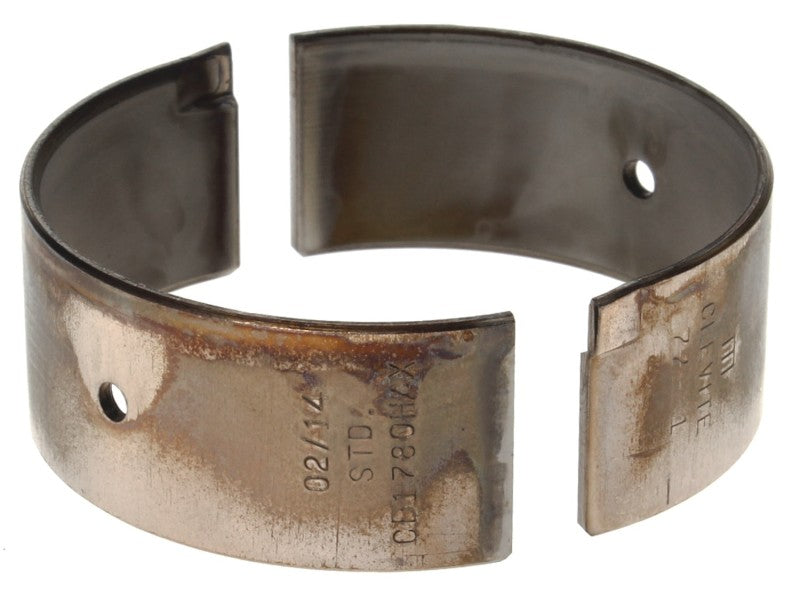

Connecting Rod Bearing Pair

  • H Series (Tri-Metal)
  • Material Grade High Performance
  • Size Standard
  • Suffix X - .001in Extra Oil Clearance

Specification:

  • Material: TM-77
  • Housing bore (min - max): 2.008 in - 2.009 in , 2.008 mm - 2.009 mm
  • Max. Length: 0.765 in , 0.765 mm
  • Vert. Oil Clearance (min - max): 0.002 in - 0.005 in , 0.002 mm - 0.005 mm
  • Shaft diameter (min - max): 1.889 in - 1.89 in , 1.889 mm - 1.89 mm
  • Wall Thickness (max): 0.058 in , 0.058 mm


Vehicle Fitments:

Year Make Model Submodel
1997 Acura CL Premium, Base
1993 Honda Accord 10th Anniversary
1996 Honda Accord 25th Anniversary Edition
1990 - 1997 Honda Accord DX, EX, LX
1991 - 1997 Honda Accord SE, EX-R
1996 - 1997 Honda Accord Value Package
1995 - 1997 Honda Odyssey LX, EX
1988 - 1990 Honda Prelude 2.0 S
1988 - 1991 Honda Prelude 2.0 Si
1988 - 1989 Honda Prelude 2.0 Si 4WS
1992 - 1996 Honda Prelude S
1991 - 1995 Honda Prelude SE
1990 - 1996 Honda Prelude Si
1990 - 1994 Honda Prelude Si 4WS
1990 - 1991 Honda Prelude Si ALB
1990 Honda Prelude SR
1997 - 2001 Honda Prelude Type SH, Base
1993 - 1996 Honda Prelude VTEC
2000 - 2009 Honda S2000 Base
2008 - 2009 Honda S2000 CR
1996 - 1997 Isuzu Oasis LS, S
View full details
