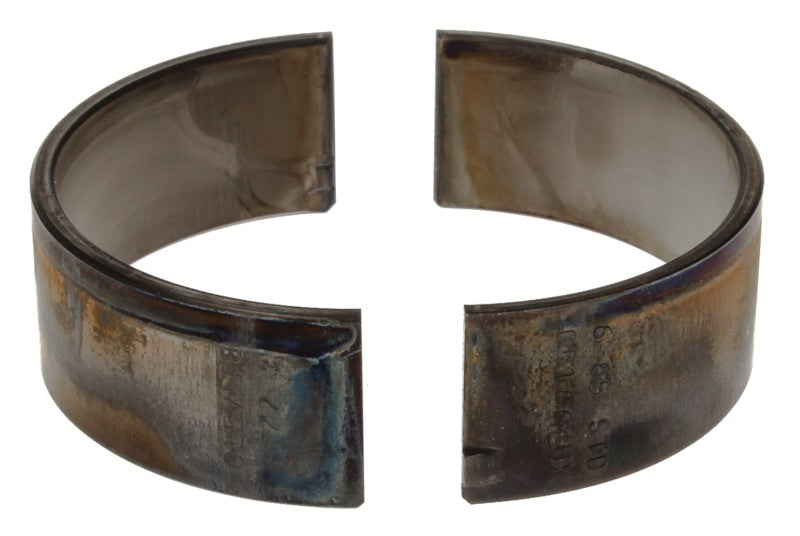

Clevite Connecting Rod Bearing Pair

Connecting Rod Bearing Pair

Bearing Wall .0005" Thinner For .0010" More Oil Clearance

H-Series Performance

No Dowel Hole In Cap Half

Specifications:

• Material: TM-77
• Housing bore (min - max): 2.008 in51.003 mm - 51.008 mm
• Max. Length: 0.655 in16.637 mm
• Vert. Oil Clearance (min - max): 0.002 in - 0.003 in0.046 mm - 0.079 mm
• Shaft diameter (min - max): 1.849 in - 1.85 in46.977 mm - 46.99 mm
• Wall Thickness (max): 0.078 in1.984 mm
