Clevite Chevy Small Block V8

Clevite Chevy Small Block V8

sku: 03LTR | mpn: CB1663HX
$33.05
$35.94 $33.05
Sale Sold out
Shipping calculated at checkout.

100 in stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

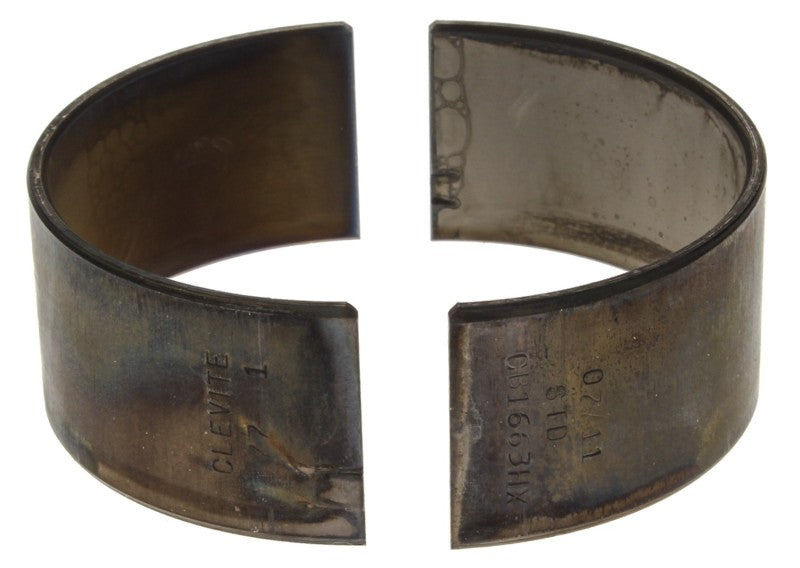

Connecting Rod Bearing Pair

  • Bearing Wall .0005" Thinner For .0010" More Oil Clearance
  • H-Series Performance
  • No Dowel Hole In Cap Half
  • Quad 4 Bearing Specifications

SPECIFICATION:

  • Material: TM-77
  • Housing bore (min - max): 2.015 in , 51.181 mm - 51.194 mm
  • Max. Length: 0.792 in
  • Vert. Oil Clearance (min - max): 0.002 in - 0.004 in
  • Shaft diameter (min - max): 1.889 in , 47.968 mm - 47.981 mm
  • Wall Thickness (max): 0.062 in
