• Clevite Chevy Small Block V8 CB1663H User 1
1 1
Clevite Authorized Dealer

Clevite Chevy Small Block V8

Clevite Chevy Small Block V8

sku: 06EH1 | mpn: CB1663H
$39.69
$39.69 $39.69
Sale Sold out
Shipping calculated at checkout.

18 in stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

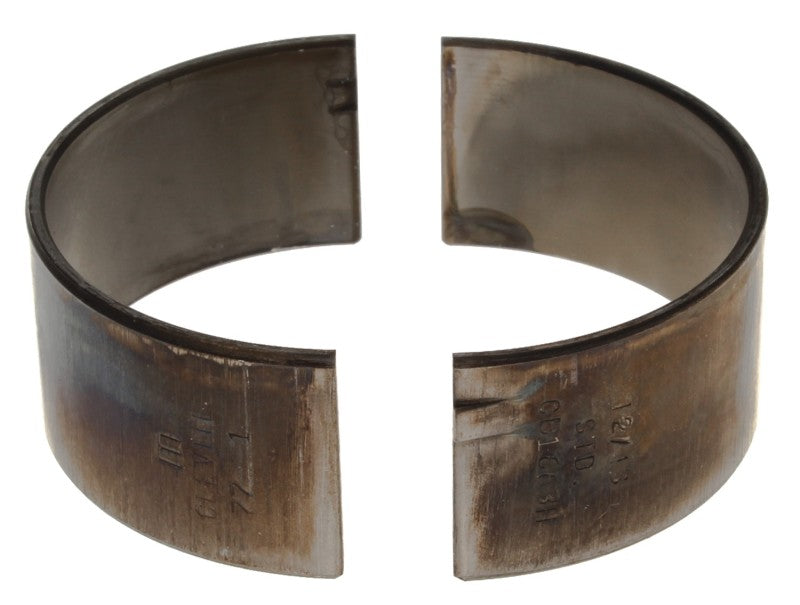

Connecting Rod Bearing Pair

  • H-Series Performance with TriArmor
  • No Dowel Hole In Cap Half
  • Quad 4 Bearing Specifications

SPECIFICATION:

  • Material: TM-77
  • Housing bore (min - max): 2.015 in,51.181 mm - 51.194 mm
  • Max. Length: 0.792 in,20.117 mm
  • Vert. Oil Clearance (min - max): 0.001 in - 0.003 in,0.025 mm - 0.066 mm
  • Shaft diameter (min - max): 1.889 in,47.968 mm - 47.981 mm
  • Wall Thickness (max): 0.062 in,1.587 mm
View full details
