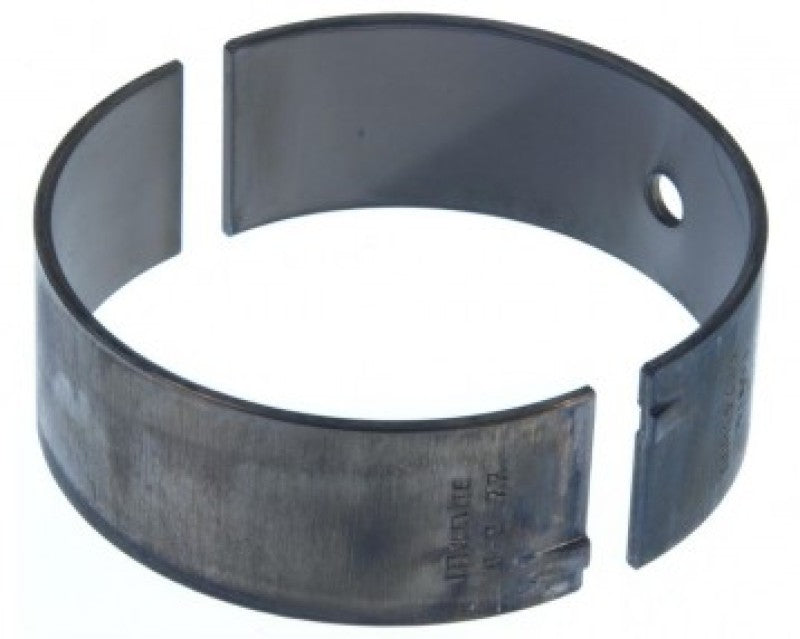

Clevite Connecting Rod Bearing Pair

Connecting Rod Bearing Pair

• Material: TM-77
• Housing bore (min - max): 2.952 in - 2.953 in74.988 mm - 75.014 mm
• Max. Length: 1.33 in
• Vert. Oil Clearance (min - max): 0.002 in - 0.005 in0.041 mm - 0.132 mm
• Shaft diameter (min - max): 2.755 in - 2.757 in69.98 mm - 70.02 mm
• Wall Thickness (max): 0.097 in
