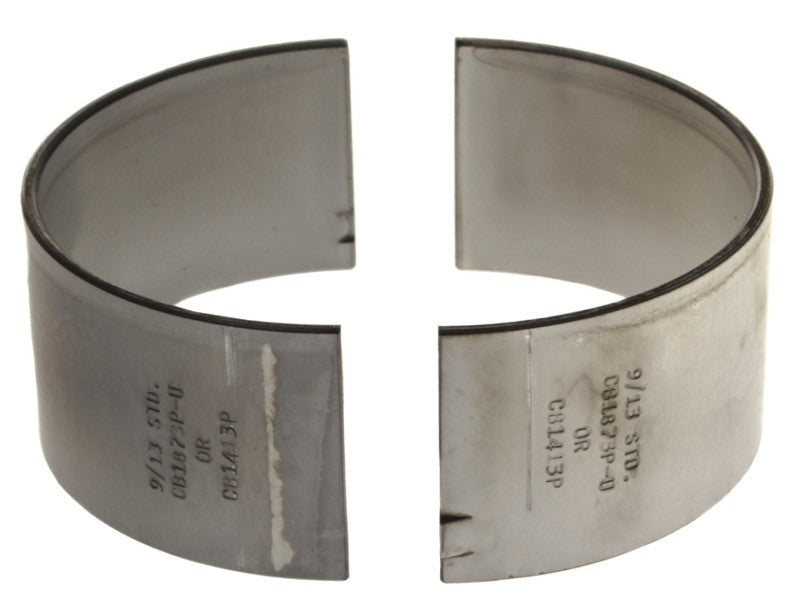

Clevite CUMMINS B SERIES

Specifications
Material
TM-112
Size
Standard
Housing bore (min - max)
2.873 in - 2.874 in
72.986 mm - 73.012 mm
Max. Length
1.225 in
31.11 mm
Vert. Oil Clearance (min - max)
0.002 in - 0.004 in
0.038 mm - 0.114 mm
Shaft diameter (min - max)
2.716 in - 2.717 in
68.986 mm - 69.011 mm
Wall Thickness (max)
0.077 in
1.968 mm

Vehicle Fitments:
