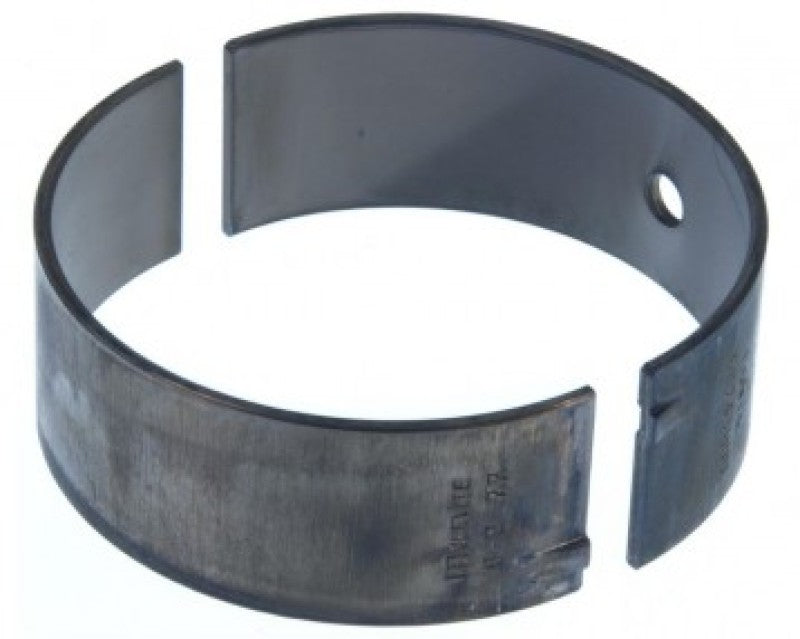

Clevite Connecting Rod Bearing

Connecting Rod Bearing Pair

• Material: TM-112
• Housing bore (min - max): 3.191 in - 3.192 in81.051 mm - 81.077 mm
• Max. Length: 1.39 in35.306 mm
• Vert. Oil Clearance (min - max): 0.001 in - 0.004 in0.025 mm - 0.091 mm
• Shaft diameter (min - max): 2.998 in - 2.999 in76.149 mm - 76.175 mm
• Wall Thickness (max): 0.096 in2.426 mm
