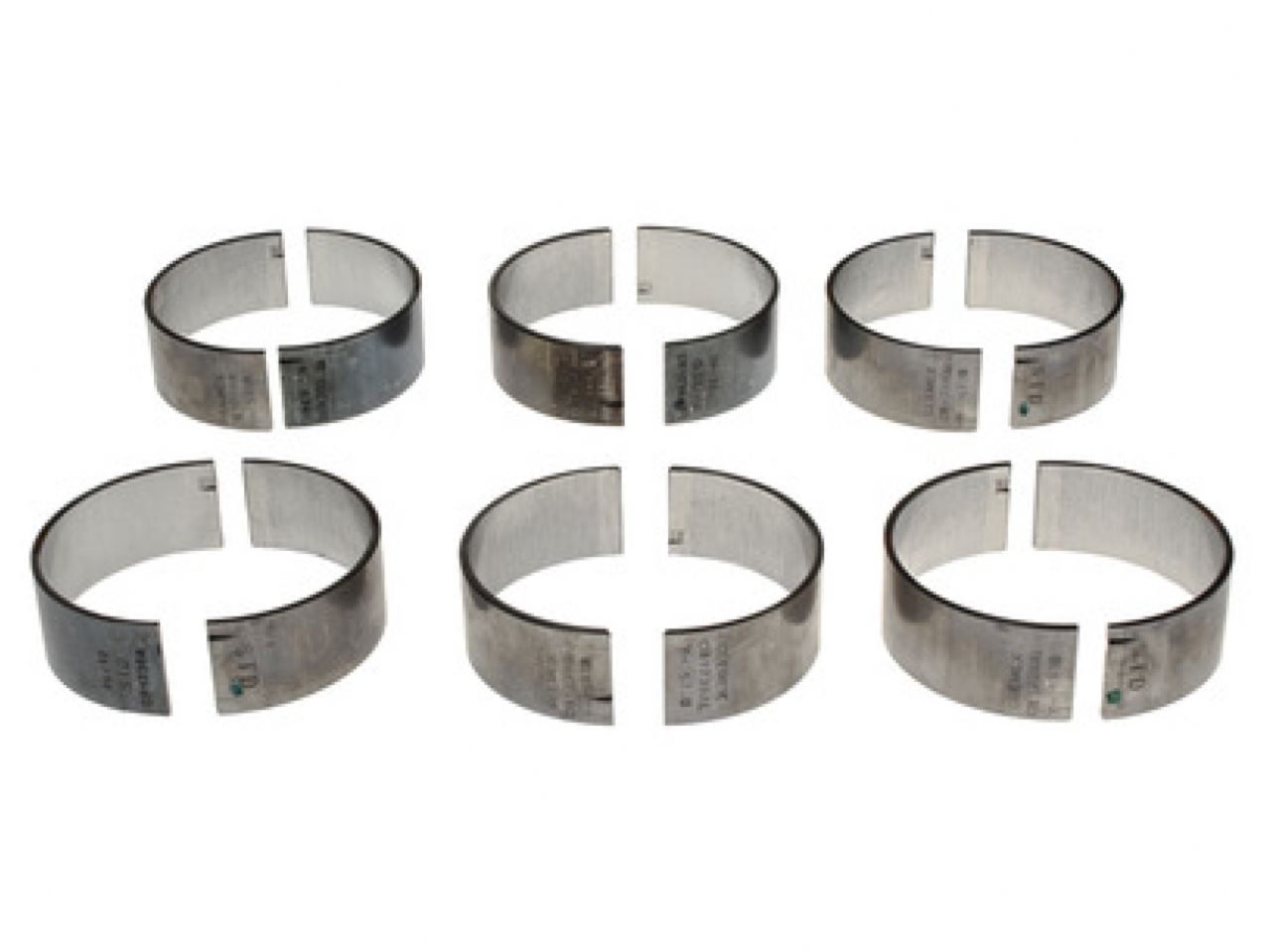

Clevite Connecting Rod Bearing Set

Connecting Rod Bearing Pair

A Series (Aluminum)
Material Grade OE Replacement
Size Standard

Specification:

Material: AL-5

Housing bore (min - max): 2.124 in - 2.126 in53.962 mm - 53.988 mm

Max. Length: 0.721 in18.301 mm

Vert. Oil Clearance (min - max): 0.0 in - 0.004 in0.013 mm - 0.089 mm

Shaft diameter (min - max): 1.998 in - 1.999 in50.759 mm - 50.785 mm

Wall Thickness (max): 0.062 in

Journal width: 1.582 mm
