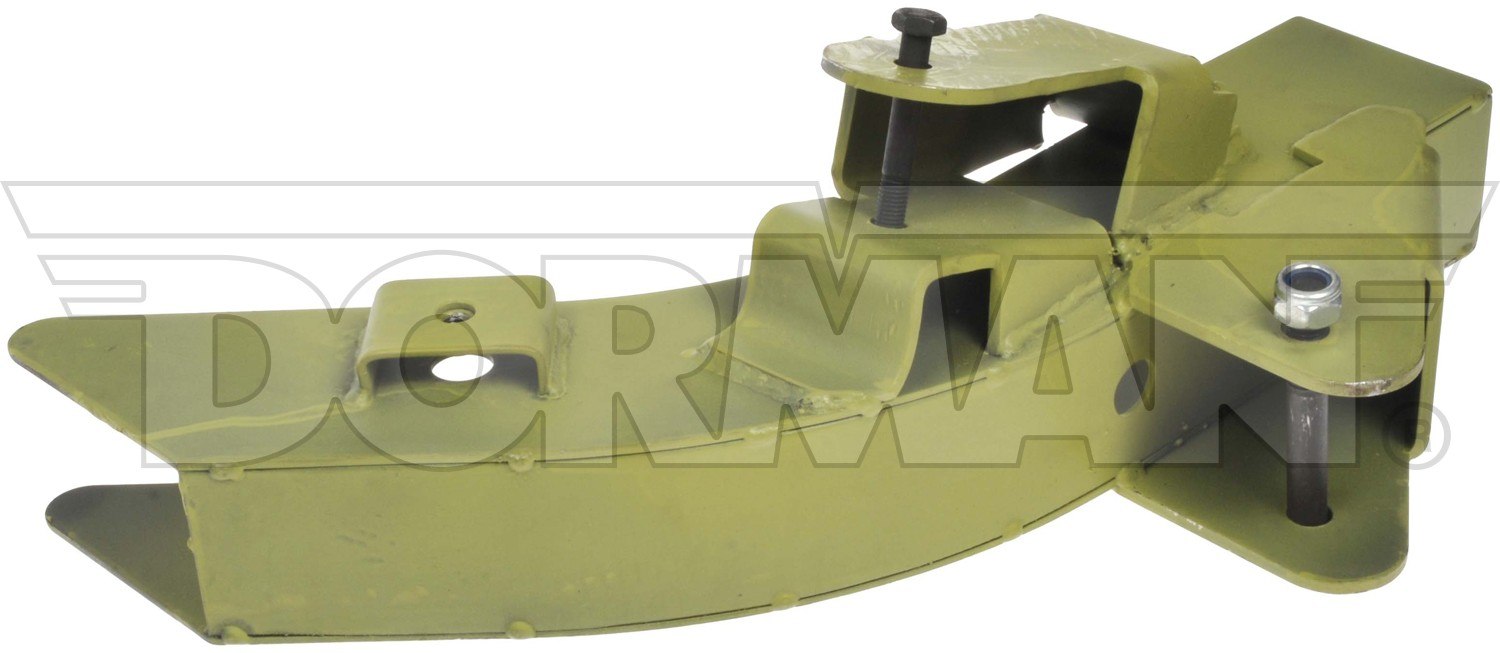

Dorman Chassis Frame Repair Kit

Chassis Frame Repair Kit

This Frame Repair Kit includes everything required to repair this section of rusted or damaged chassis frame. Made of heavy-gauge steel and finished in weldable primer, this frame repair kit includes all original equipment hardware mounting positions.

• Saves money - replace only damaged frame section, not the entire frame
• Improved design - re-engineered with improved drainage to prevent future corrosion buildup
• Restores vehicle performance - ensures proper suspension alignment for predictable handling
• Vehicle tested - has undergone on-vehicle testing to ensure proper fit and performance

Application Summary: Jeep Wrangler 2003-97

Product Specifications

Bolt Grade: 10.9

Bracket Depth: 73 mm

Bracket Included: Yes

Bracket Length: 490 mm

Bracket Shape: Rectangular

Bracket Width: 173 mm

Color: Weldable Primer

Configuration: One Piece

Cutting Required: Yes

Drilling Required: No

Material: Steel

Material Thickness: 4.6 mm

Package Contents: 1 Frame Bracket; 2 Bolts; 2 Nuts

Rivets Included: No

Screws Included: Yes

Universal Or Specific Fit: Specific

Vehicle Fitments:
