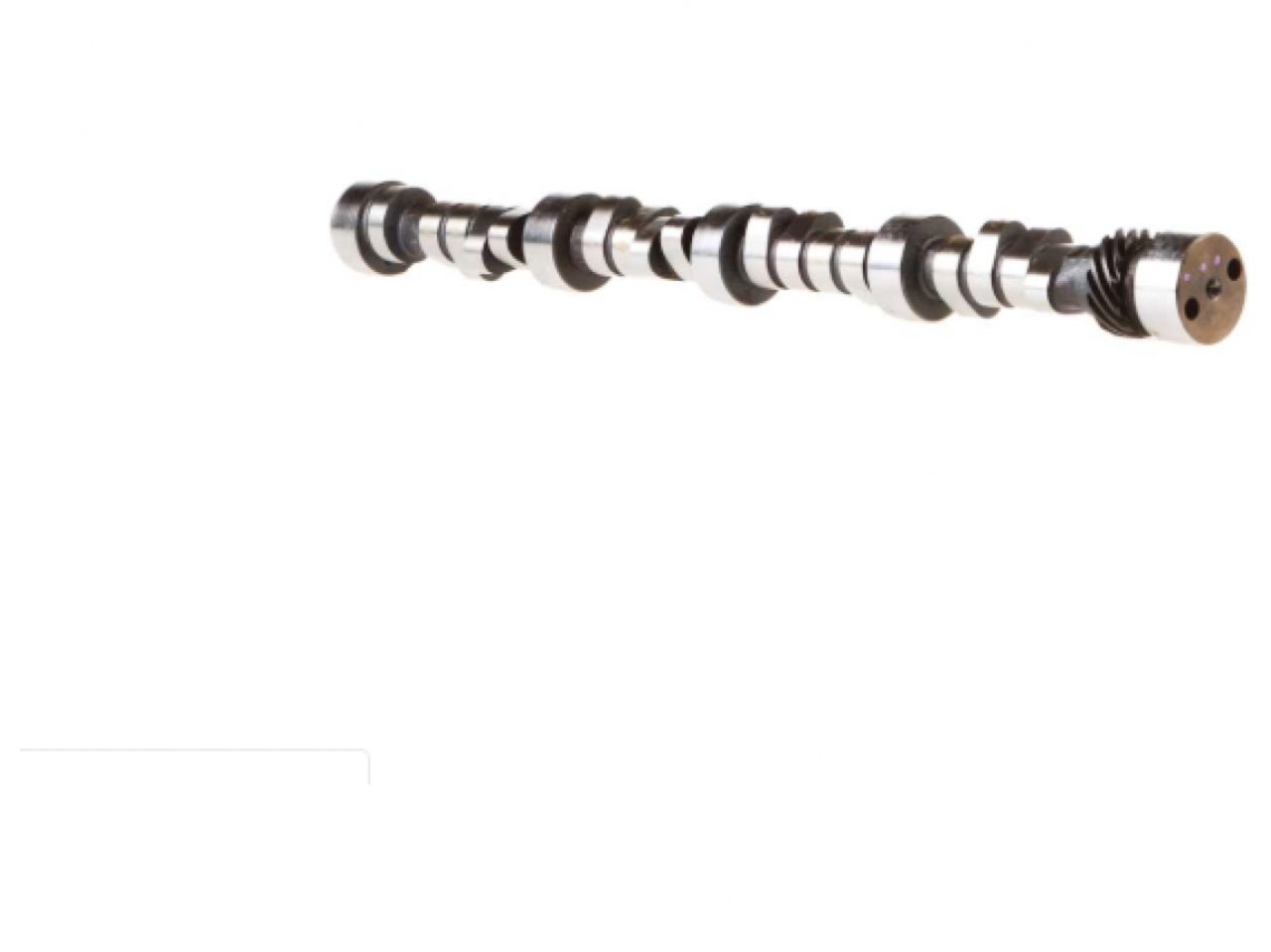

Melling Camshaft Engine

Class II camshaft (215°-230°). Fair idle quality. Good low to mid range torque and horsepower. Will work
with stock or modified engine. For use with manual or automatic transmission. Possibly lower vacuum than
stock. Melling offers a full line of high performance camshafts for domestic cars, light trucks, import
vehicles, marine and high performance engines. Melling offers specific high performance camshaft choices
for street, RV, strip and circle track racing applications. Melling camshafts supply the performance to suit
your horsepower and torque requirements wherever and whenever you want it. Melling high performance
camshafts are developed, engineered, tested and manufactured with the highest standards of quality and
materials.

Product Attributes:

• Advertised Exhaust Duration: 287 deg
• Advertised Intake Duration: 283 deg
• Basic Operating RPM Range: 3000 RPM
• Cam Type: Hydraulic Roller
• Computer Controlled Compatible: No
• Exhaust Duration at .050 inch Lift: 224 deg
• Exhaust Valve Lift: 0.502 in
• Exhaust Valve Lift with Factory Rocker Arm Ratio: 1.50 in
• Intake Duration at .050 Inch Lift: 220 deg
• Intake Valve Lift: 0.495 in
• Intake Valve Lift with Factory Rocker Arm Ratio: 1.50 in
• Lifter Type: Hydraulic Roller
• Lobe Separation: 110 deg
