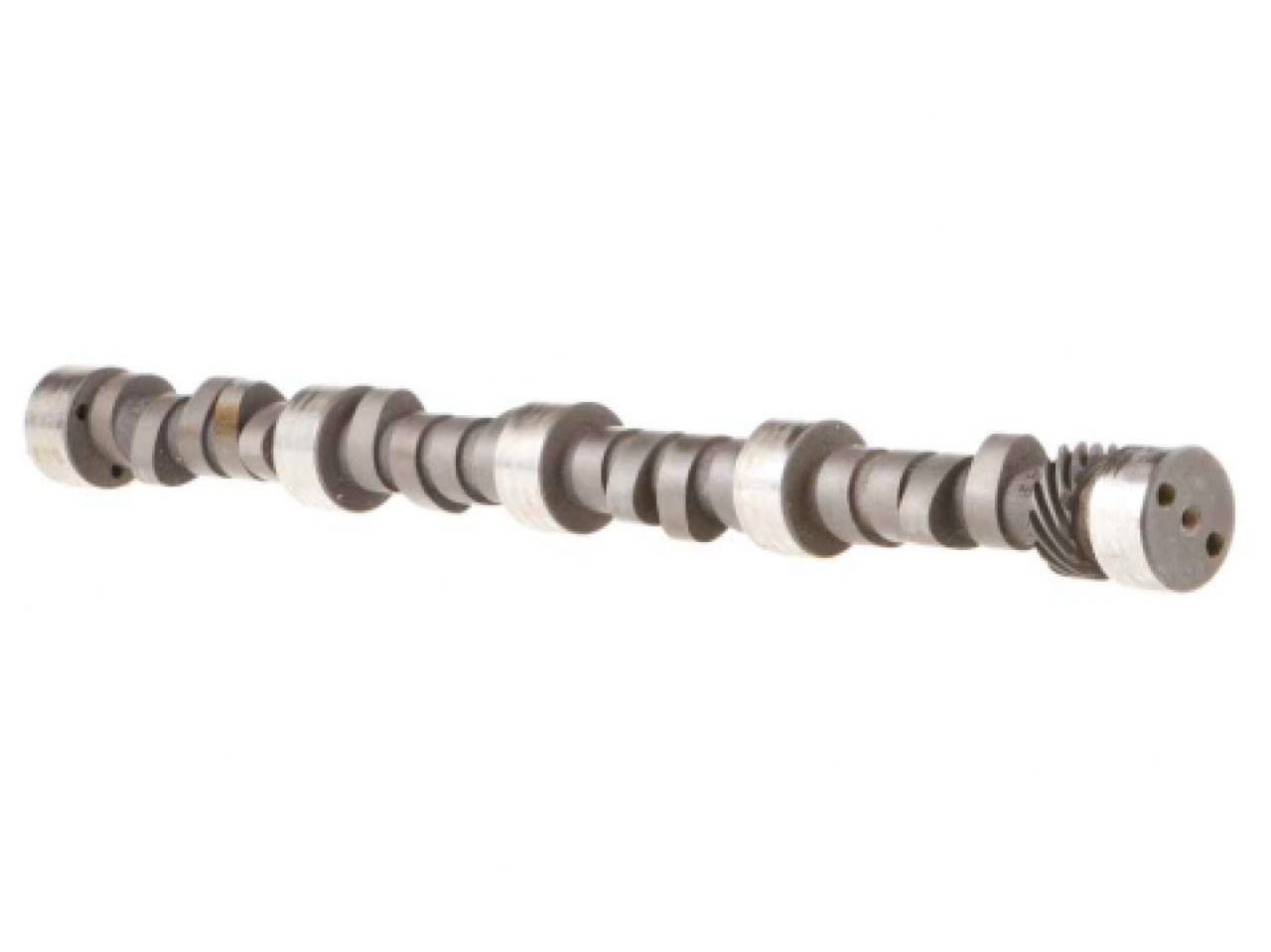

Melling Camshaft-Engine

Class IV camshaft (245°­UP). Rough idle quality. Mid to high rpm torque and horsepower. For serious racing. Need proper selection of rear axle ration and improvements in carburation and exhaust system. For use with manual transmission or automatic with very high stall converter. Will not have enough vacuum for power accessories. Melling offers a full line of high performance camshafts for domestic cars, light trucks, import vehicles, marine and high performance engines. Melling offers specific high performance camshaft choices for street, RV, strip and circle track racing applications. Melling camshafts supply the performance to suit your horsepower and torque requirements wherever and whenever you want it. Melling high performance camshafts are developed, engineered, tested and manufactured with the highest standards of quality and materials.

Specifications

Advertised Exhaust Duration: 322 deg

Advertised Intake Duration: 322 deg

Basic Operating RPM Range: 5000 RPM

Cam Type: Mechanical Flat Tappet

Computer Controlled Compatible: No

Exhaust Duration at .050 inch Lift: 270 deg

Exhaust Valve Lash: .026 in

Exhaust Valve Lift: 0.580 in

Exhaust Valve Lift with Factory Rocker Arm Ratio: 1.70 in

Intake Duration at .050 Inch Lift: 264 deg

Intake Valve Lash: .022 in

Intake Valve Lift: 0.559 in

Intake Valve Lift with Factory Rocker Arm Ratio: 1.70 in

Lifter Type: Solid

Lobe Separation: 112 deg
