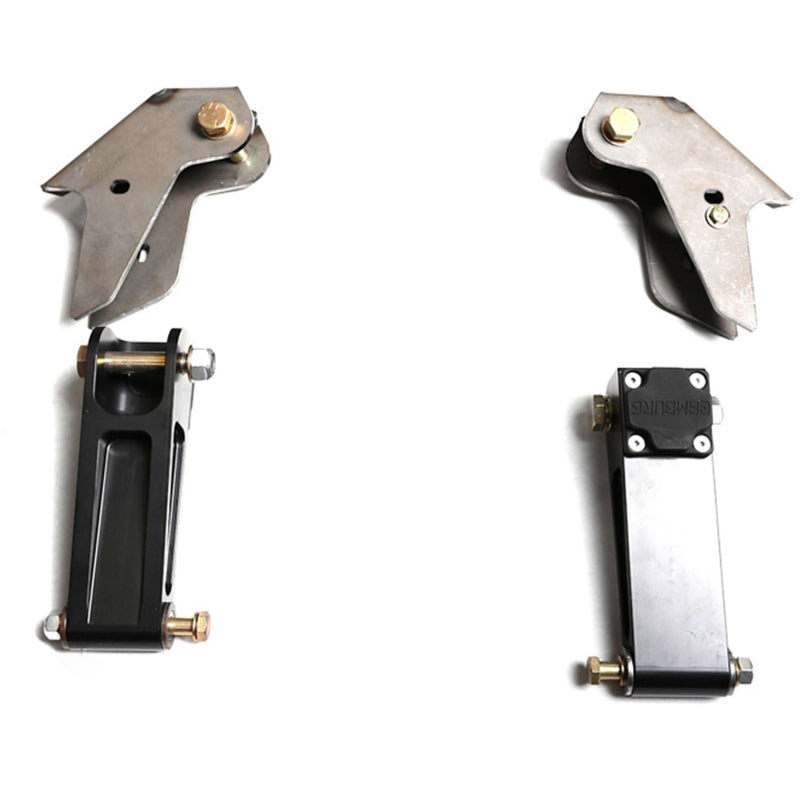

Camburg Toyota Tacoma 24-25 Front Slapper Bump Stop Mount Kit CAM-310289

CMB Suspension Bump Stop Mounting Kits

Suspension Bump Stop Mounting Kit

Need further assistance? Call 1-714-848-8880.

Adding bump stops to our Camburg Toyota Tacoma lower control arms is easy with our Slapper Bump Stop mount kit since the lower arms are already tabbed for it. Adding a bump stop adds a ton more control and bottoming resistance. This allows for a soft plush ride through the small stuff that doesn’t bottom out easily through the bigger hits and g-outs. This is a great add-on that makes a significant improvement off-road without taking away from ride quality on the street. Why a slapper arm setup you ask? The main benefit is it allows the air bump to strike further outboard on the lower arm making it much more effective and efficient. We’re able to keep the motion ratio geometry consistent through the bottoming out travel so there is constant contact with the lower arm and the bump stop isn’t swiping the lower arm. The bump stop only comes into play toward bottoming and allows free movement in the “ride zone" so the suspension is more active in that range. With the slapper arm design, we’re also able to incorporate a custom rubber pad to reduce noise on contact. Designed for our Camburg, FOX or King slapper bump stops with eyelets top and bottom, they work more like an air shock than your typical bump stop that blows through the travel. Last but not least, it’s a really cool design that just works. The slapper arms are CNC machined from billet 6061 aluminum, Type III hard anodized black and pivot on bearing bronze bushings. We supply aircraft AN bolts for the upper and lower mounts that have the proper grip/shoulder length for maximum strength. Mounts come raw as they need to be welded on. We recommend spraying them with black Steel-IT after welding.

Toyota Tacoma 2wd/4wd '24-25 Front Slapper Bump Stop Mount Kit Only
