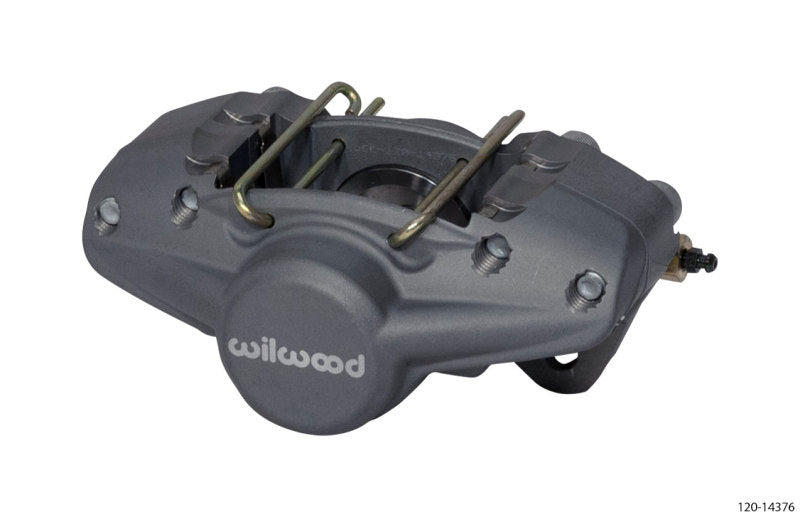

WLD-20/ST
WLD-20 racing calipers provide the ultimate in strength, weight savings, and high efficiency brake clamping for F/F and all other formula category road race vehicles configured for use with the traditional LD20 lug mount style calipers. The calipers feature a high strength, light-weight 2.3 pound forged aluminum body fitted with machined stainless steel pistons in the standard WLD20 model, or heat-blocking Thermlock® pistons in the WLD20/ST models. All WDL20 series calipers utilize the same mounting centers, height and offset as the traditional LD20 calipers. The calipers accept WIlwood type 5214 brake pads, or any brake pad made to fit the original LD20 models.
Specifications
| Pistons |
|---|
| Piston Count: |
2 |
| Piston Area (in²): |
2.40 |
| Piston Type: |
Thermlock |
| Dust Boot: |
No |
| Rotor Dimensions |
|---|
| Rotor Width(in): |
0.38 |
| Rotor Diameter(in): |
10 |
| Pad Dimensions |
|---|
| Pad Area (in²): |
4.76 |
| Pad Volume (in³): |
2.62 |
| Duty Rating & Material |
|---|
| Material: |
Aluminum |
| Colors & Finish |
|---|
| Color: |
Ano |
| Finish: |
Type III Ano |
| Mounting |
|---|
| Mount Center(in): |
3.5 |
| Mount Side: |
Universal |
| Mount Type: |
Lug |
| Rotor Compatibility |
|---|
| Rotor Width(in): |
0.38 |
| Maximum Rotor Width(in): |
0.38 |
| Minimum Rotor Width(in): |
0.25 |
| Maximum Rotor Diameter(in): |
10 |
| Minimum Rotor Diameter(in): |
10 |
| Brake Pad Specifications |
|---|
| Brake Pad Type 1: |
5214 |
| Total Pad Area (in²): |
4.76 |
| Total Pad Volume (in³): |
2.62 |
| Piston Specifications |
|---|
| Piston 1 Bore(in): |
1.75 |
| Total Piston Area (in²): |
2.40 |
| Mounting Specifications |
|---|
| Mount Type: |
Lug |
| Mount Side: |
Universal |
| Mount Center(in): |
3.5 |
| Mount Hole Size(in): |
0.39 |
| Mount Height(in): |
1.96 |
| Inlet Thread Size: |
3/8-24 |
