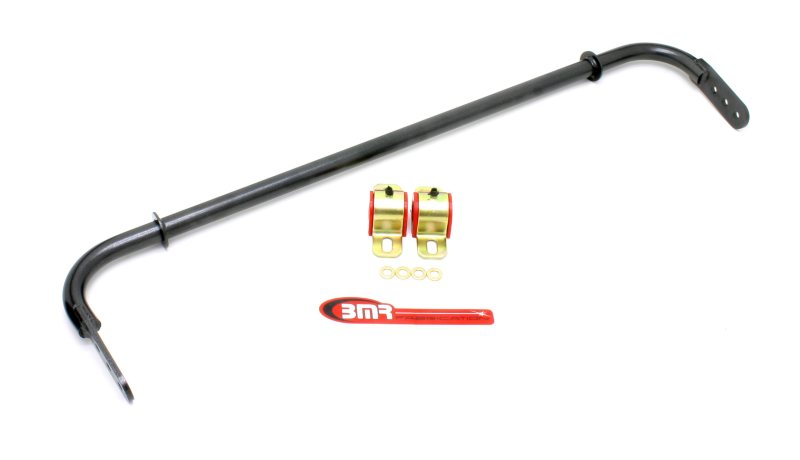

BMR Suspension Sway Bars SB017H The two primary functions of sway bars are to control body roll and to determine the understeer or oversteer behavior of a vehicle. Stock sway bars have low torsional spring rates because they are manufactured from small diameter bar stock or tubing. BMR Suspension?s SB017 rear sway bar was designed by factoring in the vehicle weight, application, motion ratio, coil spring rate, and adjustability requirements. Manufactured from heavy-wall 25mm DOM tubing, the SB017 is cold formed to better resist torsional fatigue and retain its "memory" far longer than the hot-formed bars used by many competitors. The sway bar is CNC-formed for exact manufacturing tolerances and repeatable high quality. Thrust washers are welded to the bar to locate the sway bar bushing mounts. This is critical as it properly locates the sway bar and prevents lateral movement during hard cornering maneuvers. The SB017 attaches to your Camaro with 88-durometer polyurethane bushings, reducing the deflection from the stock rubber bushings. These bushings are molded from 88-durometer, low-deflection, polyurethane, and are internally fluted to keeps grease in the bushing. The fabricated laser cut, TIG-welded steel sway bar end links are reinforced to minimize deflection. The sway bar is 3-way adjustable to tune the amount of torsional spring rate and to determine the handling characteristics (understeer/oversteer) of the vehicle. Sway Bar Kit With Bushings, Rear, Adjustable, Hollow 25mm BMR Suspension designed the SB017 sway bar kit for street performance, autocross, and road race applications. BMR 10-11 5th Gen Camaro Rear Hollow 25mm Adj. Sway Bar Kit w/ Bushings - Black Hammertone
Vehicle Fitments:
| Year |
Make |
Model |
Submodel |
| 2011 - 2012 |
Chevrolet |
Camaro |
1SS, 1LT, 2SS |
| 2010 - 2015 |
Chevrolet |
Camaro |
SS, LS, LT |
| 2014 - 2015 |
Chevrolet |
Camaro |
Z/28 |
| 2012 - 2015 |
Chevrolet |
Camaro |
ZL1 |
