BLOX Racing K-swap header - EG/EK/DC T304 Stainless Steel

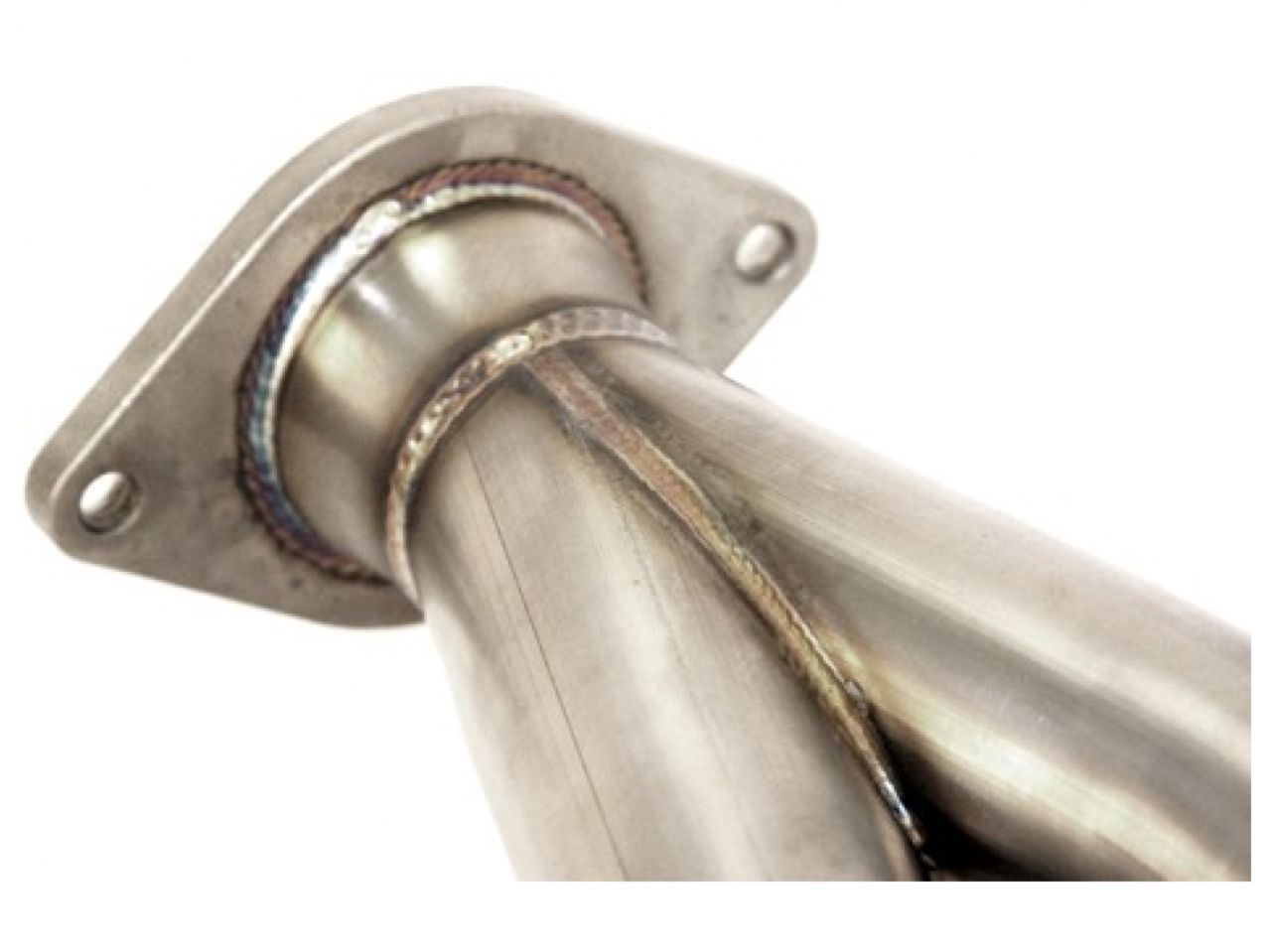

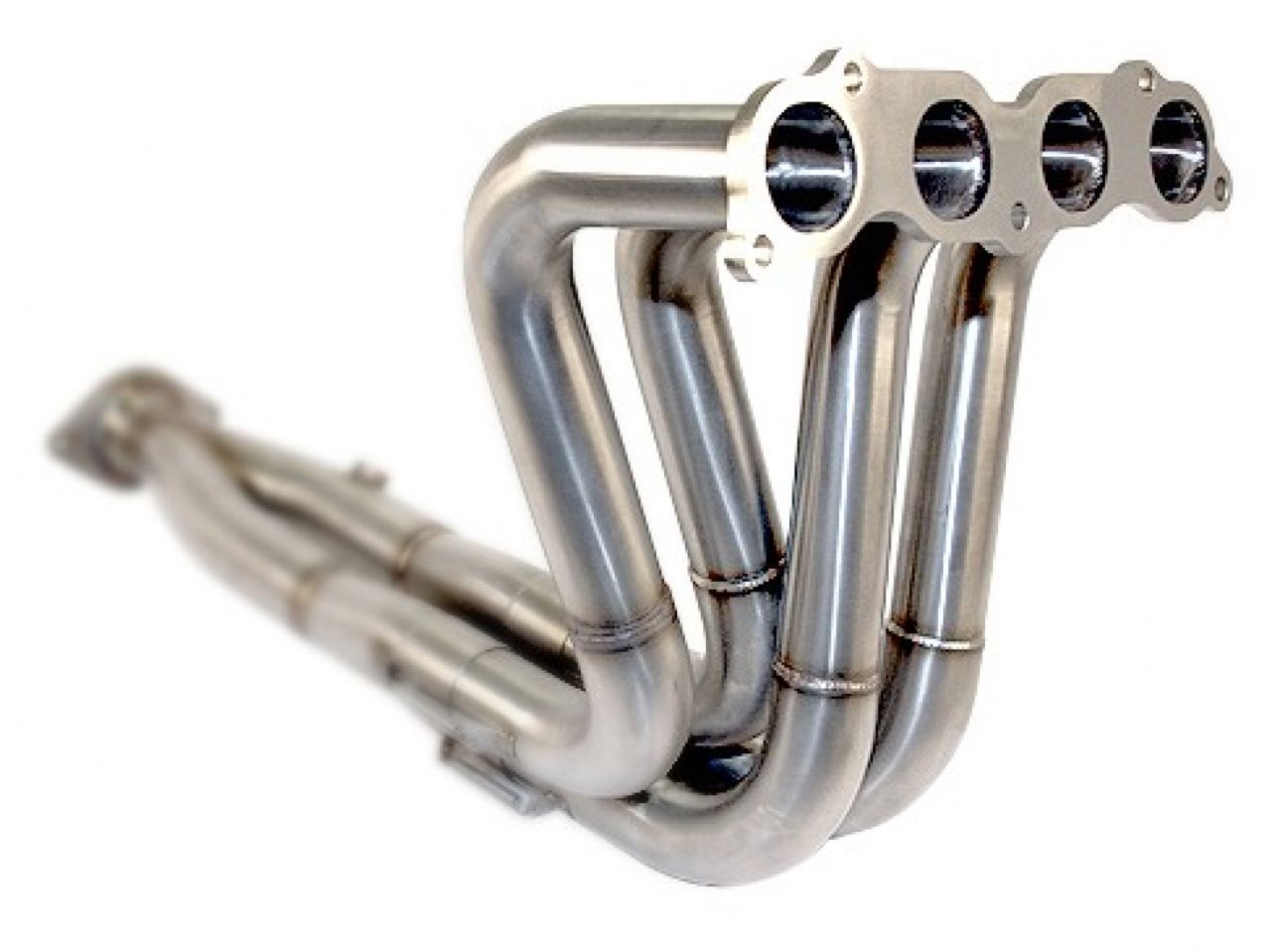

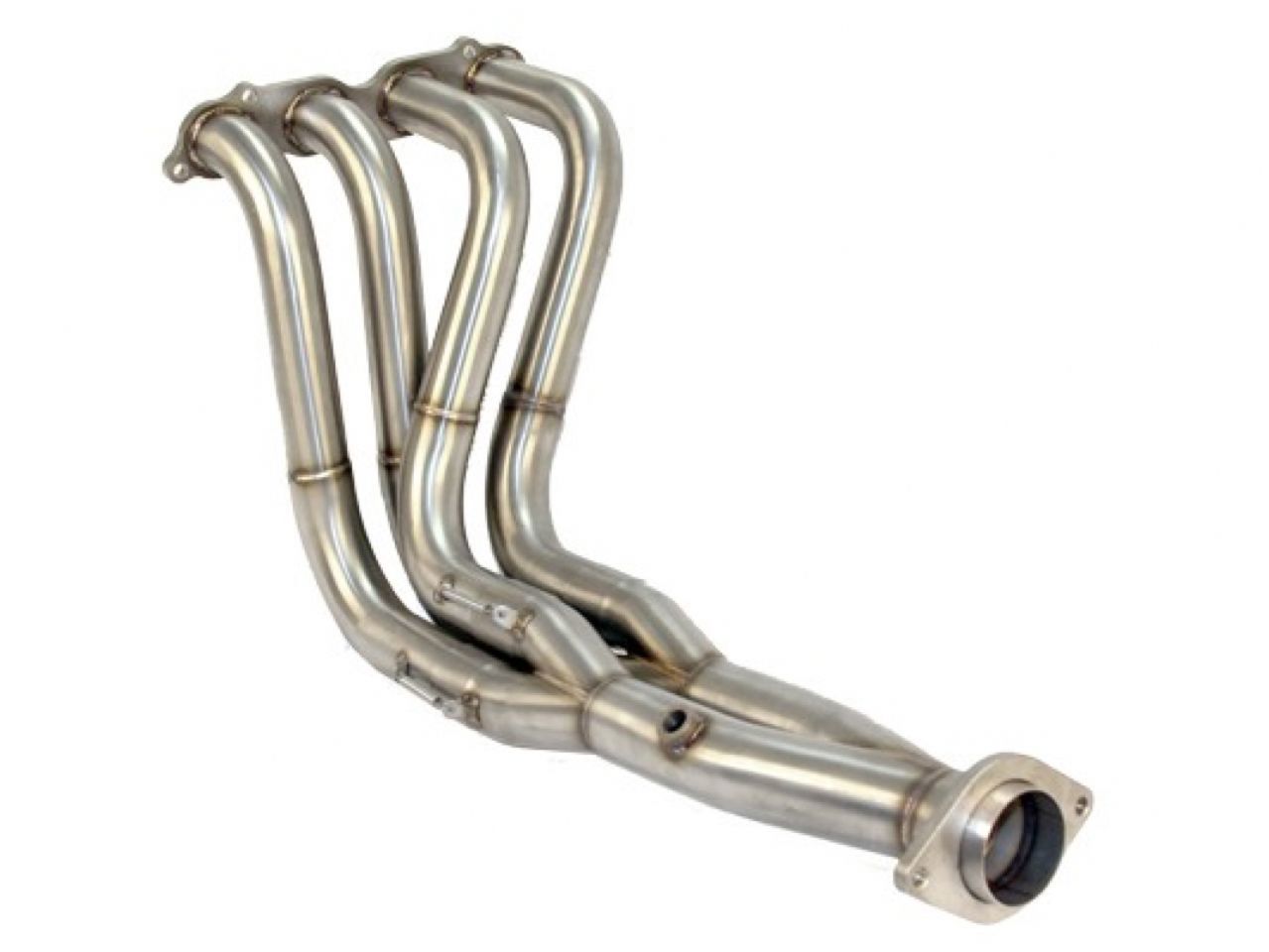

BLOX Racing K-Swap exhaust headers is designed to maximize the engine's spent exhaust gas and broaden the powerband, increasing horsepower and torque throughout the entire RPM range. This 4-2-1 header is constructed out of 16-gauge, T304 stainless steel and features equal-length, mandrel-bent tubing. The piping and CNC-machined flanges are then TIG-welded for additional strength and reliability.

With K-series engine swaps becoming more affordable, BLOX Racing's K-Swap exhaust header is a must-have upgrade. The header is properly designed to provide the necessary ground, oil pan and shift box clearances. There is also no need to modify or cut the chassis' front cross member prior or during installation. BLOX Racing K-Swap exhaust header is designed to fit Honda EG, EK and DC chassis with K20 or K24 engine swaps using HASportT or similar style engine mount kits.

The diameter and lengths of the piping have been extensively optimized and dyno-tested to support over 280WHP naturally-aspirated and over 400WHP supercharged. BLOX Racing also offers K-series camshafts and valvetrain components and throttle bodies, including RBC and K2B throttle body adapters and TPS.

FOR OFF ROAD USE ONLY

Step-up Piping Sizes (OD)
49mm - 51mm - 56mm

Features
T304 stainless steel
Mandrel-bent, TIG-welded

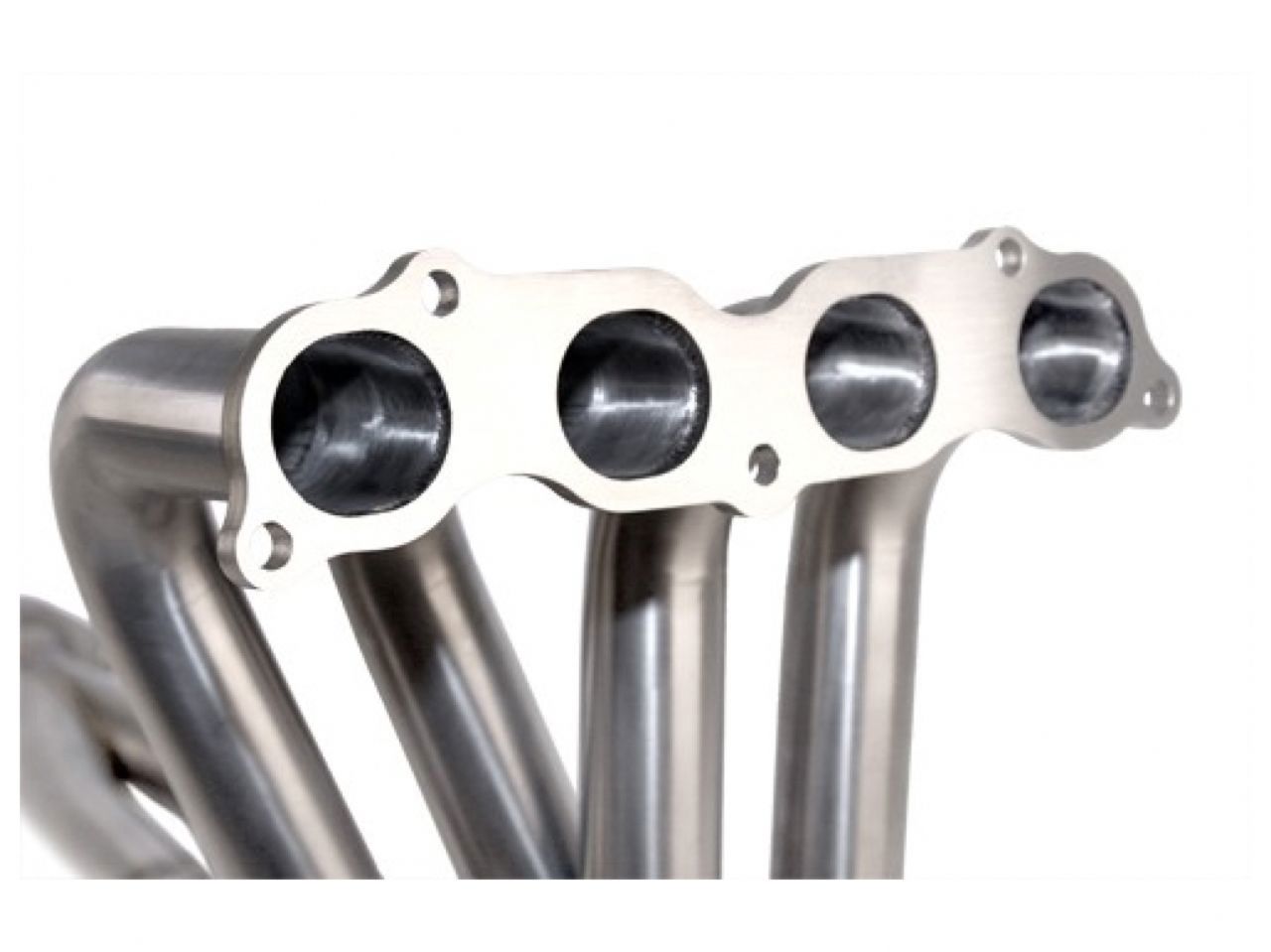

10mm thick cylinder head flange
8mm thick collector flange
2-piece, includes header springs
4-2-1 Tri-Y design
15.5 lbs

Vehicle Fitments:
