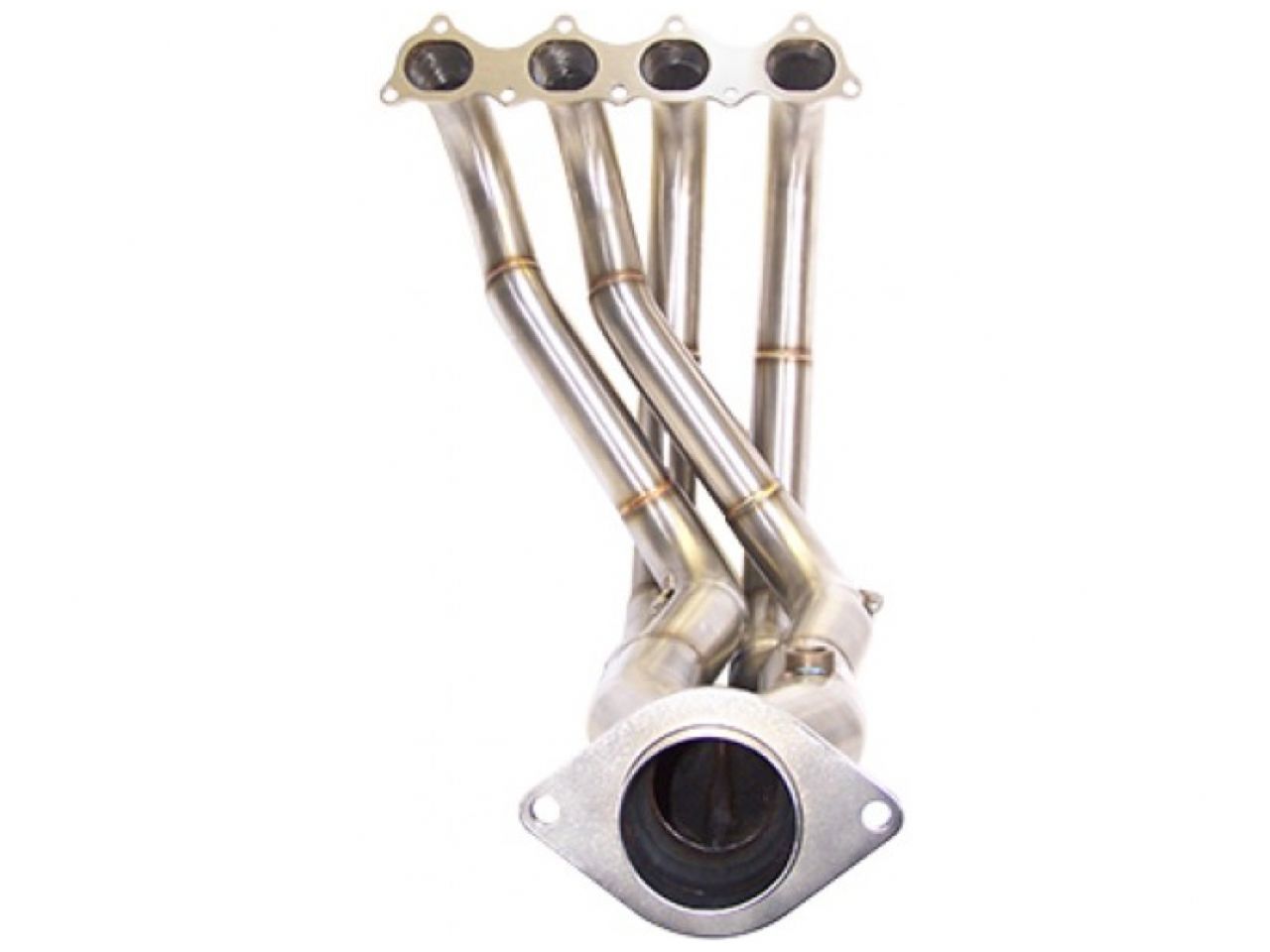

BLOX Racing Max-Flo 4-2-2-1 Tri-Y Exhaust Header, T304
BLOX Racing Max-Flo [commonly referred to as 'big tube'] exhaust headers are specifically intended for Honda B-series with high compression 1.8L set-ups and other builds between 2.0L-2.2L in displacement. Max-Flo exhaust headers are 2-piece and feature a 4-2-2-1 (Tri-Y) design using innovative stepped exhaust tubing, which are larger when compared to its Hi-Flo little brother.

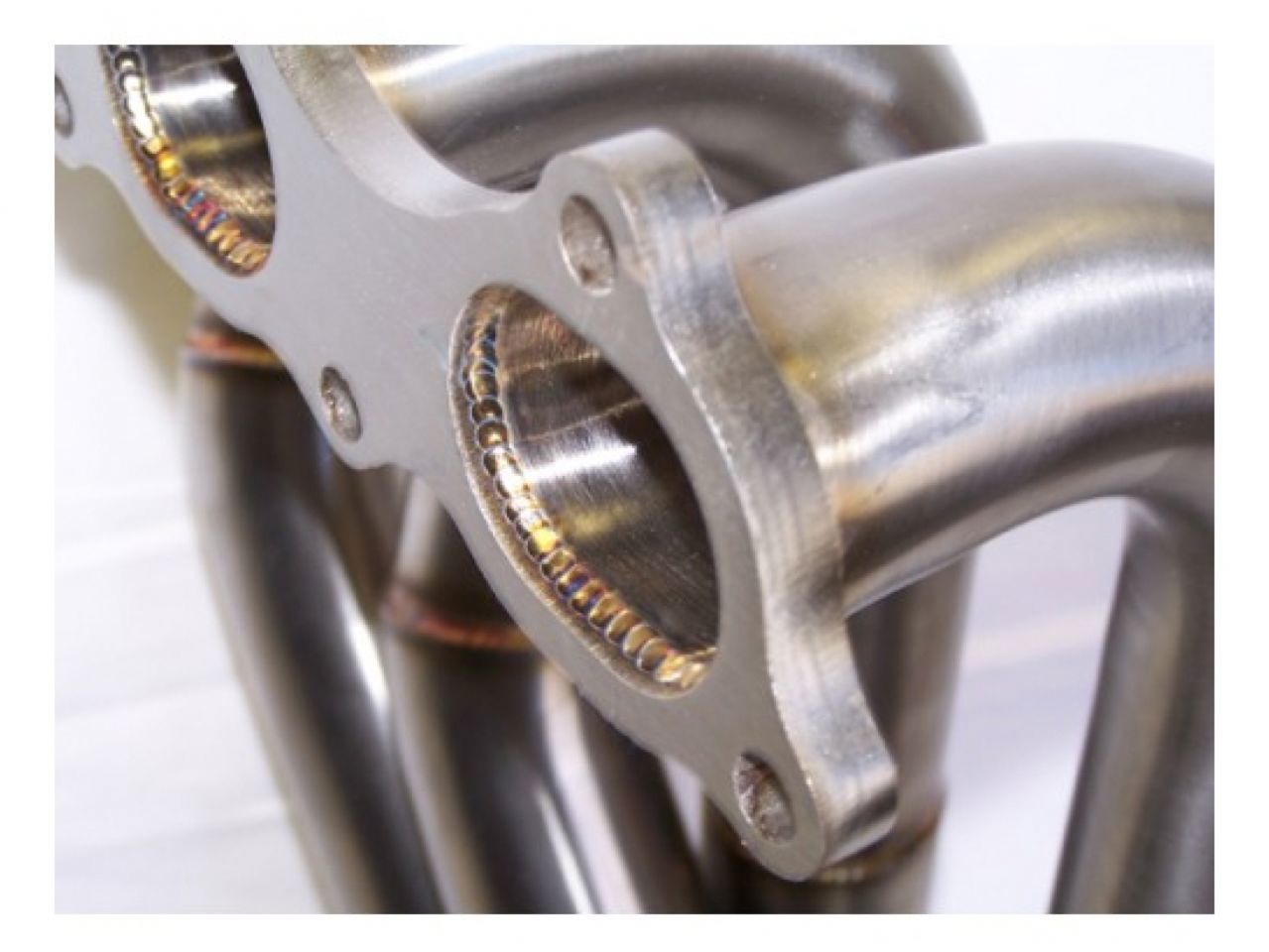

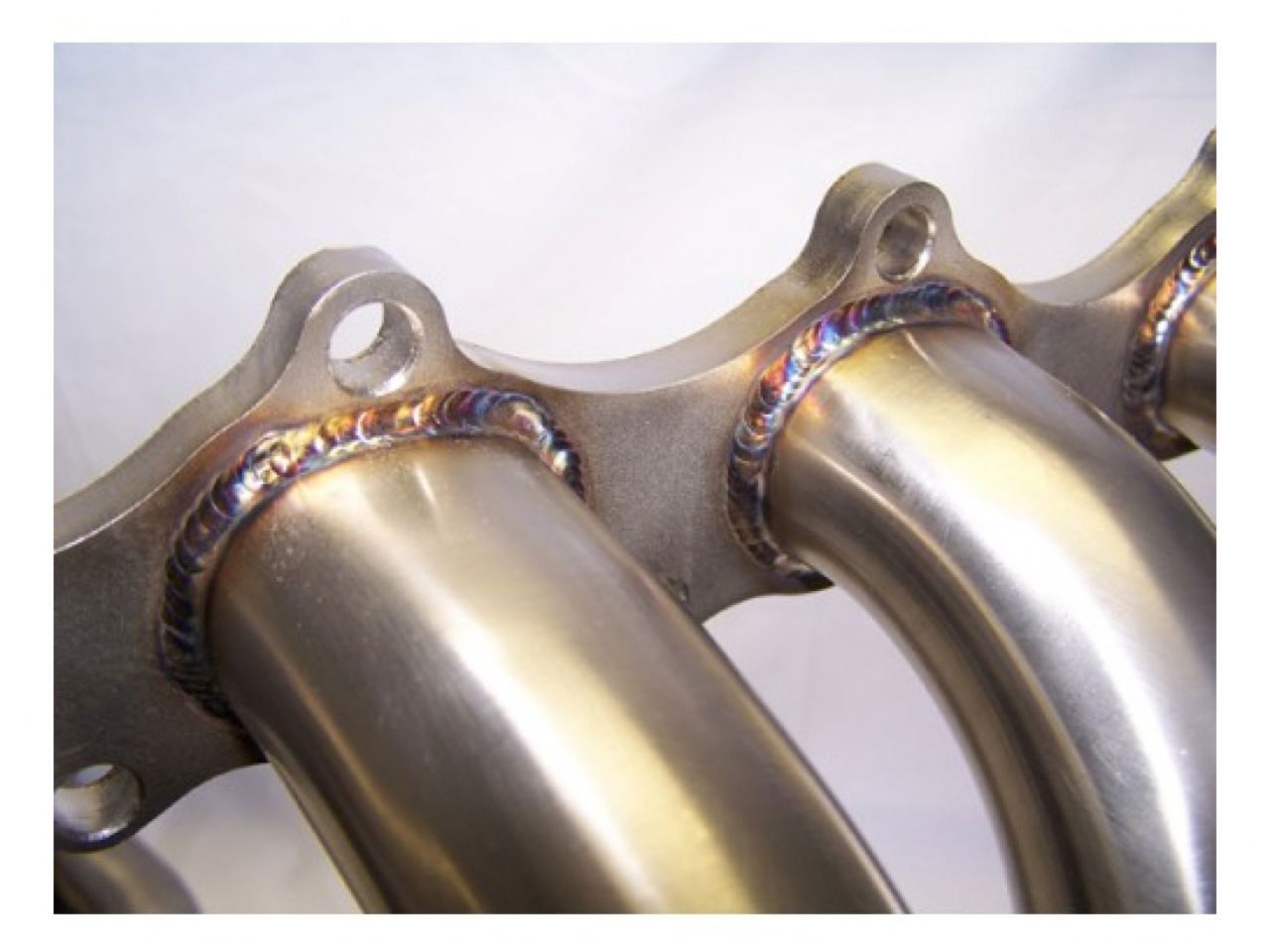

T304 is used to construct these stainless steel headers, including T304 cylinder head and collector flanges. All headers are expertly TIG-welded to ensure durability and reliability. Spent exhaust gases exit through true 2.5" exhaust collectors.
BLOX Racing Max-Flo headers are designed to widen midrange power and take advantage of peak horsepower.
FOR OFF ROAD USE ONLY
Step-up Piping Sizes (OD)
45mm - 50mm - 55mm
Features
T304 stainless steel
Madrel-bent, TIG-welded
10mm thick cylinder head flange
8mm thick collector flange
2-piece, includes header springs
4-2-2-1 Tri-Y design
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1992 - 2001 | Acura | Integra | GS-R |
| 1990 - 2001 | Acura | Integra | LS, GS |
| 1990 - 1998 | Acura | Integra | RS |
| 1995 - 1996 | Acura | Integra | Special Edition |
| 1997 - 2001 | Acura | Integra | Type R |
| 1999 - 2000 | Honda | Civic | EX-R SIR, LX, DX, Si, EX, GX, HX, CX, EX-R |
| 1999 | Honda | Civic | Value Package |
| 1994 - 1997 | Honda | Civic del Sol | VTEC, Si, S |
| 1998 - 2001 | Honda | CR-V | EX |
| 1997 - 2001 | Honda | CR-V | LX |
| 2000 - 2001 | Honda | CR-V | SE |
