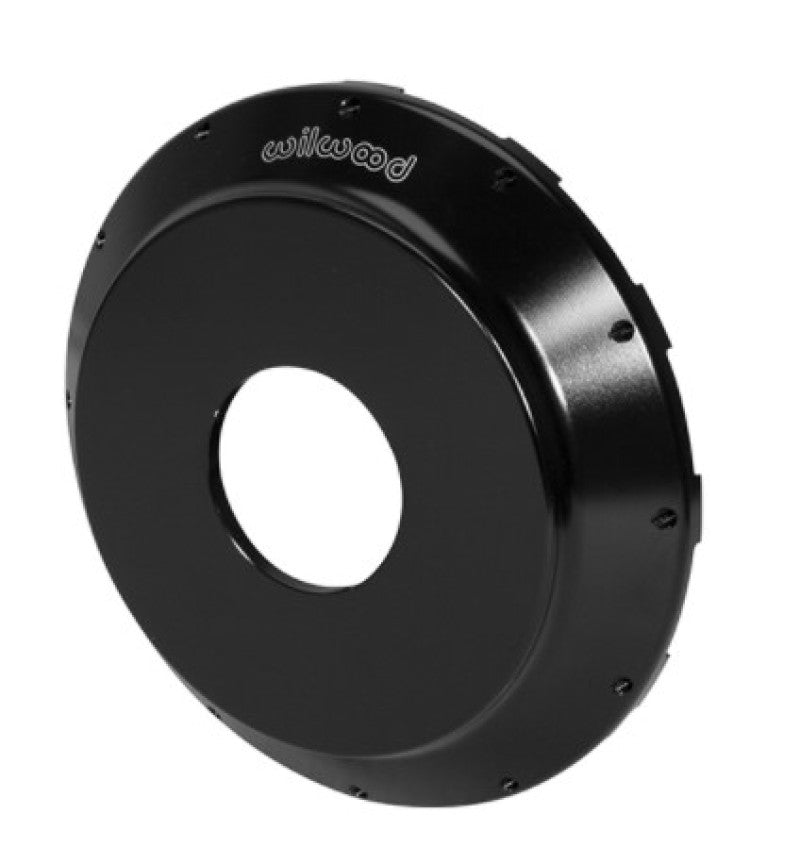

Wilwood Big Brake Hat - Short Offset *Discontinued

Big Brake Hat - Short Offset

GT Series Big Brake Short Offset hats are precision machined from premium aluminum alloys for high strength and attention to minimized weight. Hats in this category feature threaded rotor mount holes for use with standard through-hole mount rotors. Threaded hole hats may also be used with T-Nuts or bobbins designed for use with specially machined slotted hole dynamic mount rotors. When used in conjunction with matched Wilwood rotor hardware kits, GT hats provide solid, reliable performance in the most demanding conditions. Short Offset Hats are for narrow space applications with offsets often less than 1.00". They are available for most rotor bolt patterns in a variety of four and five lug wheel patterns.

Features:

Hat Dimensions

Mount Hole Type:Threaded

Rotor Bolt Circle (in):12 x 8.75

Hat Offset (in):1.380

Center Reg. (in):2.81

Hat Type

Material:Aluminum

Mount Style:Fixed Mount

Finish:Black E-Coat

Weight (lbs):2.050

Bolt Circle Dimensions

Hat Bolt Circle 1: Blank

Application Info

Application Note: General Big Brake Applications

Hat Bolt Kit Part #: 230-8008
