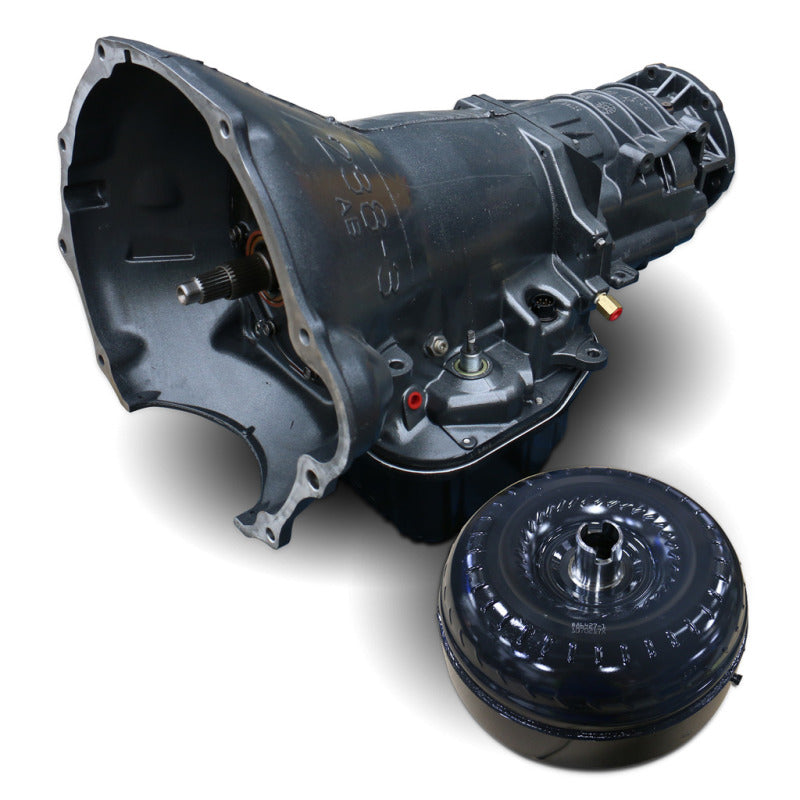

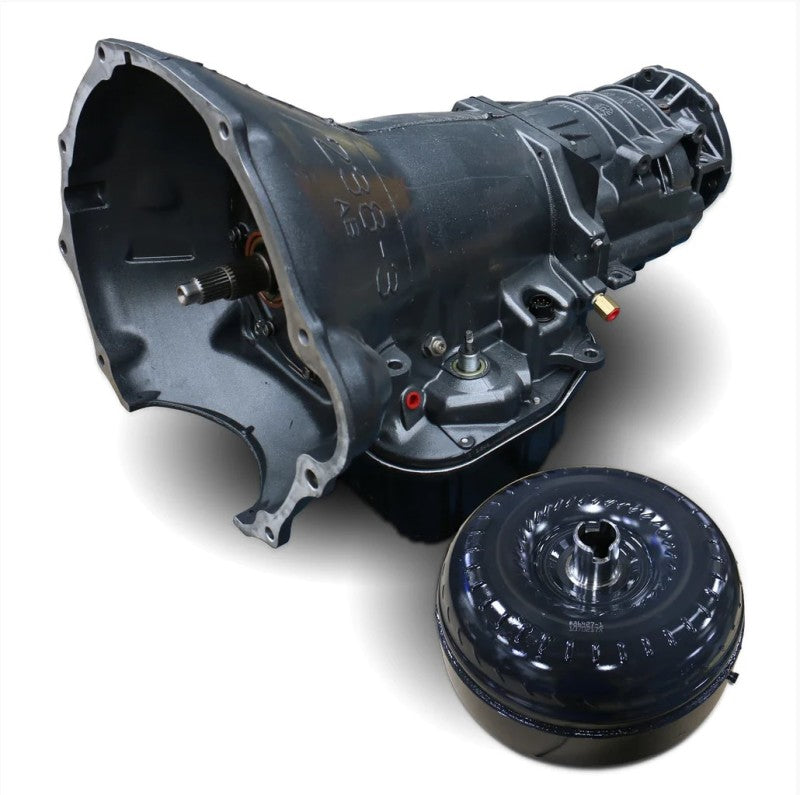

BD Diesel Transmission Kit - 1998.5-1999 Dodge 47RE 4WD - Stage 4 Package 1064174SS
![](http://frsport.com/cdn/shop/files/we-ship-worldwide_3.webp?v=1709782563&width=300)
BDD Transmissions

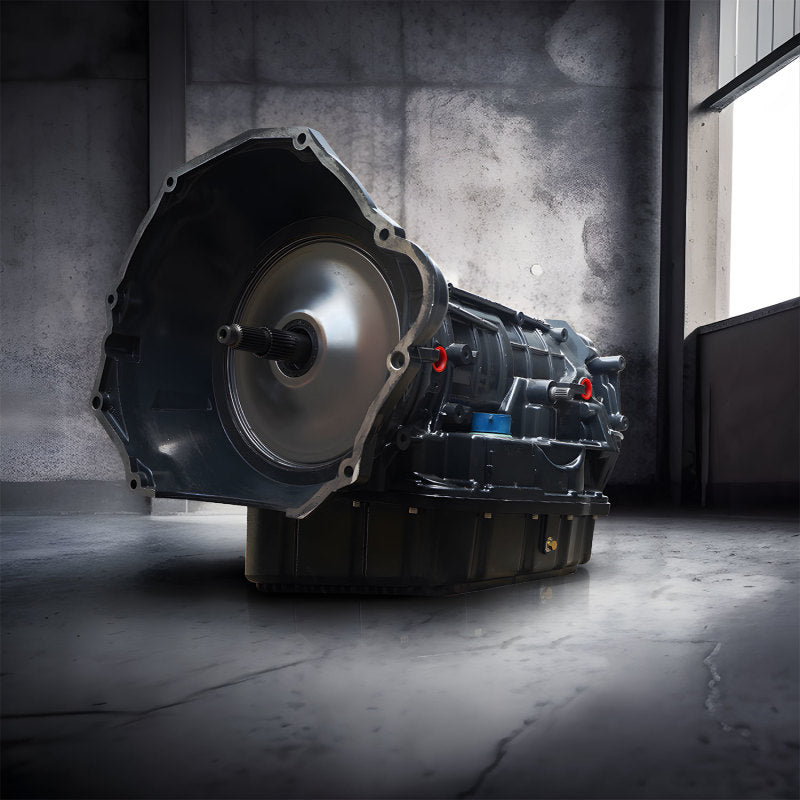

Automatic Transmission Assembly

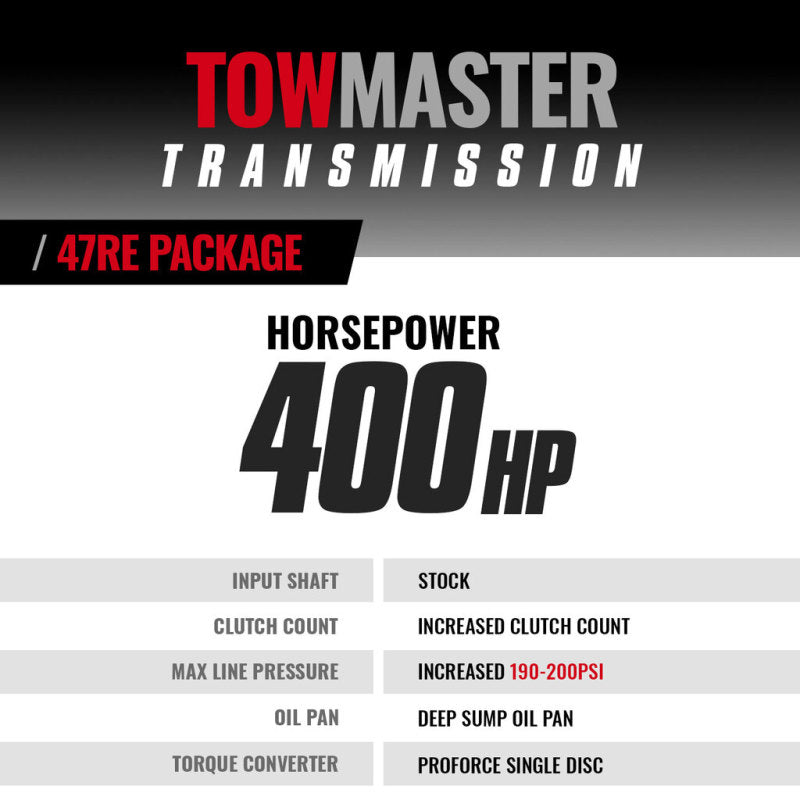

Transmission-Upgraded Valvebody, Upgraded governor solenoid, Upgraded governor pressure transducer (47RE/48RE) - Twice the burst pressure than stock. Increased line pressure to 190-200psi. No shuttle shifting problems, Modified manual valve for lube in all positions. Stock thrust bushings replaced with roller Torrington bearings. Clutch Count: DIRECT 6, Clutch Count: FORWARD 5, Clutch Count: OD 6, Clutch Count: OD DIRECT 10. High temp/energy Raybestos band. Billet band lever, billet band strut. Billet Input Shaft to take the "snap" from rapid throttle and high horsepower. Billet "Big" fine spline input shaft. Drilled intermediate shaft for increased lubrication. BD rigid aluminum heavy duty transmission pan. Pan adds 2qt extra oil capacity. Pan heat-dissipating fins keep temperature down. Magnetic drain plug. Increase the durability of your drivetrain. BD auxiliary full flow filter kit for extra protection. Cooler line case saver in every transmission. Every transmission is tested on a dyno. Torque Convertor- Enhanced Stall - Street/Towing applications. Machined pistons, HD springs absorb shock of engagement, Stamp forged 1-piece cover, Eliminates warpage from clutch heat, Taller cover can be rebuilt more often. Trapezoid teeth design, Engineered tighter tolerances. Self-centering teeth design increases contact decreases wear and chatter. Thrust bearings - not plastic thrust washers. Riveting process ensures alignment & eliminates vibration or embrittlement from welding. Cast stator designs maximizes torque. New sprag components ensure long term durability. Furnaced brazed fins reduces internal leakage for improved fluid coupling efficiency. Reduced overall weight by 12lbs compared to competitors. Warranty-> Parts 36 Month/150,000 miles, Labor 12 Month 24000 Miles
BD Dodge 47RE Transmission & Converter Stage 4 Package - 1998.5-1999 24-valve 4wd c/w Auxiliary Filter
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
1998 - 1999 | Dodge | Ram 2500 | Custom, Base |
1998 | Dodge | Ram 2500 | Limited, Lujo |
1999 | Dodge | Ram 2500 | SLT |
1998 - 1999 | Dodge | Ram 3500 | Custom, Base |
1999 | Dodge | Ram 3500 | SLT |
