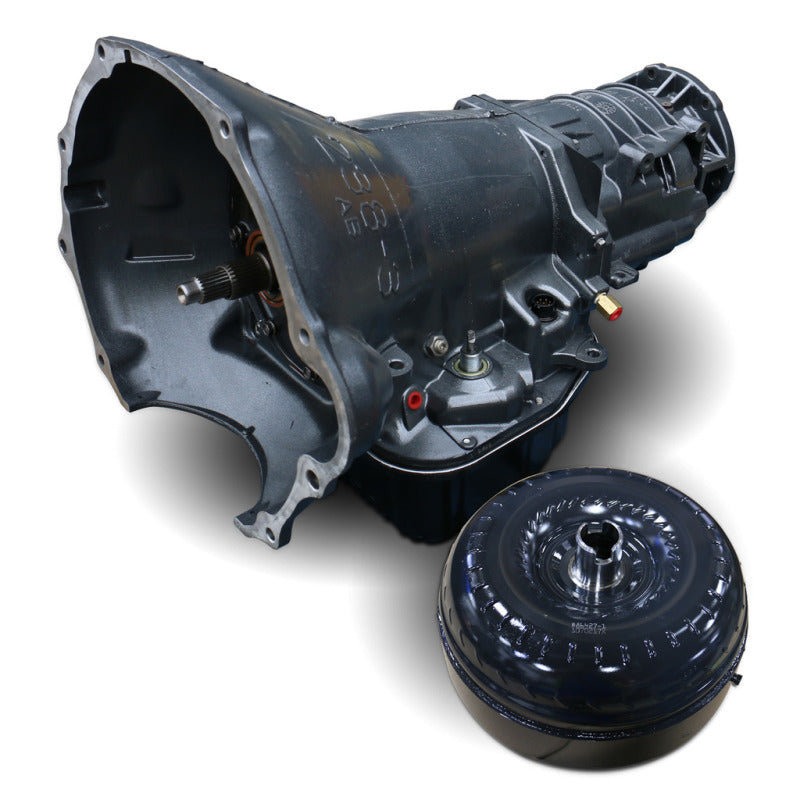

BD Diesel 94-95 Dodge 4WD 47RH Stage 4 Transmission & Converter Package 1064154SS
![](http://frsport.com/cdn/shop/files/we-ship-worldwide_3.webp?v=1709782563&width=300)
BDD Transmissions
Automatic Transmission Assembly
Transmission-Upgraded Valvebody, Increased line pressure to 190-200psi. Stock thrust bushings replaced with roller Torrington bearings. Clutch Count: DIRECT 5, Clutch Count: FORWARD 5, Clutch Count: OD 6, Clutch Count: OD DIRECT 10. High temp Raybestos band. Billet band lever, billet band strut. Billet Input Shaft to take the "snap" from rapid throttle and high horsepower. BD rigid aluminum heavy duty transmission pan. Pan adds 2qt extra oil capacity. Pan heat-dissipating fins keep temperature down. Magnetic drain plug. Increase the durability of your drivetrain. BD auxiliary full flow filter kit for extra protection. Cooler line case saver in every transmission. Every transmission is tested on a dyno. Torque Convertor- Enhanced Stall. Torque Multiplying cast aluminum stators. Lower RPM Response than the stock converter. More efficient operation, less heat and better fuel economy. Stamp-forged steel front cover, furnace brazed fins, up to triple the mount of lockup clutch material. Warranty- 36 Month/150,000 Miles on Parts, 12 Month/24000 miles on Labor.
BD Dodge 47RH Transmission & Converter Stage 4 Package - 1994-1995 4wd c/w Auxiliary Filter.
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
1994 - 1995 | Dodge | Ram 2500 | Base |
1995 | Dodge | Ram 2500 | Runner, Custom, Limited, Lujo |
1994 - 1995 | Dodge | Ram 3500 | Base |
1995 | Dodge | Ram 3500 | Custom |
