BD Diesel 03-04 Dodge Cummins 4WD w/ TapShifter 48RE Trans & Converter Stage 4 Package 1064194SST

BDD Transmissions

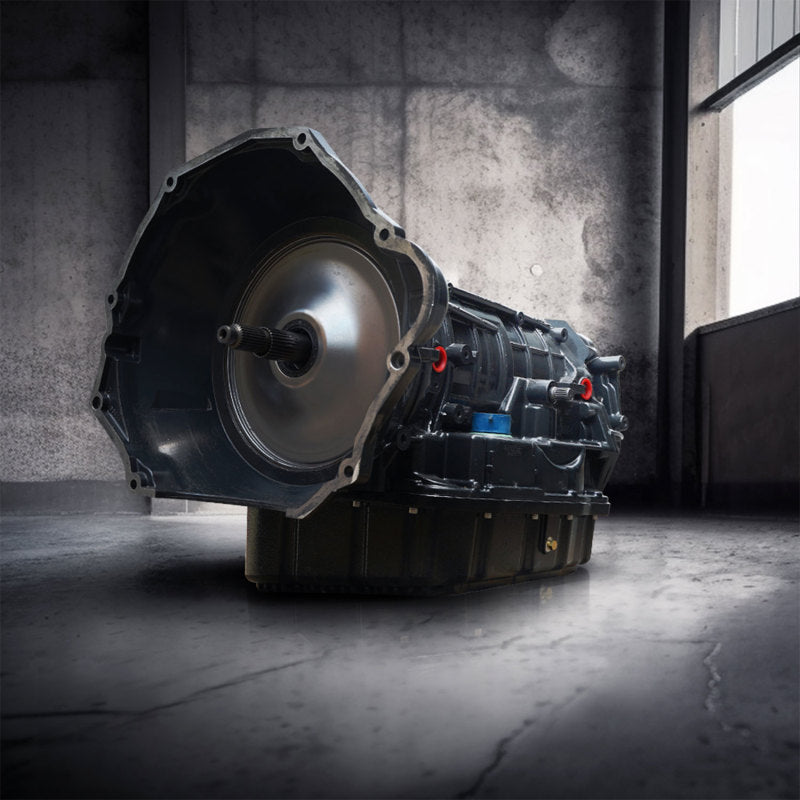

Automatic Transmission Assembly

Transmission-Upgraded Valvebody, Upgraded governor solenoid, Upgraded governor pressure transducer (47RE/48RE) - Twice the burst pressure than stock. Increased line pressure to 190-200psi. No shuttle shifting problems, Modified manual valve for lube in all positions. Stock thrust bushings replaced with roller Torrington bearings. Clutch Count: DIRECT 6, Clutch Count: FORWARD 5, Clutch Count: OD 6, Clutch Count: OD DIRECT 10. High temp/energy Raybestos band. Billet band lever, billet band strut. Billet Input Shaft to take the "snap" from rapid throttle and high horsepower. Billet "Big" fine spline input shaft. Drilled intermediate shaft for increased lubrication. BD rigid aluminum heavy duty transmission pan. Pan adds 2qt extra oil capacity. Pan heat-dissipating fins keep temperature down. Magnetic drain plug. Increase the durability of your drivetrain. BD auxiliary full flow filter kit for extra protection. Cooler line case saver in every transmission. Every transmission is tested on a dyno. Torque Convertor- Enhanced Stall - Street/Towing applications. Torque multiplying cast aluminum stators. Lower rpm response than the stock converter. More efficient operation. Less heat and better fuel economy. Stamp-forged steel front cover. Furnace-brazed fins. Up to triple the amount of lock-up clutch material. Warranty-> Parts 36 Month/150,000 miles, Labor 12 Month 24000 Miles

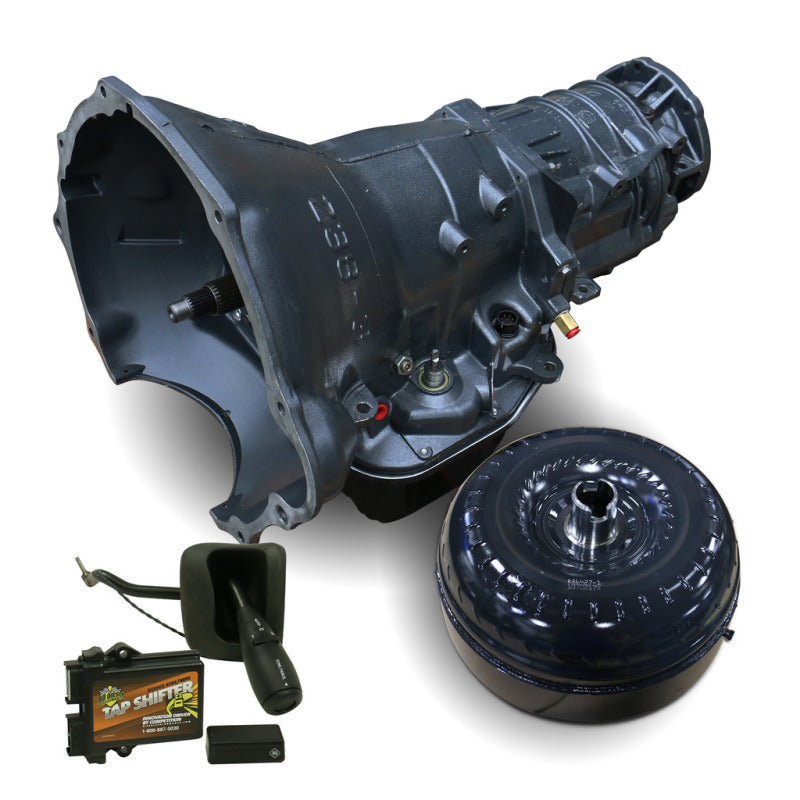

BD Dodge 48RE Transmission & Converter Stage 4 Package - 2003-2004 4wd c/w Auxiliary Filter & TapShifter

Vehicle Fitments:
