BC Racing ER Type Coilovers FR-S BRZ
BC Racing ER Type Coilovers FR-S BRZ
sku: 0F37C | mpn: F-20-ER
Regular price
$2,097.90
Regular price
$2,195.00
Sale price
$2,097.90
Shipping calculated at checkout.
Out of stock
Emissions
This is not an emissions item.
Quantity
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping
BC Racing ER Type Coilovers - Scion FR-S / Subaru BRZ 2013+
BC Racing North America is proud to introduce the all new ER type coilover application for the Subaru BRZ / Scion FRS platform. This new application features large external reservoirs in the front and rear, with separate rebound and compression adjustments, and a twin piston design.

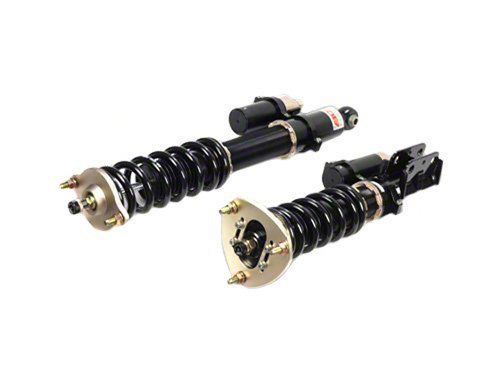

Note: Image is Generic and may not represent actual image exactly
Technical Specifications
Mount Type
- Front- Pillowball - Camber adjustability
- Rear- Pillowball - No camber adjustment available
Base Spring Setup
- Front- 135mm 10kg/mm
- Rear-160mm 8kg/mm
Swift Spring Upgrade:
- Available front & rear. Please add an additional $320-retail upgrade
Base Shock Stroke
- Front- 3.97 inches
- Rear- 3.53 inches
Compression Adjustment
- 30 way adjustable and adjusted by reservoir
Rebound Adjustment
- 30 way adjustable and adjusted by top dampening knob
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2013 - 2016 | Scion | FR-S | Base |
| 2015 | Subaru | BRZ | Aozora Edition, Series.Blue |
| 2016 | Subaru | BRZ | Series.HyperBlue |
| 2017 | Subaru | BRZ | Series.Yellow |
| 2013 - 2017 | Subaru | BRZ | Sport-tech, Base, Premium, Limited |
| 2017 | Toyota | 86 | Special Edition, Base |
