Banks Power Pressure Sensor Remote Mount Kit for High-Temperature/Drive Pressure Measurements 66422

GBE Gauge Components

Gauge Pod

Obtain high-temp air pressure readings without destroying your sensor(s). In high-temp situations, such as exhaust manifold temperature, mounting a sensor directly to the exhaust manifold will result in sensor failure. Mounting the sensor remotely allows safer reading and longer sensor life, and improved accuracy.

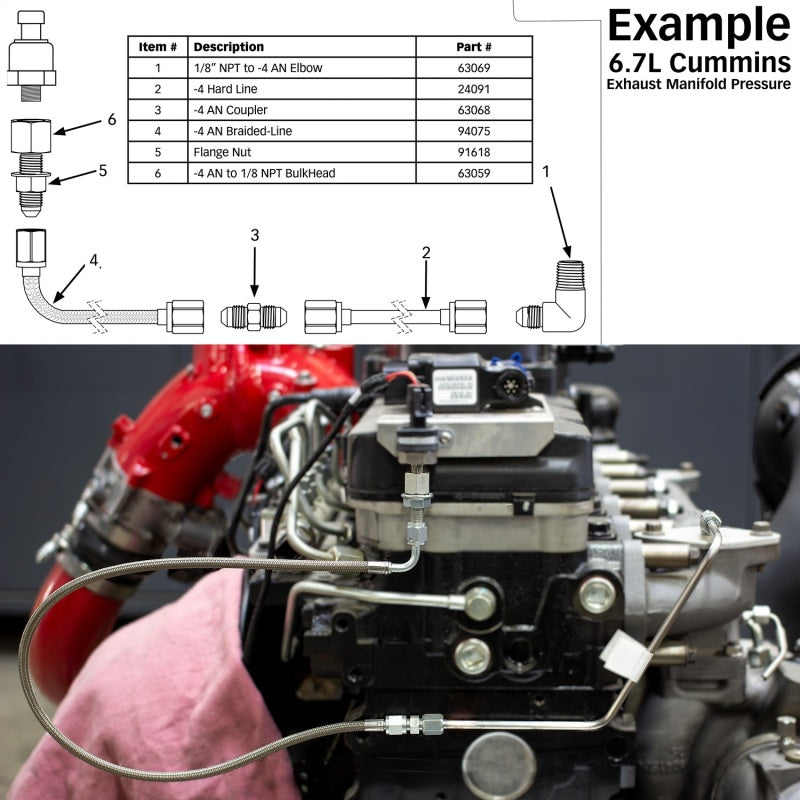

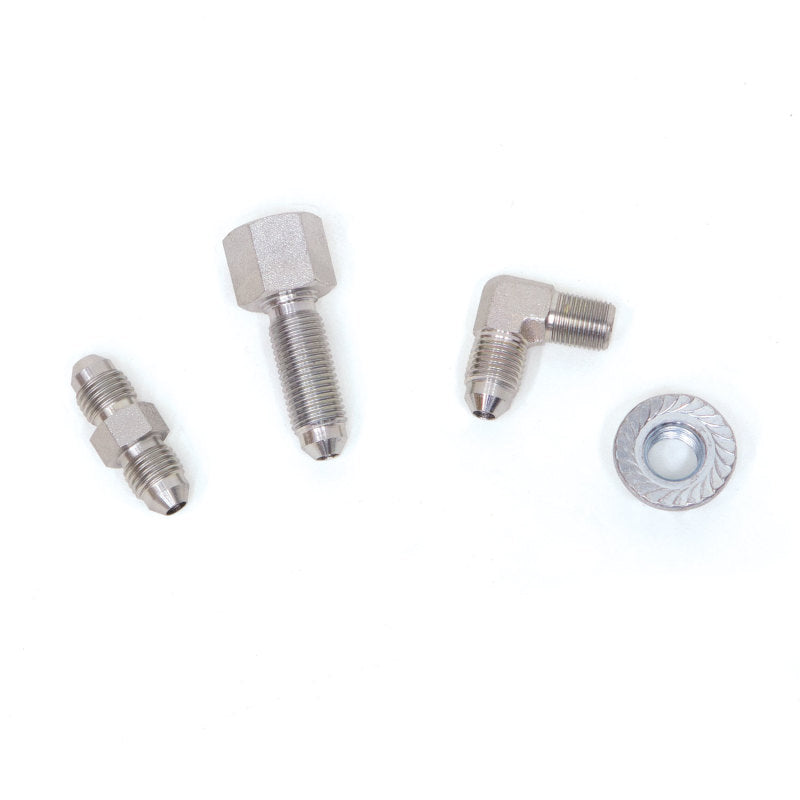

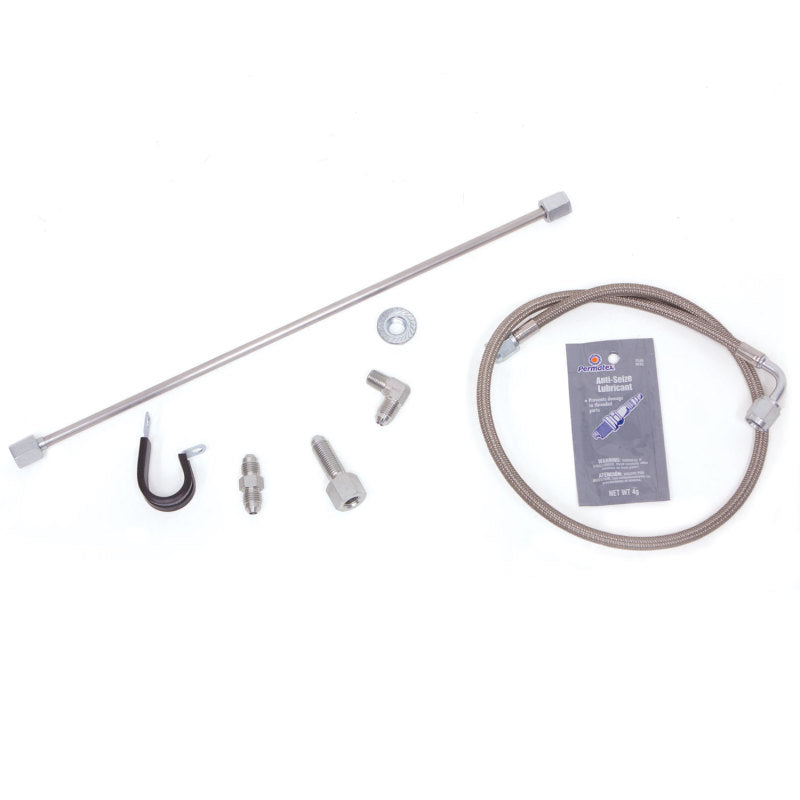

This kit is required for pressure readings to be obtained directly from the exhaust manifold, or compressor inlet/outlet air pressure measurements if temperatures will exceed 220 F. Sensors directly fitted to exhaust manifolds will deteriorate extremely fast, therefore, a remote mount kit must be present to isolate the temperature from the sensor and ensure longevity and accuracy of the sensor. Hardware is included to bulkhead mount the pressure sensor, or mount it using a P-Clamp.

Gas Pressure Sensor Remote Mount Kit; For High-Temperature Pressure; May Exceed 220 F;
