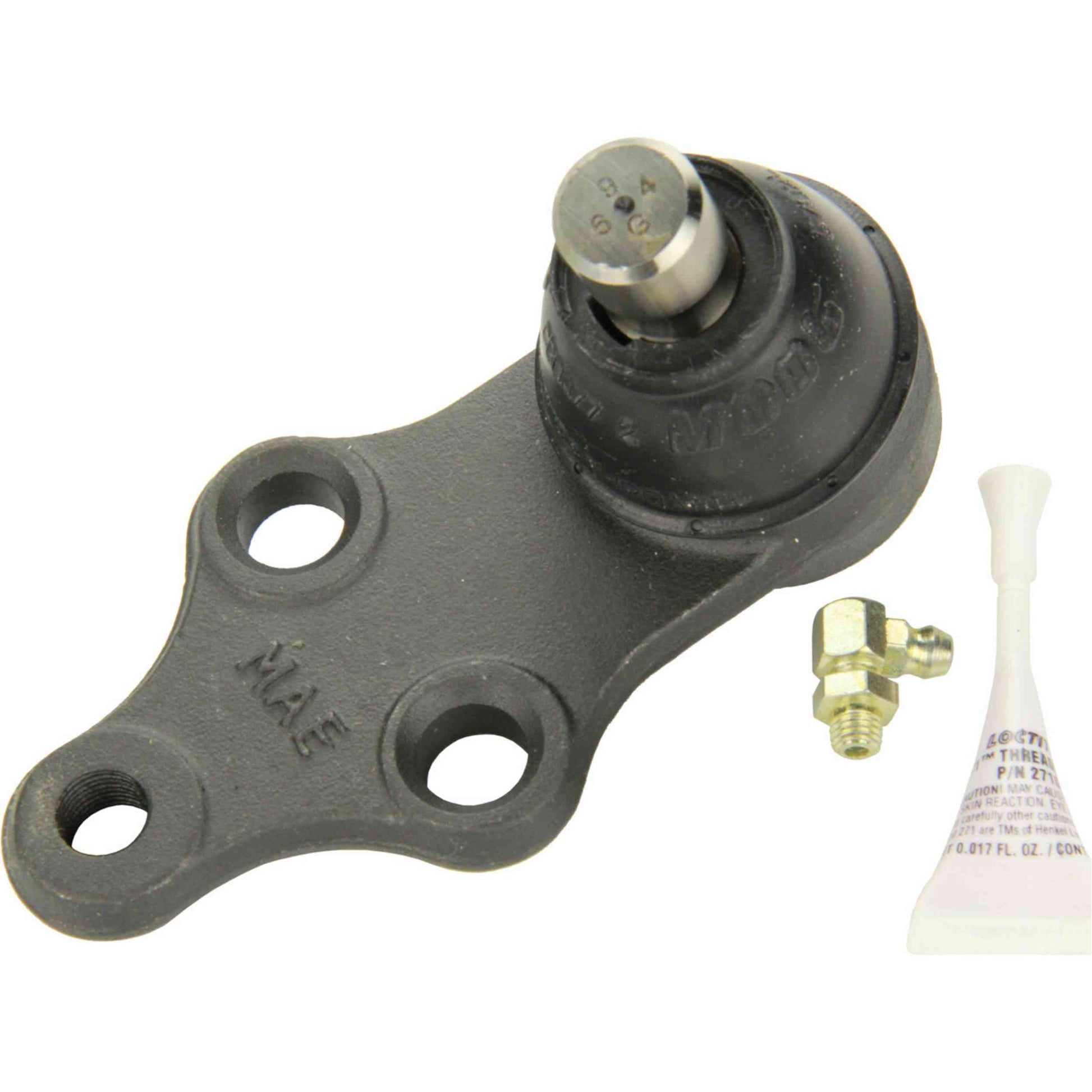

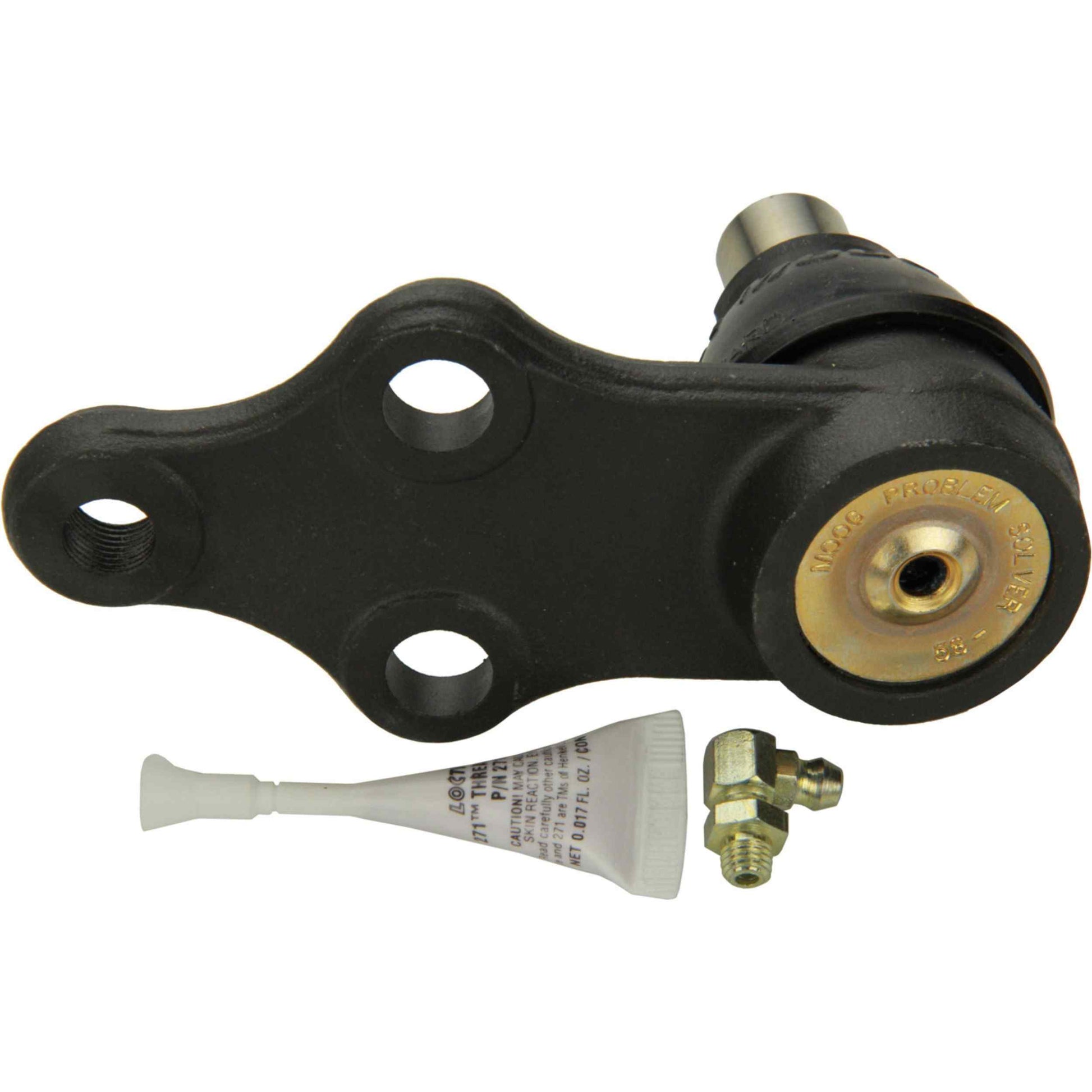

Moog BALL JOINT

• Hardened ball stud made of OE equivalent or better materials to withstand higher loads
• Patent pending dust boot with encapsulated Belleville washer help control axial and radial movement
• Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength
• Premium forged housing with increased cross section of up to 52% more material in key areas
• Larger grease reservoir and easy-to-install pre-tapped grease fitting hole for improved maintenance
• Greaseable socket reduces corrosion and wear by allowing new lubricant to flush contaminants

BALL JOINT SPECIFICATION

• Ball Joint Attachment Type: Bolt On
• Mount Type: Bolt On
• Greasable Design: Yes
• Includes Grease Fitting/s: No
• Includes Bolts: No
• Includes Nuts: No
• Includes Castle Nut: No
• Includes Cotter Pin: No
• Includes Cotter Pin Hole: No
• Includes Hardware: Yes
• Includes Bushings: No
• Quantity of Bushings: 0
• Includes Mount Plate: No
• Mount Hole Quantity: 3
• Includes Washers: Yes
• Adjustable: No
• Bolt Length (Inch): 1.370
• Bolt Thread Size: M12x1.25
• Boot Material: Neoprene
• Heavy Duty: No
• Height (Inch): 2.820
• Length (Inch): 5.200
• Type of Suspension: Standard
• Meets/Exceeds OE Manufacturer Specs: Yes
