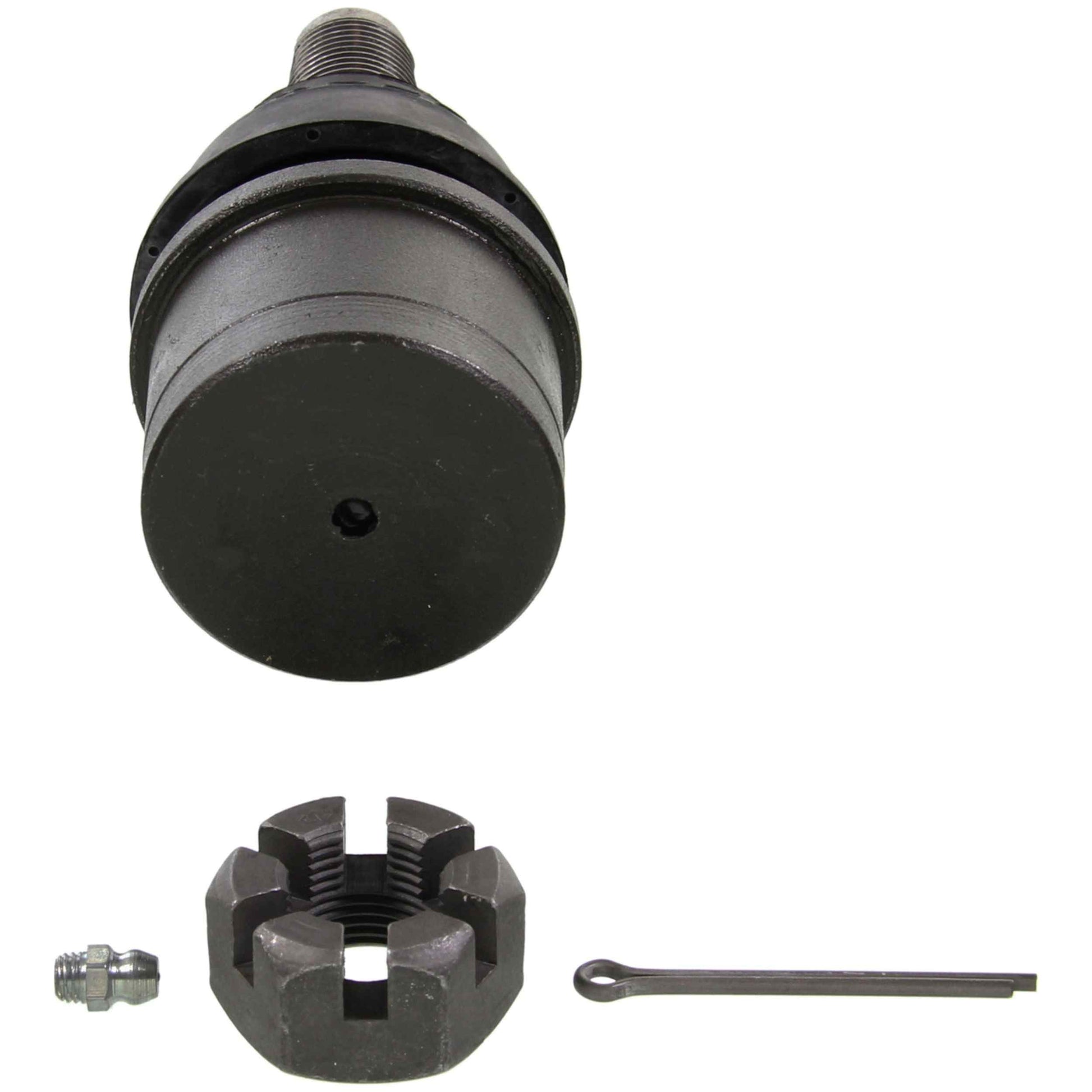

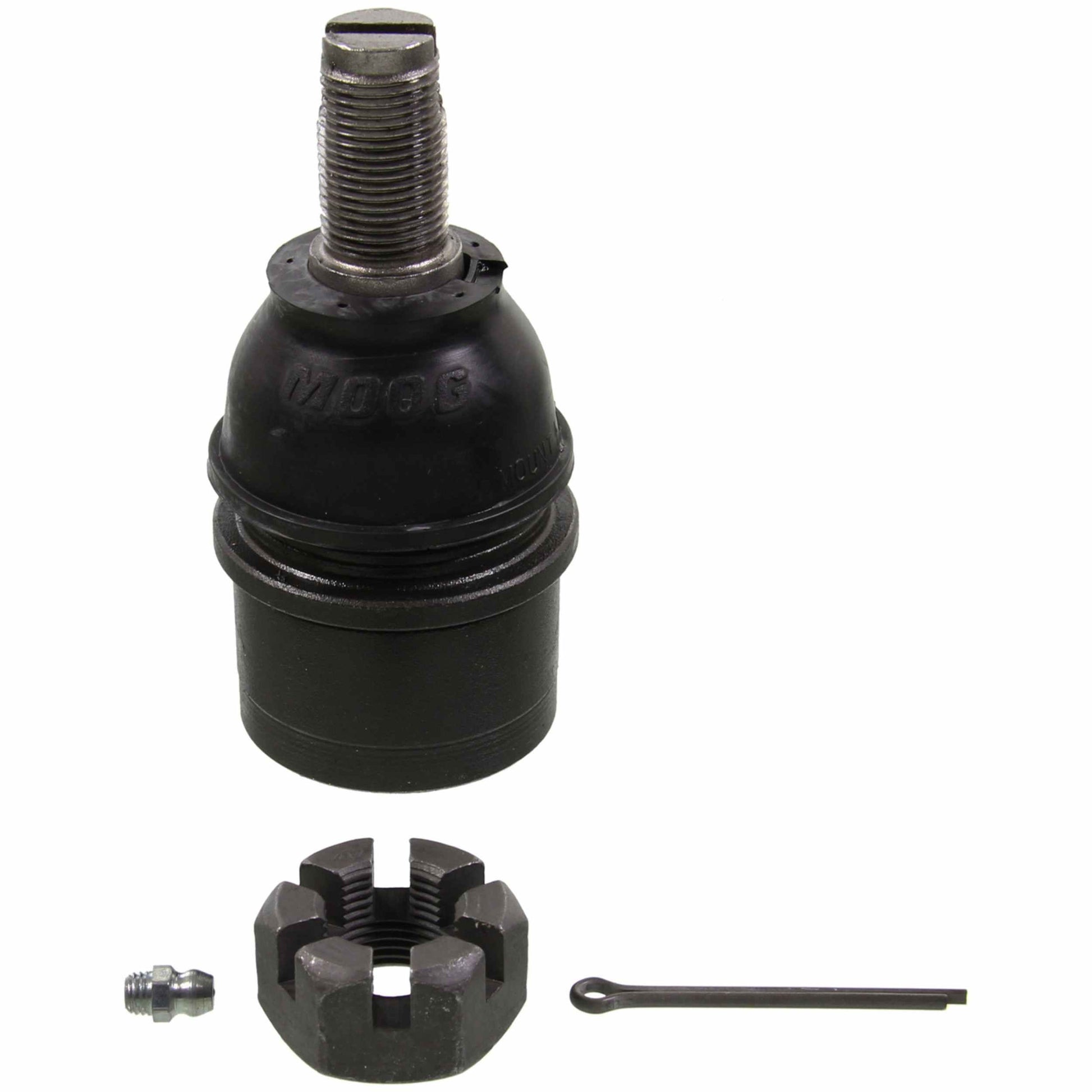

Moog Ball Joint
MOOG® Problem Solver® products incorporate proven design and engineering features for like new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
Hardened ball stud made of OE equivalent or better materials to withstand higher loads
Patent pending dust boot with encapsulated Belleville washer help control axial and radial movement
Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength
Premium forged housing with increased cross section of up to 52% more material in key areas
Larger grease reservoir and easy-to-install pre-tapped grease fitting hole for improved maintenance
Greaseable socket reduces corrosion and wear by allowing new lubricant to flush contaminants
Specifications
BALL JOINT
Ball Joint Attachment Type: Press-In
Mount Type: Press-In
Greasable Design : Yes
Includes Grease Fitting/s: Yes
Includes Bolts: No
Includes Nuts: No
Includes Castle Nut: Yes
Includes Cotter Pin: Yes
Includes Cotter Pin Hole: Yes
Includes Hardware: Yes
Includes Bushings: No
Quantity of Bushings: 0
Includes Mount Plate: No
Includes Washers: No
Adjustable: No
Boot Material: Neoprene
Heavy Duty: No
Height (Inch): 4.400
Outer Diameter (Inch): 2.360
Inner Diameter (Inch): 1.960
Length (Inch): 4.400
Stud Taper Per Foot: 0.047
Stud Thread: 0.750-16
Type of Suspension: Standard
Meets/Exceeds OE Manufacturer Specs: Yes
-
Applications
COMMERCIAL, INDUSTRIAL & AG.ChevroletC4500 Kodiak2009-2005ChevroletC5500 Kodiak2009-2005FordF-450 Super Duty2016-2005FordF-550 Super Duty2016-2005GMCC4500 Topkick2009-2005GMCC5500 Topkick2009-2005
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2005 - 2009 | Chevrolet | C4500 Kodiak | C4V042, C4U042, C4E044, C4C042, C4E042, C4C044 |
| 2005 - 2009 | Chevrolet | C5500 Kodiak | C5U042, C5E044, C5C044, C5E042, C5C042, C5V042 |
| 2009 - 2022 | Ford | F-450 Super Duty | Base |
| 2009 - 2010 | Ford | F-450 Super Duty | Harley-Davidson Edition |
| 2008 - 2016 | Ford | F-450 Super Duty | King Ranch |
| 2005 - 2016 | Ford | F-450 Super Duty | Lariat, XL, XLT |
| 2013 - 2016 | Ford | F-450 Super Duty | Platinum |
| 2012 - 2022 | Ford | F-550 Super Duty | Base |
| 2005 - 2016 | Ford | F-550 Super Duty | XLT, Lariat, XL |
| 2005 - 2009 | GMC | C4500 Topkick | C4E044, C4U042, C4C042, C4V042, C4E042, C4C044 |
| 2005 - 2009 | GMC | C5500 Topkick | C5U042, C5C042, C5C044, C5V042, C5E042, C5E044 |
Moog Ball Joint
Sale price$61.91 USD
Regular price$62.07 USD
