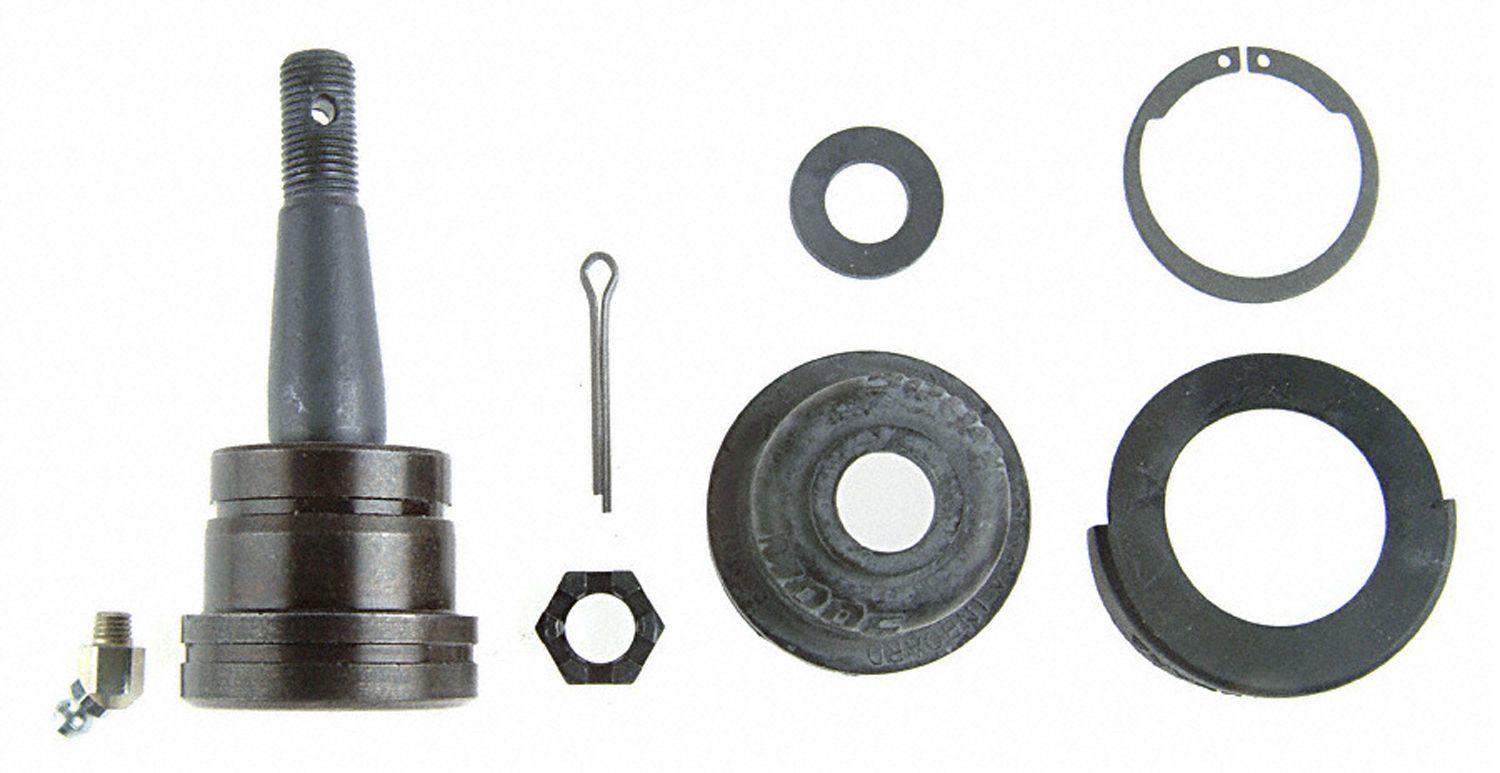

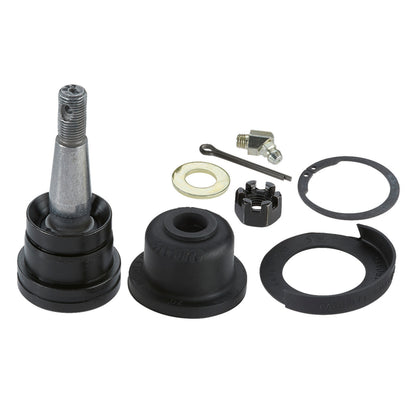

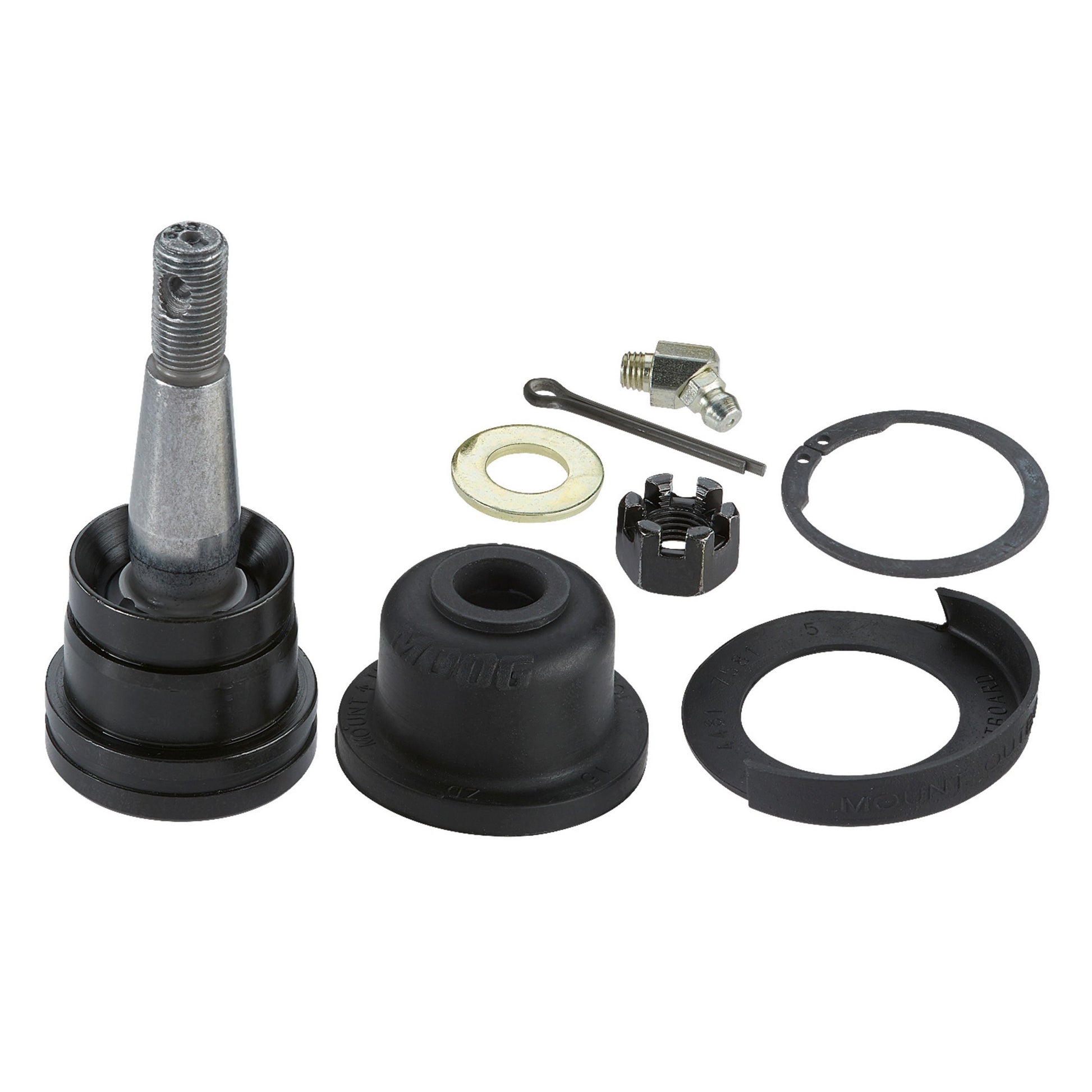

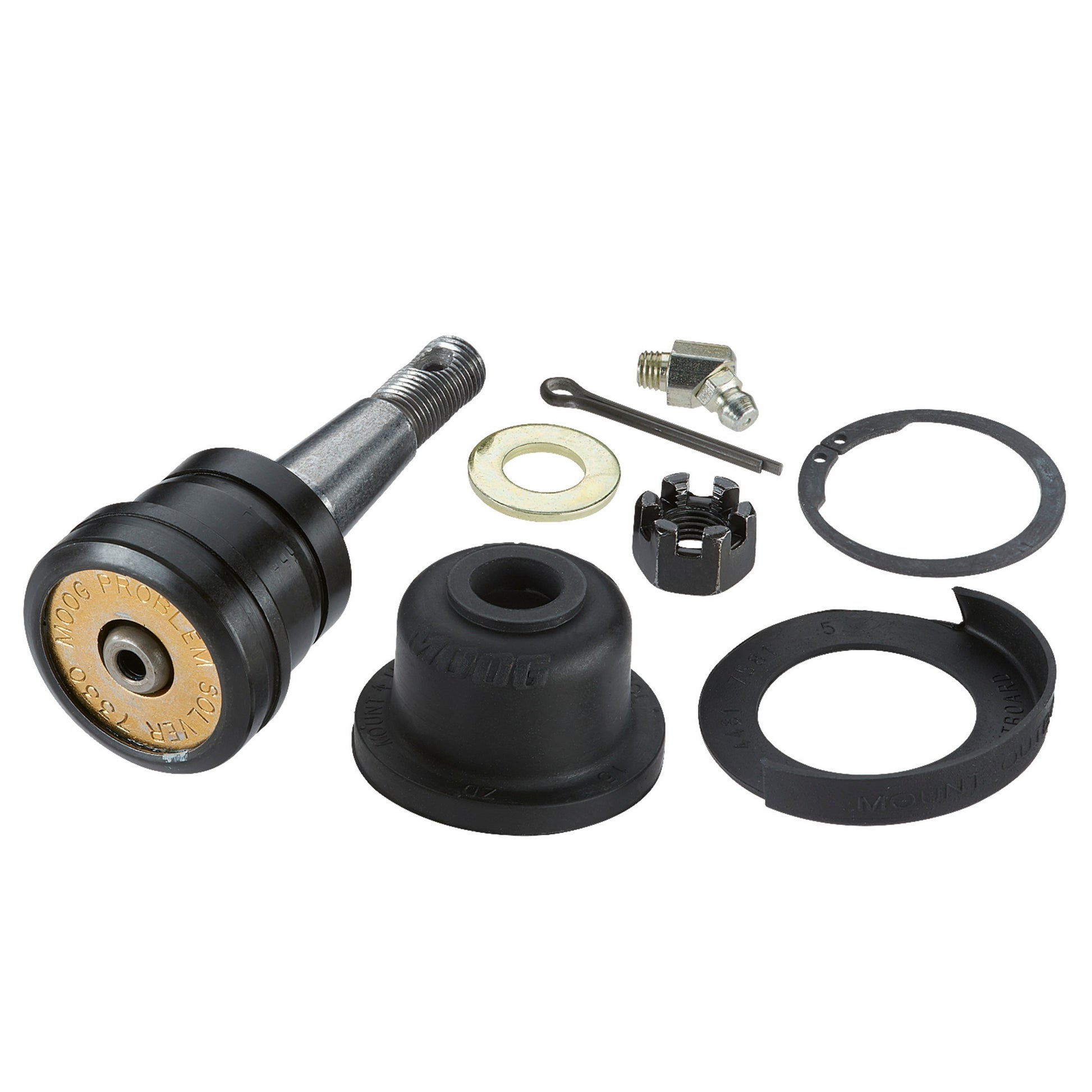

Moog BALL JOINT DODGE 01-05

• Hardened ball stud made of OE equivalent or better materials to withstand higher loads
• Patent pending dust boot with encapsulated Belleville washer help control axial and radial movement
• Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength
• Premium forged housing with increased cross section of up to 52% more material in key areas
• Larger grease reservoir and easy-to-install pre-tapped grease fitting hole for improved maintenance
• Greaseable socket reduces corrosion and wear by allowing ne:w lubricant to flush contaminants

Specifications:

Ball Joint Specifications

Ball Joint Attachment Type: Press-In

Mount Type: Press-In

Greasable Design: Yes

Includes Grease Fitting/s: Yes

Includes Bolts: No

Includes Nuts: No

Includes Castle Nut: Yes

Includes Cotter Pin: Yes

Includes Cotter Pin Hole: Yes

Includes Hardware: Yes

Includes Bushings: Yes

Quantity of Bushings: 1

Includes Mount Plate: No

Includes Washers: Yes

Adjustable: No

Boot Material: Neoprene

Heavy Duty: No

Height (Inch): 3.360

Outer Diameter (Inch): 2.320

Inner Diameter (Inch): 1.490

Length (Inch): 3.360

Stud Taper Per Foot: 0.046

Stud Thread: M12x1.25

Type of Suspension: Standard

Meets/Exceeds OE Manufacturer Specs:Yes
