Two is always better than one, right? We think so, which is why we’re offering a pair of XL Pro LED auxiliary lights with wiring harness for the price of $659.95. With a 4,600 lumen count and a power draw of 40 watts per light, the XL Pro is an ideal replacement for an HID. The XL Pro LED light utilizes our trademarked High Speed Spot reflectors providing for a longer beam pattern, and offers a 20 percent dimming feature. The XL Pro now features a variety of Cree LEDs to provide a 20 percent more reach, with the same power consumption!
Perfect for enthusiasts that need a vast amount of light and are looking for something other than a light bar. An industry-first 30-day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection. USPTO Reg No. 5,766,659
Choose from a variety of patterns to suit your needs:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 degrees) and spot (8 degrees) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
Spot: A longer and narrower 8-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
- Satisfaction Guarantee – 30-Day Money Back Guarantee
- Limited Lifetime Warranty – Complete Purchase Protection
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
SKU: 507801
Dimensions
Depth (in.) |
3.650 |
Height (in.) |
4.430 |
Length (in.) |
4.430 |
Weight (lbs.) |
2.450 |
Specifications
Amperage Rating (A) |
3 |
Average Rated Life (hr.) |
49,930 |
Beam Pattern |
Spot |
Bezel Material |
Billet Machined Aluminum |
Brightness (Lumens) |
4095 |
Description |
Spot; Clear; Pair |
Housing Color |
Black |
Housing Material |
Hard Anodized and Powder Coated Cast Aluminum |
Lens Color |
Clear |
Lighting Modes |
Hardcoated Polycarbonate |
Light Quantity |
2 |
Lens Material |
High Beam/Dimming Feature (20%) |
Lighting Quantity |
4 |
Lighting Type |
Cree XP-L LED |
Lighting Technology |
Forward Projecting |
Mounting Hardware Included |
Yes |
Mounting Hardware Material |
Stainless Steel |
Overvoltage Protection |
Built-In |
Product Type |
XL Pro LED Light Pod Pair w/ Wiring Harness |
Universal or Specific |
Universal |
Wattage (W) |
41.400 |
Wiring Harness Included |
Yes |
Standards & Compliance
Standards/Compliance (Durability) |
Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Water Resistance) |
IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Impact Resistance) |
IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 507803
Dimensions
Depth (in.) |
3.650 |
Height (in.) |
4.430 |
Length (in.) |
4.430 |
Weight (lbs.) |
2.450 |
Specifications
Amperage Rating (A) |
3 |
Average Rated Life (hr.) |
49,930 |
Beam Pattern |
Driving/Combo |
Bezel Material |
Billet Machined Aluminum |
Brightness (Lumens) |
4095 |
Description |
Driving/Combo; Clear; Pair |
Housing Color |
Black |
Housing Material |
Hard Anodized and Powder Coated Cast Aluminum |
Lens Color |
Clear |
Lighting Modes |
Hardcoated Polycarbonate |
Light Quantity |
2 |
Lens Material |
High Beam/Dimming Feature (20%) |
Lighting Quantity |
4 |
Lighting Type |
Cree XP-L LED |
Lighting Technology |
Forward Projecting |
Mounting Hardware Included |
Yes |
Mounting Hardware Material |
Stainless Steel |
Overvoltage Protection |
Built-In |
Product Type |
XL Pro LED Light Pod Pair w/ Wiring Harness |
Universal or Specific |
Universal |
Wattage (W) |
41.400 |
Wiring Harness Included |
Yes |
Standards & Compliance
Standards/Compliance (Durability) |
Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Water Resistance) |
IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Impact Resistance) |
IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 507805
Dimensions
Depth (in.) |
3.650 |
Height (in.) |
4.430 |
Length (in.) |
4.430 |
Weight (lbs.) |
2.450 |
Specifications
Amperage Rating (A) |
3 |
Average Rated Life (hr.) |
49,930 |
Beam Pattern |
Wide Cornering |
Bezel Material |
Billet Machined Aluminum |
Brightness (Lumens) |
4095 |
Description |
Wide Cornering; Clear; Pair |
Housing Color |
Black |
Housing Material |
Hard Anodized and Powder Coated Cast Aluminum |
Lens Color |
Clear |
Lighting Modes |
Hardcoated Polycarbonate |
Light Quantity |
2 |
Lens Material |
High Beam/Dimming Feature (20%) |
Lighting Quantity |
4 |
Lighting Type |
Cree XP-L LED |
Lighting Technology |
Forward Projecting |
Mounting Hardware Included |
Yes |
Mounting Hardware Material |
Stainless Steel |
Overvoltage Protection |
Built-In |
Product Type |
XL Pro LED Light Pod Pair w/ Wiring Harness |
Universal or Specific |
Universal |
Wattage (W) |
41.400 |
Wiring Harness Included |
Yes |
Standards & Compliance
Standards/Compliance (Durability) |
Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Water Resistance) |
IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Impact Resistance) |
IP69K (Waterproof up to 9ft & Pressure Washable) |

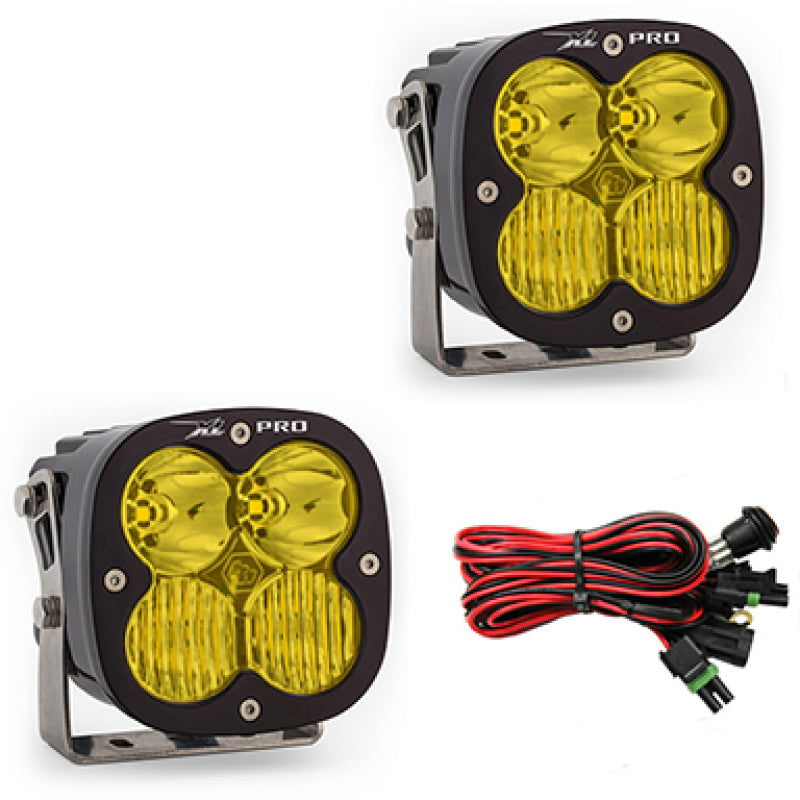

SKU: 507813
Dimensions
Depth (in.) |
3.650 |
Height (in.) |
4.430 |
Length (in.) |
4.430 |
Weight (lbs.) |
2.450 |
Specifications
Amperage Rating (A) |
3 |
Average Rated Life (hr.) |
49,930 |
Beam Pattern |
Driving/Combo |
Bezel Material |
Billet Machined Aluminum |
Brightness (Lumens) |
4095 |
Description |
Driving/Combo; Amber; Pair |
Housing Color |
Black |
Housing Material |
Hard Anodized and Powder Coated Cast Aluminum |
Lens Color |
Amber |
Lighting Modes |
Hardcoated Polycarbonate |
Light Quantity |
2 |
Lens Material |
High Beam/Dimming Feature (20%) |
Lighting Quantity |
4 |
Lighting Type |
Cree XP-L LED |
Lighting Technology |
Forward Projecting |
Mounting Hardware Included |
Yes |
Mounting Hardware Material |
Stainless Steel |
Overvoltage Protection |
Built-In |
Product Type |
XL Pro LED Light Pod Pair w/ Wiring Harness |
Universal or Specific |
Universal |
Wattage (W) |
41.400 |
Wiring Harness Included |
Yes |
Standards & Compliance
Standards/Compliance (Durability) |
Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Water Resistance) |
IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Impact Resistance) |
IP69K (Waterproof up to 9ft & Pressure Washable) |

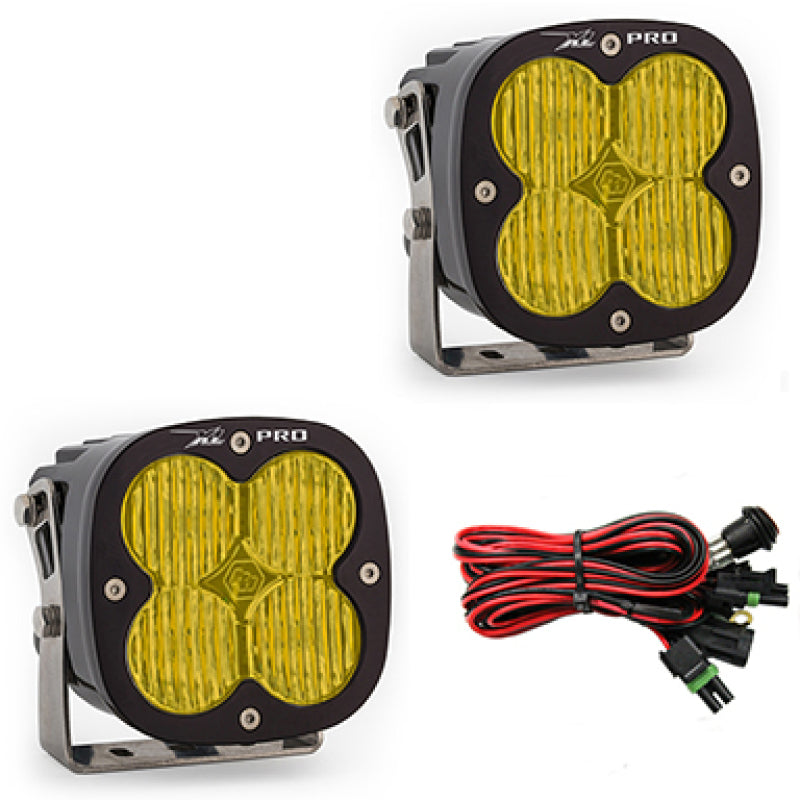

SKU: 507815
Dimensions
Depth (in.) |
3.650 |
Height (in.) |
4.430 |
Length (in.) |
4.430 |
Weight (lbs.) |
2.450 |
Specifications
Amperage Rating (A) |
3 |
Average Rated Life (hr.) |
49,930 |
Beam Pattern |
Wide Cornering |
Bezel Material |
Billet Machined Aluminum |
Brightness (Lumens) |
4095 |
Description |
Wide Cornering; Amber; Pair |
Housing Color |
Black |
Housing Material |
Hard Anodized and Powder Coated Cast Aluminum |
Lens Color |
Amber |
Lighting Modes |
Hardcoated Polycarbonate |
Light Quantity |
2 |
Lens Material |
High Beam/Dimming Feature (20%) |
Lighting Quantity |
4 |
Lighting Type |
Cree XP-L LED |
Lighting Technology |
Forward Projecting |
Mounting Hardware Included |
Yes |
Mounting Hardware Material |
Stainless Steel |
Overvoltage Protection |
Built-In |
Product Type |
XL Pro LED Light Pod Pair w/ Wiring Harness |
Universal or Specific |
Universal |
Wattage (W) |
41.400 |
Wiring Harness Included |
Yes |
Standards & Compliance
Standards/Compliance (Durability) |
Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Water Resistance) |
IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Impact Resistance) |
IP69K (Waterproof up to 9ft & Pressure Washable) |
