The OnX6 Arc Series is the perfect combination of performance and aesthetics. The latest generation of the OnX series is brighter, bolder, and better so you have the visibility for after-dark adventures. We use Cree LEDs that last up to 50,000 hours and have a 5000K light temperature; this mimics natural daylight for better trail recognition and less eye fatigue. Beautifully arched to fit the contour of your bumper or windshield, the Arc Series redefines the capabilities of the standard/traditional LED light bar.
An industry-first, 30-day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.
Choose from a variety of patterns to suit your needs:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 degrees) and spot (8 degrees) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
Spot: A longer and narrower 8-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
- Satisfaction Guarantee – 30-Day Money Back Guarantee
- Limited Lifetime Warranty – Complete Purchase Protection
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
SKU: 523001
Dimensions
Depth (in.) |
4.29 |
Height (in.) |
2.69 |
Length (in.) |
30 |
Weight (lbs.) |
11.45 |
Specifications
Amperage Rating (A) |
21.7 (High); 17.1 (Low) |
Average Rated Life (hr.) |
49,930 |
Beam Pattern |
Spot |
Bezel Material |
Billet Machined Aluminum |
Brightness (Lumens) |
32,070 (High); 25,610 (Low) |
Description |
Arc; Spot; Clear |
Housing Color |
Black |
Housing Material |
Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
Lens Color |
Clear |
Lighting Modes |
Hardcoated Polycarbonate |
Light Quantity |
1 |
Lens Material |
High Beam/Low Beam |
Lighting Quantity |
18 |
Lighting Type |
LED |
Lighting Technology |
Forward Projecting |
Mounting Hardware Description |
Mounting Brackets |
Mounting Hardware Included |
Yes |
Mounting Hardware Material |
Stainless Steel |
Overvoltage Protection |
Built-In |
Product Type |
OnX6+ 30 Inch Arc LED Light Bar |
Universal or Specific |
Universal |
Wattage (W) |
278 (High); 222 (Low) |
Wiring Harness Description |
Hi-Low Dongle |
Wiring Harness Included |
No |
SKU: 524001
Dimensions
Depth (in.) |
4.29 |
Height (in.) |
2.69 |
Length (in.) |
40 |
Weight (lbs.) |
15.05 |
Specifications
Amperage Rating (A) |
26.8 (High); 22.4 (Low) |
Average Rated Life (hr.) |
49,930 |
Beam Pattern |
Spot |
Bezel Material |
Billet Machined Aluminum |
Brightness (Lumens) |
39,220 (High); 32,760 (Low) |
Description |
Arc; Spot; Clear |
Housing Color |
Black |
Housing Material |
Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
Lens Color |
Clear |
Lighting Modes |
Hardcoated Polycarbonate |
Light Quantity |
1 |
Lens Material |
High Beam/Low Beam |
Lighting Quantity |
24 |
Lighting Type |
LED |
Lighting Technology |
Forward Projecting |
Mounting Hardware Description |
Mounting Brackets |
Mounting Hardware Included |
Yes |
Mounting Hardware Material |
Stainless Steel |
Overvoltage Protection |
Built-In |
Product Type |
OnX6+ 40 Inch Arc LED Light Bar |
Universal or Specific |
Universal |
Wattage (W) |
340 (High); 284 (Low) |
Wiring Harness Description |
Hi-Low Dongle |
Wiring Harness Included |
No |
SKU: 525001
Dimensions
Depth (in.) |
4.29 |
Height (in.) |
2.69 |
Length (in.) |
50 |
Weight (lbs.) |
18.65 |
Specifications
Amperage Rating (A) |
28.2 (High) |
Average Rated Life (hr.) |
49,930 |
Beam Pattern |
Spot |
Bezel Material |
Billet Machined Aluminum |
Brightness (Lumens) |
39,910 (High) |
Description |
Arc; Spot; Clear |
Housing Color |
Black |
Housing Material |
Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
Lens Color |
Clear |
Lighting Modes |
Hardcoated Polycarbonate |
Light Quantity |
1 |
Lens Material |
High Beam |
Lighting Quantity |
30 |
Lighting Type |
LED |
Lighting Technology |
Forward Projecting |
Mounting Hardware Description |
Mounting Brackets |
Mounting Hardware Included |
Yes |
Mounting Hardware Material |
Stainless Steel |
Overvoltage Protection |
Built-In |
Product Type |
OnX6+ 50 Inch Arc LED Light Bar |
Universal or Specific |
Universal |
Wattage (W) |
346 (High) |
Wiring Harness Included |
No |

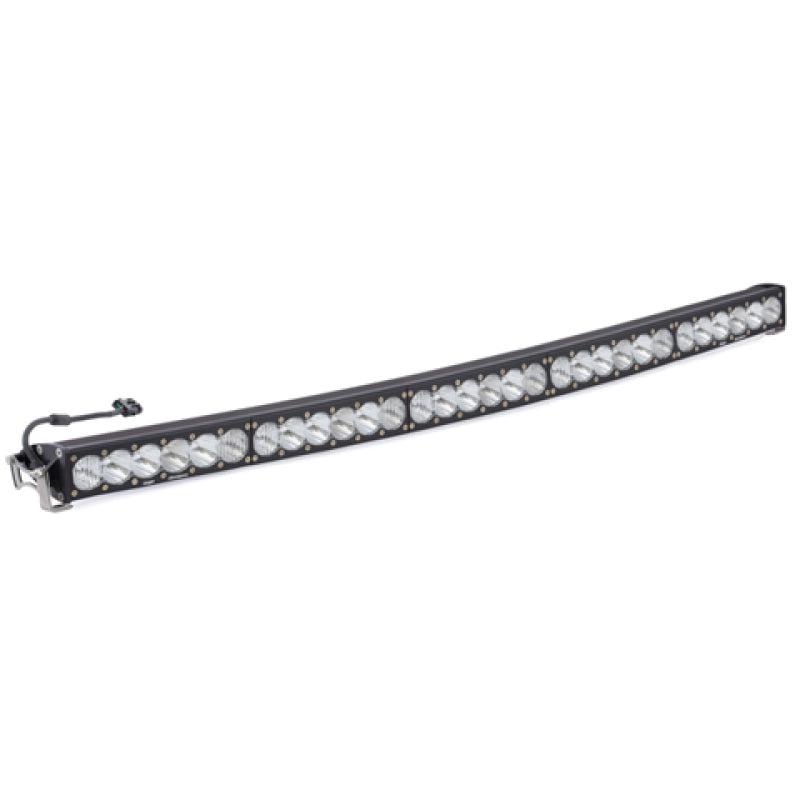

SKU: 525003
Dimensions
Depth (in.) |
4.29 |
Height (in.) |
2.69 |
Length (in.) |
50 |
Weight (lbs.) |
18.65 |
Specifications
Amperage Rating (A) |
28.2 (High) |
Average Rated Life (hr.) |
49,930 |
Beam Pattern |
Driving/Combo |
Bezel Material |
Billet Machined Aluminum |
Brightness (Lumens) |
39,910 (High) |
Description |
Arc; Driving/Combo; Clear |
Housing Color |
Black |
Housing Material |
Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
Lens Color |
Clear |
Lighting Modes |
Hardcoated Polycarbonate |
Light Quantity |
1 |
Lens Material |
High Beam |
Lighting Quantity |
30 |
Lighting Type |
LED |
Lighting Technology |
Forward Projecting |
Mounting Hardware Description |
Mounting Brackets |
Mounting Hardware Included |
Yes |
Mounting Hardware Material |
Stainless Steel |
Overvoltage Protection |
Built-In |
Product Type |
OnX6+ 50 Inch Arc LED Light Bar |
Universal or Specific |
Universal |
Wattage (W) |
346 (High) |
Wiring Harness Included |
No |

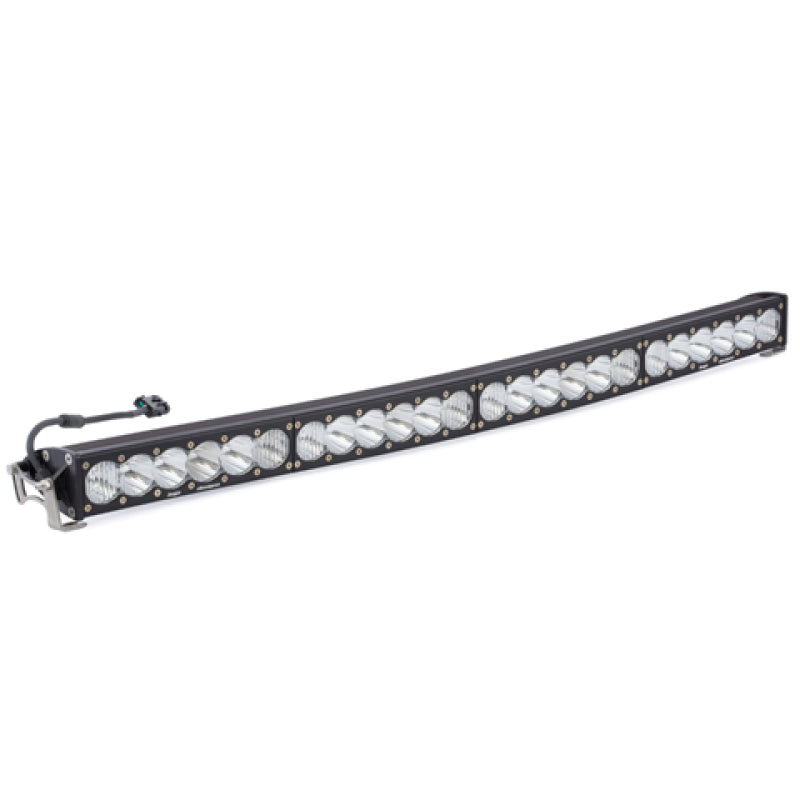

SKU: 524003
Dimensions
Depth (in.) |
4.29 |
Height (in.) |
2.69 |
Length (in.) |
40 |
Weight (lbs.) |
15.05 |
Specifications
Amperage Rating (A) |
26.8 (High); 22.4 (Low) |
Average Rated Life (hr.) |
49,930 |
Beam Pattern |
Driving/Combo |
Bezel Material |
Billet Machined Aluminum |
Brightness (Lumens) |
39,220 (High); 32,760 (Low) |
Description |
Arc; Driving/Combo; Clear |
Housing Color |
Black |
Housing Material |
Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
Lens Color |
Clear |
Lighting Modes |
Hardcoated Polycarbonate |
Light Quantity |
1 |
Lens Material |
High Beam/Low Beam |
Lighting Quantity |
24 |
Lighting Type |
LED |
Lighting Technology |
Forward Projecting |
Mounting Hardware Description |
Mounting Brackets |
Mounting Hardware Included |
Yes |
Mounting Hardware Material |
Stainless Steel |
Overvoltage Protection |
Built-In |
Product Type |
OnX6+ 40 Inch Arc LED Light Bar |
Universal or Specific |
Universal |
Wattage (W) |
340 (High); 284 (Low) |
Wiring Harness Description |
Hi-Low Dongle |
Wiring Harness Included |
No |

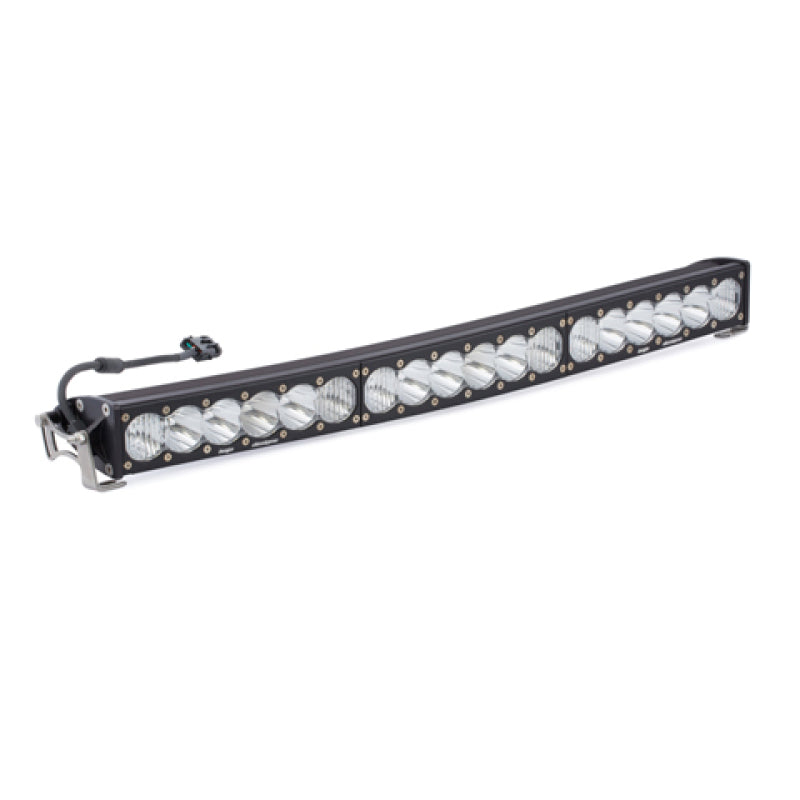

SKU: 523003
Dimensions
Depth (in.) |
4.29 |
Height (in.) |
2.69 |
Length (in.) |
30 |
Weight (lbs.) |
11.45 |
Specifications
Amperage Rating (A) |
21.7 (High); 17.1 (Low) |
Average Rated Life (hr.) |
49,930 |
Beam Pattern |
Driving/Combo |
Bezel Material |
Billet Machined Aluminum |
Brightness (Lumens) |
32,070 (High); 25,610 (Low) |
Description |
Arc; Driving/Combo; Clear |
Housing Color |
Black |
Housing Material |
Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
Lens Color |
Clear |
Lighting Modes |
Hardcoated Polycarbonate |
Light Quantity |
1 |
Lens Material |
High Beam/Low Beam |
Lighting Quantity |
18 |
Lighting Type |
LED |
Lighting Technology |
Forward Projecting |
Mounting Hardware Description |
Mounting Brackets |
Mounting Hardware Included |
Yes |
Mounting Hardware Material |
Stainless Steel |
Overvoltage Protection |
Built-In |
Product Type |
OnX6+ 30 Inch Arc LED Light Bar |
Universal or Specific |
Universal |
Wattage (W) |
278 (High); 222 (Low) |
Wiring Harness Description |
Hi-Low Dongle |
Wiring Harness Included |
No |
Standards & Compliance
Standards/Compliance (Durability) |
Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Water Resistance) |
IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Impact Resistance) |
IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 523004
Dimensions
Depth (in.) |
4.29 |
Height (in.) |
2.69 |
Length (in.) |
30 |
Weight (lbs.) |
11.45 |
Specifications
Amperage Rating (A) |
21.7 (High); 17.1 (Low) |
Average Rated Life (hr.) |
49,930 |
Beam Pattern |
Wide Cornering |
Bezel Material |
Billet Machined Aluminum |
Brightness (Lumens) |
32,070 (High); 25,610 (Low) |
Description |
Arc; Wide Cornering; Clear |
Housing Color |
Black |
Housing Material |
Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
Lens Color |
Clear |
Lighting Modes |
Hardcoated Polycarbonate |
Light Quantity |
1 |
Lens Material |
High Beam/Low Beam |
Lighting Quantity |
18 |
Lighting Type |
LED |
Lighting Technology |
Forward Projecting |
Mounting Hardware Description |
Mounting Brackets |
Mounting Hardware Included |
Yes |
Mounting Hardware Material |
Stainless Steel |
Overvoltage Protection |
Built-In |
Product Type |
OnX6+ 30 Inch Arc LED Light Bar |
Universal or Specific |
Universal |
Wattage (W) |
278 (High); 222 (Low) |
Wiring Harness Description |
Hi-Low Dongle |
Wiring Harness Included |
No |
SKU: 524004
Dimensions
Depth (in.) |
4.29 |
Height (in.) |
2.69 |
Length (in.) |
40 |
Weight (lbs.) |
15.05 |
Specifications
Amperage Rating (A) |
26.8 (High); 22.4 (Low) |
Average Rated Life (hr.) |
49,930 |
Beam Pattern |
Wide Cornering |
Bezel Material |
Billet Machined Aluminum |
Brightness (Lumens) |
39,220 (High); 32,760 (Low) |
Description |
Arc; Wide Cornering; Clear |
Housing Color |
Black |
Housing Material |
Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
Lens Color |
Clear |
Lighting Modes |
Hardcoated Polycarbonate |
Light Quantity |
1 |
Lens Material |
High Beam/Low Beam |
Lighting Quantity |
24 |
Lighting Type |
LED |
Lighting Technology |
Forward Projecting |
Mounting Hardware Description |
Mounting Brackets |
Mounting Hardware Included |
Yes |
Mounting Hardware Material |
Stainless Steel |
Overvoltage Protection |
Built-In |
Product Type |
OnX6+ 40 Inch Arc LED Light Bar |
Universal or Specific |
Universal |
Wattage (W) |
340 (High); 284 (Low) |
Wiring Harness Description |
Hi-Low Dongle |
Wiring Harness Included |
No |
SKU: 525004
Dimensions
Depth (in.) |
4.29 |
Height (in.) |
2.69 |
Length (in.) |
50 |
Weight (lbs.) |
18.65 |
Specifications
Amperage Rating (A) |
28.2 (High) |
Average Rated Life (hr.) |
49,930 |
Beam Pattern |
Wide Cornering |
Bezel Material |
Billet Machined Aluminum |
Brightness (Lumens) |
39,910 (High) |
Description |
Arc; Wide Cornering; Clear |
Housing Color |
Black |
Housing Material |
Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
Lens Color |
Clear |
Lighting Modes |
Hardcoated Polycarbonate |
Light Quantity |
1 |
Lens Material |
High Beam |
Lighting Quantity |
30 |
Lighting Type |
LED |
Lighting Technology |
Forward Projecting |
Mounting Hardware Description |
Mounting Brackets |
Mounting Hardware Included |
Yes |
Mounting Hardware Material |
Stainless Steel |
Overvoltage Protection |
Built-In |
Product Type |
OnX6+ 50 Inch Arc LED Light Bar |
Universal or Specific |
Universal |
Wattage (W) |
346 (High) |
Wiring Harness Included |
No |
