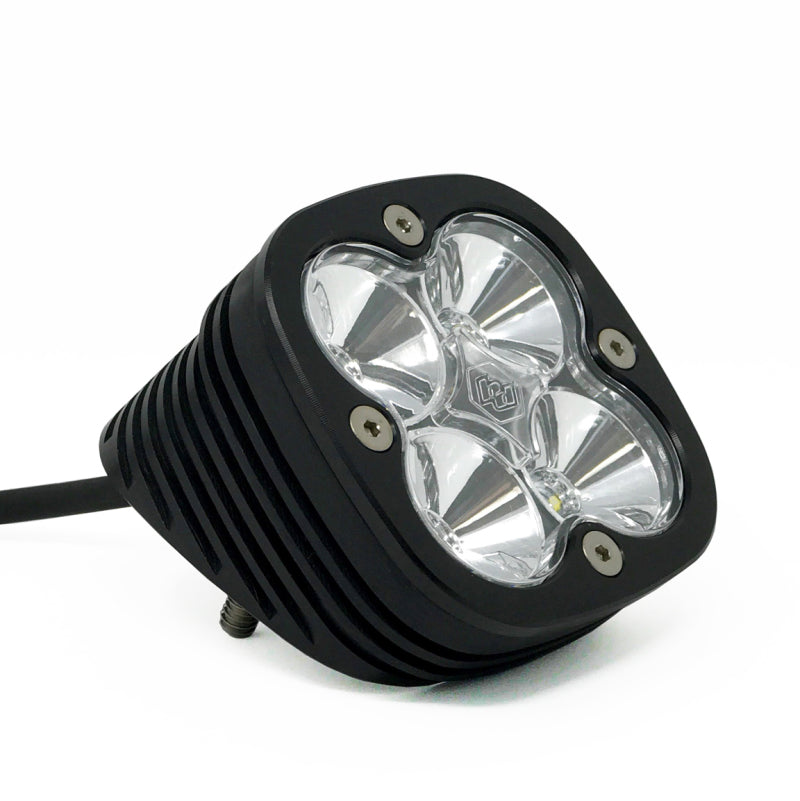

With a sleek black gloss appearance and a 25-degree angle, our Squadron Pro LED angle mount light from Baja Designs will allow you to light up the night. Don’t let the compact size of these 3” light pods fool you. The black angle mount housing is perfect for the side of trailers or any application where you need an angled mount solution auxiliary lighting. The angled flush mount allows you to easily mount to a flat surface by only drilling three small holes. The light comes with all the necessary hardware to make installation very simple and straightforward. While compact in size the Squadron Pro outshines the competition through both appearance and performance using next-generation LEDs pushing out 4,095 lumens. Our 30-Day Satisfaction Guarantee and Limited Lifetime Warranty are included for the ultimate in purchase protection. USPTO Reg No. 5,766,659
- Limited Lifetime Warranty – Complete Purchase Protection
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
SKU: 492006
Dimensions
| Depth (in.) |
2.770 |
| Height (in.) |
3.070 |
| Length (in.) |
3.070 |
| Weight (lbs.) |
0.750 |
Specifications
| Amperage Rating (A) |
3 |
| Average Rated Life (hr.) |
49,930 |
| Beam Pattern |
Work/Scene |
| Bezel Material |
Billet Machined Aluminum |
| Brightness (Lumens) |
4095 |
| Description |
25 Deg. Angle Mount; Work/Scene; Clear |
| Housing Color |
Black |
| Housing Material |
Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color |
Clear |
| Lighting Modes |
Hardcoated Polycarbonate |
| Light Quantity |
1 |
| Lens Material |
Beam |
| Lighting Quantity |
4 |
| Lighting Type |
Cree LED (2 Types) |
| Lighting Technology |
Forward Projecting |
| Mounting Hardware Included |
Yes |
| Mounting Hardware Material |
Stainless Steel |
| Overvoltage Protection |
Built-In |
| Product Type |
Squadron Pro Angle Mount LED Light Pod |
| Wattage (W) |
41.400 |
| Wiring Harness Included |
No |
Standards & Compliance
| Standards/Compliance (Durability) |
Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) |
IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Impact Resistance) |
IP69K (Waterproof up to 9ft & Pressure Washable) |
