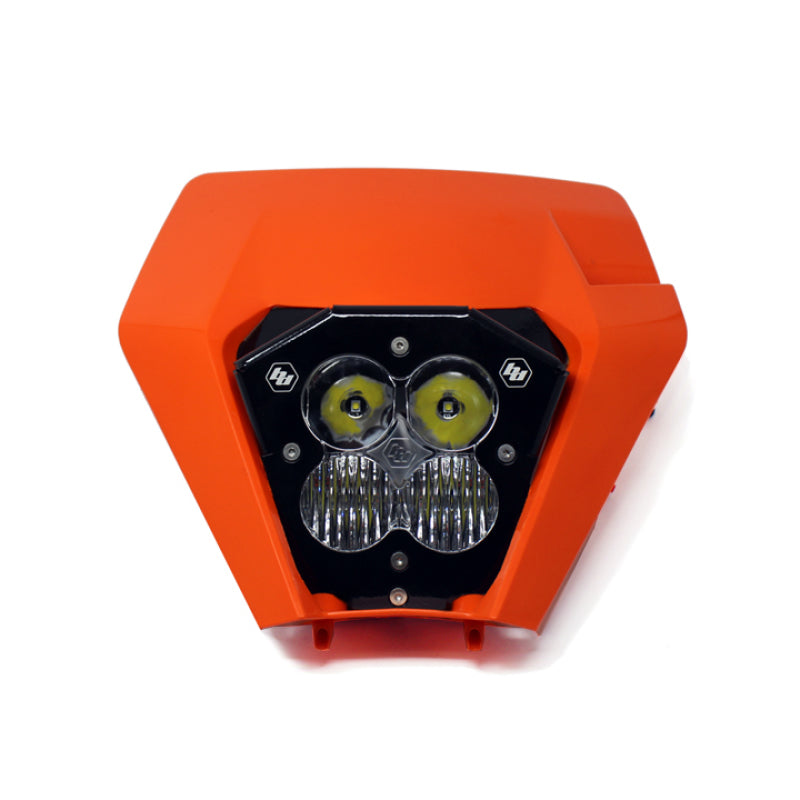

Baja Designs 17-19 XL Pro KTM LED Headlight Kit w/Shell D/C 507198

SKU: 20EVY | MPN:  507198
Usually Ships in 10-14 Days
Sale price$481.95 USD

If you're looking to go night riding look no further, our Baja Designs drop in replacement headlight kit is a major upgrade from stock and features a rugged design. This headlight kit was designed with ample adjustability, and features a significant amount of vertical and horizontal spread for ultimate trail coverage. This specific model utilizes our XL Pro which produces 4600 lumens and features a 20 percent dimming feature. The XL Pro now features a variety of Cree LEDs to provide a 20 percent more reach, with the same power consumption! Installation on this kit is as easy as installing a factory headlight, we provide a plug and play connector and all necessary hardware. Baja Designs offers an industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection. This kit comes preinstalled into a factory KTM Headlight mask (17-19). We offer this kit for the bikes that didn't come equipped with a headlight shell or for the customer who doesn't want to disassemble their factory unit.

Satisfaction Guarantee – 30-Day Money Back Guarantee

Limited Lifetime Warranty – Complete Purchase Protection

uService – Replaceable Lenses And Optics

ClearView – All The Light, Right Where You Need It

MoistureBlock – Waterproof, Rain Proof, Submersible

CopperDrive – Only LED Driven At 100 Percent

5000K Daylight – Less Driver Fatigue, Natural Color

12-9016 - This is an add on part that was designed to retain the factory dual sport bike's hi/low pin out for their bar switch. The Hi-Beam Indicator will always be on when used with our Hi/Low KTM relay harness. Unsure if your bike is powerful enough to run this kit? Check our chart found under the Tech info header.

 Note:

12-9016 - This is an add on part that was designed to retain the factory dual sport bike's hi/low pin out for their bar switch. The Hi-Beam Indicator will always be on when used with our Hi/Low KTM relay harness. Unsure if your bike is powerful

FITS

KTM 150 XC-W 2017-2019
KTM 250 EXC-F 2017-2019
KTM 250 XC-W TPI 2019-2019
KTM 300 XC-W TPI 2019-2019
KTM 300 XC-W TPI Six Days 2019-2019
KTM 350 EXC-F 2017-2019
KTM 450 EXC-F Six Days 2019-2019
KTM 500 EXC-F 2017-2019
INCLUDED WITH KIT:

SKU: 500003

Dimensions

Depth (in.) 3.650
Height (in.) 4.430
Length (in.) 4.430
Weight (lbs.) 2.450

Specifications

Amperage Rating (A) 3
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 4095
Description Driving/Combo; Clear
Housing Color Black
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Color Clear
Lighting Modes Hardcoated Polycarbonate
Light Quantity 1
Lens Material High Beam/Dimming Feature (20%)
Lighting Quantity 4
Lighting Type Cree XP-L LED
Lighting Technology Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type XL Pro LED Light Pod
Universal or Specific Universal
Wattage (W) 41.400
Wiring Harness Included No

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
